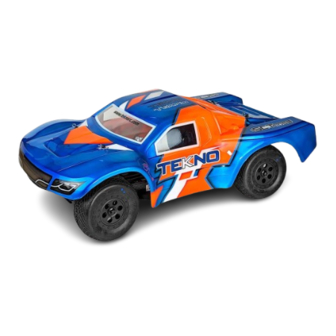

Tekno RC SCT410SL Building Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Tekno RC SCT410SL

Summary of Contents for Tekno RC SCT410SL

  • Page 2 Body reamer Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict con nes of a legally permitted RC track or facility.
  • Page 3 Bag A TKR6514HD *TKR6514 (Option) Center Di erential (overview) TKR5144B TKR6550 TKR6511 TKR6514HD TKR6515 TKR6514HD TKR6513X TKR6550 TKR6517 TKR7253 TKR1303 x4 TKR6514HD *TKR6514 (Option) Step Step TKR6550 TKR6550 TKR6517 TKR6514HD TKR6513X TKR5144B TKR6511 Grease Note: Apply grease to the groove where the o-ring is placed as well as the o-ring itself.
  • Page 4 Bag B TKR6514HD *TKR6514 (Option) Front and Rear Di erential (overview) TKR5144B TKR6550 TKR6511 TKR6514HD TKR6515 TKR6514HD TKR6513X TKR6550 TKR6517 TKR7221 TKR1303 x4 TKR6514HD *TKR6514 (Option) TKR6550 Step Step TKR6550 Repeat for rear di Repeat for rear di TKR6517 TKR6514HD TKR5144B TKR6513X TKR6511...
  • Page 5 Bag C TKR1402 TKR6526C Step Steering/Bulkhead Assembly TKR1402 TKR6526C TKR6526C TKR6207 *TKR6560A (Option) TKRBB040725 TKR1221 Step Thread TKRBB040725 Lock TKRBB040725 TKR6207 Note: Use a 5.5mm wrench (TKR1119) here to assist in TKR6627 tightening this assembly. TKRBB040725 TKR6207 TKR6627 TKR1221 TKR1602 TKR6597HD Step Step...
  • Page 6 Bag D Rear Bulkhead Assembly TKR1403 Step Step Thread Lock TKR6590 TKR1602 TKR6597HD *TKR6597 (Option) TKR7222 TKRBB05114 TKR6519B TKRBB05114 Note: Screw the TKR1402’s all the way down, then back o 1/4 turn. DO NOT OVER-TIGHTEN. Step TKRBB10154 TKR6519B Grease TKR1301 M2.5x6mm Flat Head Screw TKR1402 TKR1402...

  • Page 7: Rear End Assembly

    Bag E Rear End TKR6610 - 1.5mm Below options sold separately. Assembly *TKR6610 - 1.6mm *TKR6610 - 1.7mm *TKR6610- 1.8mm *TKR6610- 1.9mm Step (Option) TKR6547 TKR1601 Note: Do not over-tighten. (”C” Block) Step Stock Position Note: With center dot inserts, Anti-Squat = 1° TKR6590 TKR1463 Thread...
  • Page 8 Bag F Rear Hub/CVA Assembly Grease TKR6856 TKR6212 TKR6576 TKR7070 TKR7272 TKR1221 TKR6576 Step TKR6856 TKRBB10154 TKR6856 Thread Lock TKR1211 TKRBB06124 TKR6576 TKR5571M *TKR5571A *TKR1654X (+1mm) TKR1609 *TKR1654 (+1mm) Note: These screws (Option) only need to be HUB INSERTS snug. Do not over-tighten.
  • Page 9 Bag F Rear Camber Links Left Right TKR6253B TKR7250 TKR7250 TKR6253B TKR6253B Step Build Tip: Use some grease or Chapstick on the threads to help prevent “pop-o ” when Some Adjustment Note: Notch always adjustments are being made. goes on left side of vehicle. May be Needed Build Note: Hold the turnbuckle stationary with pliers and push the rod end hard onto the...
  • Page 10 Bag F Rear Tower Step TKR1405 Step TKR1411 TKR7038 TKR1405 M3x14mm Button Head Screw TKR1411 M3x25mm Button Head Screw Stock position is 1/D...
  • Page 11 Bag G Front End TKR6624 - 1.5mm Below options sold separately. *TKR6624 - 1.6mm Assembly *TKR6624 - 1.7mm *TKR6624- 1.8mm *TKR6624- 1.9mm TKR6547 (Option) Step TKR1601 Note: Do not over-tighten. (”B” Block) TKR1409 TKR6541HD TKR6544B Stock Position Note: With center dot down inserts, Kick Up = 10°...
  • Page 12 Bag H Step Front Spindle/CVA Assembly Note: These optional TKR1403 steering stop screws can help with erratic TKR6856 steering. They provide Grease TKR6553X a mechanical limit to the steering throw and TKR1400 TKR6669B can make the car *TKR6669A easier to drive. They TKR7272 *TKR6669C are recommended in...
  • Page 13 Bag I TKR6253B Front Camber Links TKR6253B TKR6253B & Steering Links TKR6253B Right Step TKR6250 Left TKR6250 Left TKR6250 TKR6253B Build Tip: Use some grease or Chapstick Right on the threads to help prevent “pop-o ” when TKR6253B TKR6250 adjustments are being made. Build Note: Hold the turnbuckle stationary with pliers and push the rod end hard onto the TKR6253B...
  • Page 14 Bag I TKR1211 Front Camber Plate/Tower TKR7281B Step TKR1211 TKR6527B TKR6527B Note: Always press Step on with T logo visible. TKR1405 x 2pcs TKR1403 TKR1211 M3 Lock Nut Flange Black WASHERS TKR1403 M3x10mm Button Head Screw TKR1405 M3x14mm Button Head Screw Stock positions shown...
  • Page 15 Bag J A Block Inset Front/Center Assembly Step BLOCK BLOCK Note: It is nessesary to slightly loosen both screws holding TKR7001 the A block in place before attaching the front clip to the chassis. This is due to the fact that the A block is now keyed into the front of the chassis.
  • Page 16 Bag J TKR6634 Center/Rear TKR6634 Assembly TKR1402 TKRBB10154 Step TKRBB10154 Thread TKR6634 Lock *TKR6635C (Option) TKR7080 Step Use with Use with Use with No Riser Step 1mm Riser 2mm Riser (stock setting) TKR1211 Same / Reversed Note: Use just the long brace for less flex or just the short brace for the most flex.
  • Page 17 Bag K Step Step Step Front Shock Assembly Thread Lock Refer to filling Step TKR1245 Note: Do not instructions on over-tighten page 19 during this step. TKR6705E *TKR6731 *TKR6732 *TKR6735 *TKR6736 *TKR6737 *TKR6738 *TKR6739 TKR6780 Note: 1.1mm *TKR6740 piston with (Option) TKR6712 writing up.

  • Page 18: Rear Shock Assembly

    Bag L Step Step Step Rear Shock Thread Assembly Lock Refer to filling TKR1245 Step instructions and oil Note: Do not recommendation over-tighten on page 19 TKR6705E during this step. *TKR6731 TKR6780 *TKR6732 *TKR6735 TKR6712 *TKR6736 *TKR6712A *TKR6737 (Option) *TKR6738 *TKR6739 Note: 1.2mm *TKR6740...
  • Page 19 Shock Filling Instructions For both front and rear shocks We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3. By the time you've finished step 2 on the last shock, the first one will be ready for step 3. Step 1.

  • Page 20: Final Assembly

    IMPORTANT RADIO SETUP TIPS, MUST READ: increase the chance of The Tekno RC SCT410SL is highly tunable, but can be very premature servo failure. aggressive depending on track conditions and tires used. To help with this, we recommend that you are well informed about setting up your Steering EPA, Servo Speed, Dual Rate, and Exponential Curves.
  • Page 21 Bag M Antenna Final Assembly TKR1609 Tube TKR5126 Step TKR6586 TKR1323 Note: Servo horn orientation. Actual Size Step TKR6526C Step 3.00mm *TKR6563A (Option) Note: Always press on with T logo visible. TKR6207 TKR6253B TKR5238 Note: TKR6253B Rod End orientation. Note: Only this angled link can be installed both ways.
  • Page 22 Bag N TKR1403 Thread TKR1403 TKR1402 Lock Final Assembly TKR6634 *TKR6598C TKR6634 (Option) *TKR6635C TKR5230 (Option) Step TKR7035 Step TKR1323 M3x10mm Flat Head Screw TKR1402 M3x8mm Button Head Screw TKR1403 M3x10mm Button Head Screw TKR1323 x8pcs TKR5230 M3x18 Threaded Rod Front/Rear Body Mounts TKR1405 Bag O...
  • Page 23 Bag O “R” positioned to the rear. Body Mounts/ Front Bumper Note: Use body mount assemblies TKR1405 x 4pcs from previous page. Step “F” positioned to the front TKR1405 x 4pcs TKR7203 Step TKR1411 Step TKR7203 TKR1323 M3x10mm Flat Head Screw TKR1405 M3x14mm Button Head Screw TKR1411...

  • Page 24: Front Bumper

    Bag O Front Bumper Step TKR1401 M3x6mm Button Head Screw TKR1405 TKR1405 M3x14mm Button Head Screw TKR1401 Bag P Final Assembly Thumb Screw Assembly TKR6280 TKR5125 TKR7038 Step *TKR6563A (Option) Step Tires/Wheels (not included) *Wheels: TKR2220 TKR1214 (Option) *TKR1215 (Option) TKR1214 TKR1214 *TKR1215...
  • Page 25 TKR7000 - SCT410SL 1/10th 4x4 Lightweight Short Course Truck Kit Parts List Di erential List TKR5125 - O-Ring (ESC tray, 3pcs) TKR5144B - Di erential O-Rings (2022 spec, fits all TEKNO di s, 6pcs) TKR5126 - Antenna tube (universal, w/ caps, 5pcs)

  • Page 26: Setup Information

    Set Up Information The purpose of making adjustments is to make the car go faster around the track, or to make it more controllable, or both if possible. A car that's easier to drive should produce lower, more consistent lap times. It will also inspire more confidence in the driver, which is always good when nerves start getting the best of you.
  • Page 27 3800kv 19 tooth 21 tooth able to slightly rock the spur gear back and forth without moving the pinion gear. Tekno RC is not responsible for 4300kv 17 tooth 19 tooth damage done to your electronic equipment or gears due...

  • Page 28: Radio Information

    Please read thoroughly The Tekno RC SCT410SL is highly tunable, but can be very aggressive depending on track conditions and tires used. To help with this, we recommend that you are well informed about setting up your Steering End Points (EPA), Dual Rate (D/R), Exponential Curves, and Servo Speed.
  • Page 29 Maintenance: Performing regular maintenance will greatly improve your on track consistency and also extend the life of your vehicle. Going through critical areas of the vehicle regularly will also allow you to find possible issues before they become a problem that may cost you a race. Follow the guidelines below for maximum performance. Bearing Maintenance: Bearings should always be smooth and free in order to preform their function.
  • Page 30 Box Stock INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY WASHERS SHIM TKR6218 WASHERS TKR6207 WASHERS SCREW SHIM FRONT CENTER REAR -2° RIDE HEIGHT: CAMBER: 18° 0° CASTER: SWEEP: 10°...
  • Page 31 INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY WASHERS SHIM WASHERS WASHERS SCREW SHIM FRONT CENTER REAR RIDE HEIGHT: CAMBER: CASTER: SWEEP: KICK UP: TOE: PINION / SPUR: SWAY BAR: DROOP: WASHERS...
  • Page 32 Tekno RC 10755 Scripps Poway Pkwy #598 San Diego CA 92131...
