Tekno RC ET410.2 Building Instructions

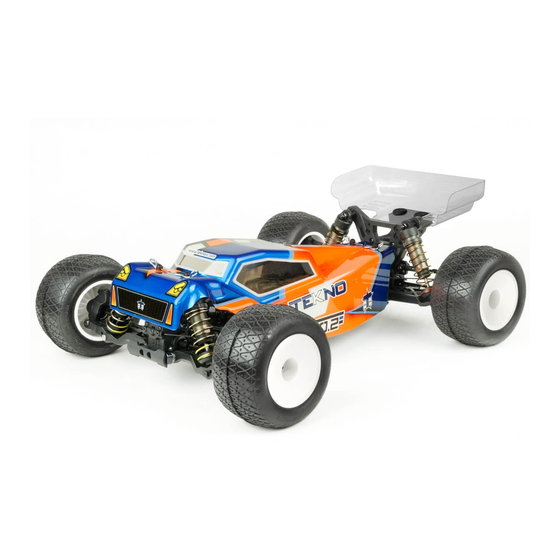

Et410.2 1/10th scale 4wd competition electric truggy kit
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ET410.2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tekno RC ET410.2

Summary of Contents for Tekno RC ET410.2

  • Page 2 Body reamer Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict con nes of a legally permitted RC track or facility.
  • Page 3 Bag A TKR6514HD *TKR6514 Center Di erential (Option) (overview) TKR5144 TKR6550 TKR6511 TKR6514HD TKR6515 TKR6514HD TKR6513X TKR6550 TKR6517 TKR7253 TKR1303 x4 TKR6514HD *TKR6514 (Option) Step Step TKR6550 TKR6550 TKR6517 TKR6514HD TKR6513X TKR5144 TKR6511 Grease Note: Apply grease to the groove where the o-ring is placed as well as the o-ring itself.
  • Page 4 Bag B TKR6514HD *TKR6514 (Option) Front and Rear Di erential (overview) TKR5144 TKR6550 TKR6511 TKR6514HD TKR6515 TKR6514HD TKR6513X TKR6550 TKR6517 TKR7221 TKR1303 x4 TKR6514HD *TKR6514 (Option) TKR6550 Step Step TKR6550 Repeat for rear di Repeat for rear di TKR6517 TKR6514HD TKR5144 TKR6513X TKR6511...
  • Page 5 Bag C TKR1402 TKR6526C Step Steering/Bulkhead Assembly TKR1402 TKR6526C TKR6526C TKR6207 *TKR6560A TKRBB040725 (Option) Step TKR1221 Thread TKRBB040725 Lock TKRBB040725 TKR6208 Note: Use a 5.5mm wrench (TKR1119) here to assist in TKR6627 tightening this assembly. TKR6208 TKRBB040725 TKR1221 TKR6627 TKR1602 TKR6597HD Step Step...
  • Page 6 Bag D Rear Bulkhead Assembly TKR1403 Step Step Thread Lock TKR6590 TKR1602 TKRBB05114 TKR6597HD *TKR6597 TKR7222 (Option) TKR6519B TKRBB05114 Note: Screw the TKR1402’s all the way down, then back o 1/4 turn. Step TKRBB10154 TKR6519B Grease TKR1301 M2.5x6mm Flat Head Screw TKR1402 TKR1402 TKR1402...

  • Page 7: Rear End Assembly

    Bag E Rear End TKR6611 - 1.4mm Below options sold separately. Assembly *TKR6611 - 1.0 - 1.4mm *TKR66110 - 1.5 - 1.9mm (Option) Step TKR6547 TKR1601 Note: Do not over-tighten. (”C” Block) Step Stock Position Note: With center dot TKR6590 TKR1463 inserts, Anti-Squat = 2°...
  • Page 8 Bag F Rear Hub/CVA Assembly TKR6212 Grease TKR6856 TKR6576 TKR6270R TKR7272 TKR1221 TKR6576 Step TKR6856 TKRBB10154 TKR6856 Thread TKR1211 Lock TKRBB06124 TKR6576 TKR1229 TKR5571M *TKR5571A *TKR1654X (+1mm) TKR1609 (Option) Note: These screws only need to be HUB INSERTS snug. Do not over-tighten.
  • Page 9 Bag F Rear Camber Links Left Right TKR6253B TKR7250 TKR7250 TKR6253B TKR6253B Step Build Tip: Use some grease or Chapstick on the threads to help prevent “pop-o ” when Some Adjustment Note: Notch always adjustments are being made. goes on left side of vehicle. May be Needed Build Note: Hold the turnbuckle stationary with pliers and push the rod end hard onto the...
  • Page 10 Bag F Rear Tower/Wing Mount Step TKR1405 Step TKR6546B TKR1411 TKR1405 TKR6538 TKR1405 M3x14mm Button Head Screw TKR1411 M3x25mm Button Head Screw Stock positions shown...
  • Page 11 Bag G Front End TKR6625 - 1.4mm Below options sold separately. *TKR6625 - 1.0 - 1.4mm Assembly *TKR6624 - 1.5 - 1.9mm (Option) TKR6547 Step TKR1601 Note: Do not over-tighten. (”B” Block) TKR1409 TKR6541HD Thread Lock TKR6544B Stock Position Note: With center dot TKR1601 inserts, Kick Up = 10°...
  • Page 12 Bag H Spindle Arms Compatibility Step (wheels) (stock hex) (+1mm) (+2mm) AE Stadium Truck B,C,D Front Spindle/CVA Assembly Note: These optional Traxxas SC F/R A,B,C,D A,B,C,D A,B,C,D steering stop screws *Arm lengths = A: 16mm, B: 17mm, C: 18mm, D: 19mm can help with erratic steering.
  • Page 13 Bag I TKR6253B Front Camber Links TKR6253B & Steering Links TKR6250 TKR6253B TKR6253B Right Step TKR6250 Left Left TKR6253B TKR6250 Build Tip: Use some grease or Chapstick TKR6250 Right on the threads to help prevent “pop-o ” when adjustments are being made. TKR6253B Build Note: Hold the turnbuckle stationary TKR6253B...
  • Page 14 Bag I TKR1211 Front Camber Plate/Tower TKR7281B TKR1405 x 4pcs Step TKR1211 TKR7210 TKR6527B TKR6527B Note: Always press Step on with T logo visible. TKR1405 x 4pcs TKR1403 TKR1211 M3 Lock Nut Flange Black TKR1403 M3x10mm Button Head Screw TKR1405 M3x14mm Button Head Screw Stock positions shown...
  • Page 15 Bag J A Block Inset Front/Center Assembly Step BLOCK BLOCK Note: It is nessesary to slightly loosen both screws holding the A block in place before attaching the front clip to the chassis. This is due to the fact that the A block is now keyed into the front of the chassis.
  • Page 16 Bag J TKR6634 Center/Rear Assembly TKR6634 TKR1402 Step TKRBB10154 TKR6634 Thread TKRBB10154 Lock *TKR6635C (Option) TKR6600 Step Use with Use with Use with No Riser Step 1mm Riser 2mm Riser (stock setting) TKR1211 Same / Reversed Note: Use both rear braces for the least chassis flex.
  • Page 17 Bag K Step Step Step Front Shock Assembly Thread Lock Refer to filling Step TKR1245 instructions and oil Note: Do not recommendation over-tighten on page 19 during this step. TKR6705E *TKR6735 *TKR6739 *TKR6740 (Option) TKR6780 Note: 1.1mm piston with writing up. TKR6712 *TKR6712A (Option)

  • Page 18: Rear Shock Assembly

    Bag L Step Step Step Rear Shock Thread Assembly Lock Refer to filling TKR1245 Step instructions and oil Note: Do not recommendation over-tighten on page 19 TKR6705E during this step. *TKR6735 TKR6780 *TKR6739 *TKR6740 TKR6712 (Option) *TKR6712A (Option) Note: 1.2mm piston with writing up.
  • Page 19 Shock Filling Instructions For both front and rear shocks Note: Kit shock oil is suited for ~75°F (~24°C). If ambient temperature changes more than ~10°F (~5°C), adjust oil to suit. We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3. By the time you've finished step 2 on the last shock, the first one will be ready for step 3.

  • Page 20: Final Assembly

    IMPORTANT RADIO SETUP TIPS, MUST READ: The Tekno RC ET410.2 is highly tunable, but can be very aggressive depending on track conditions and tires used. To help with this, we recommend that you are well informed...
  • Page 21 Bag M Final Assembly TKR1523 Thread Lock TKR1221 TKR1523 TKR1221 Note: MESH SHOULD BE AS TIGHT AS POSSIBLE WITHOUT BINDING. Step Note: Refer to page 20 or 26 for a recommended pinion Pinion/Set screw chart to best suit your motor. Thread (not included) Lock...
  • Page 22 Bag M Actual Size Step 3.00mm Note: Servo horn orientation. Final Assembly TKR6526B *TKR6563A (Option) Note: Note: Always press Rod End orientation. on with T logo visible. TKR6207 TKR6253B TKR5238 Step TKR6253B Note: Only this angled link Step can be installed both ways. TKR5126 TKR1601 Cap Head Screw...
  • Page 23 Bag N Final Assembly Step TKR1403 TKR1403 TKR1403 TKR1402 Thread Lock TKR6634 TKR6634 *TKR6598C *TKR6635C (Option) TKR5230 (Option) TKR1321 M3x6mm Flat Head Screw TKR1402 M3x8mm Button Head Screw TKR1403 M3x10mm Button Head Screw TKR5230 M3x18 Threaded Rod WING OPTIONS Bag O Wing TKR1329 TKR1329...
  • Page 24 Bag O TKR6686 Body/Tires TKR6686 Step TKR6686 Thumb Screw Assembly Step TKR6280 TKR6586 *TKR6503C (Option) TKR5125 Wheels/Tires (not included) BATTERY INSTALLATION TKR1212 TKR1212 TKR7201 Step TKR1235 Note: For hook and loop tape placement. Look for indentations TKR1235 on the side walls of the body. TKR1235 Body Clip TKR1235...

  • Page 25: Setup Information

    Set Up Information The purpose of making adjustments is to make the car go faster around the track, or to make it more controllable, or both if possible. A car that's easier to drive should produce lower, more consistent lap times. It will also inspire more confidence in the driver, which is always good when nerves start getting the best of you.
  • Page 26 When setting your mesh you want have it set as (2 cell) 7.5T 15 tooth 16 tooth tight as possible, without any binding. Tekno RC is not 8.5T 16 tooth 17 tooth responsible for damage done to your electronic equip-...

  • Page 27: Radio Information

    Please read thoroughly The Tekno RC ET410.2 is highly tunable, but can be very aggressive depending on track conditions and tires used. To help with this, we recommend that you are well informed about setting up your Steering End Points (EPA), Dual Rate (D/R), Exponential Curves, and Servo Speed.
  • Page 28 Maintenance: Performing regular maintenance will greatly improve your on track consistency and also extend the life of your vehicle. Going through critical areas of the vehicle regularly will also allow you to find possible issues before they become a problem that may cost you a race. Follow the guidelines below for maximum performance. Bearing Maintenance: Bearings should always be smooth and free in order to preform their function.
  • Page 29 TKR6541HD - Hinge Pin Brace (CNC, 7075, EB/ET410.2, B Block) TKR1301 - M2.5x6mm Flat Head Screws (black, 10pcs) TKR6542 HD - Hinge Pin Brace (CNC, 7075, EB/ET410.2, C Block) TKR1303 - M2.5x10mm Flat Head Screws (black, 10pcs) TKR6543 HD - Hinge Pin Brace (CNC, 7075, EB/ET410.2, D Block)
  • Page 30 Box Stock INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY WASHERS SPACERS WASHERS WASHERS FRONT CENTER REAR -2° RIDE HEIGHT: CAMBER: 18° 0° CASTER: SWEEP: 10° 1° out PINION / SPUR: KICK UP: TOE:...
  • Page 31 INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY WASHERS SPACERS WASHERS WASHERS FRONT CENTER REAR RIDE HEIGHT: CAMBER: CASTER: SWEEP: PINION / SPUR: KICK UP: TOE: SWAY BAR: DROOP: MOTOR: ESC:...
  • Page 32 Tekno RC 10755 Scripps Poway Pkwy #598 San Diego CA 92131...
