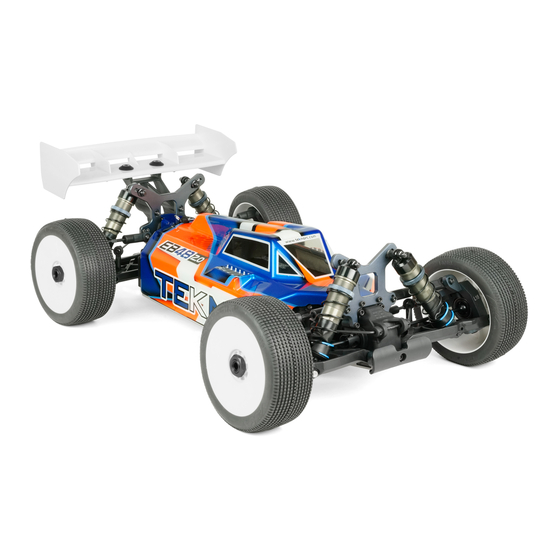

  • Page 2 4mm turnbuckle wrench (TKR1103) - 5.5/7.0 two sided wrench (TKR1119) Disclaimer: Tekno RC is not responsible or liable for any property or personal damage, loss, or injury incurred as a result of using this product. This kit is meant for use by persons 14 years of age or older and in the strict con nes of a legally permitted RC track or facility.
  • Page 3 Bag A Center Di erential TKRBB08165 (overview) TKR9143 TKR9114 *TKR5114XB (option) TKR9150 TKR9115 TKR9150 TKR5145B TKR5145B TKR9114 TKR9149 TKR9114 TKR5144 TKRBB08165 TKR9237 *TKR9117 TKR1325 x4 (option) TKR9114 *TKR5114XB (option) TKR9150 Step Step TKR5145B TKR9150 TKR9114 TKR5144 TKR9149 Note: Apply grease to the recess inside TKR9115, TKR9115 where the o-ring is placed...
  • Page 4 Bag B TKR9114 *TKR5114XB Front and Rear Di erential (option) (overview) TKR9143 TKR5144 TKR9150 TKR9115 TKR5145B TKR9150 TKR5144 TKR9149 TKRBB08165 TKR5145B TKR9151 TKR1325 x4 TKR9114 *TKR5114XB (option) TKR9150 Step Step TKR5145B Repeat for rear di Repeat for rear di TKR9114 TKR9150 TKR5144 Note: Apply grease to the...
  • Page 5 Bag C Front Gearbox (overview) TKR9012 TKR9268 TKR1603 *TKR9268C (option) TKR1222 TKR1212 TKRBB05145 TKR5075 TKR8727 TKR1226 TKR9153 TKR9012 TKRBB05114 TKR1525 x4pcs TKR9017 TKR1301 TKR1525 TKR1301 TKR1603 Step Step Thread Lock Grease TKR9012 Note: Apply a small amount of black grease TKR5075 to the ring gear teeth.
  • Page 6 Bag D Rear Gearbox (overview) TKR1603 TKR9016 TKR9095 TKR1222 TKRBB05145 TKR8727X TKR1212 TKR9181 TKR9153 TKR1525 *TKR9181T TKR1226 (option) TKRBB05114 TKR1529 TKR9017 TKR9181 TKR9016 TKR1301 TKR1301 TKR1525 TKR9269S *TKR9269SC TKR1525 TKR1529 (option) TKR1226 Thread Step Step Lock TKRBB05114 TKR1603 Grease Note: Apply TKR9095 a small amount of TKR9016...
  • Page 7 Bag E Rear End Optional Sway Bars Assembly (sold separately) *TKR9190 - 2.2mm *TKR9192 - 2.3mm TKR9017 *TKR9193 - 2.4mm *TKR9195 - 2.6mm Step *TKR9196 - 2.7mm TKR1601 *TKR9197 - 2.8mm *TKR9198 - 2.9mm *TKR9199 - 3.0mm TKRBB050825 TKR9017 TKR9194 - 2.5mm (”C”...
  • Page 8 Bag F Rear Hub/Camber Link TKR8073 Grease Step TKR9040 TKR8072 *TKR9087 TKR9040 (Option) TKR9166 TKR5071 TKR8070 TKR8073 Thread TKRBB15214 Lock TKR9166 TKRBB08165F TKR1603 TKR5071 *TKR5071B (+1mm) *TKR5071C (+2mm) Note: Make two of these assemblies. *TKR5071X (light) (Option) HUB INSERTS ARM INSERTS 1 (L+) (Right Arm) 2 (L)
  • Page 9 Bag F TKR8052A TKR5187B Rear Camber Links Left Right Step TKR5187B TKR8052A TKR8052A TKR9050 TKR5187B TKR9050 TKR8052A TKR5187B Build Tip: Use some grease or Chapstick Note: Notch always Actual Size on the threads to help prevent “pop-o ” when goes on left side of vehicle. adjustments are being made.
  • Page 10 Bag G Front End Optional Sway Bars Assembly (sold separately) *TKR9080 - 2.0mm *TKR9081 - 2.1mm TKR9017 *TKR9082 - 2.2mm *TKR9084 - 2.4mm Step *TKR9085 - 2.5mm TKR1601 *TKR9086 - 2.6mm *TKR9088 - 2.7mm TKRBB050825 *TKR9089 - 2.8mm TKR9017 TKR9083 - 2.3mm (”B”...
  • Page 11 Bag H DO NOT SKIP Step Front CVA / Spindle & THIS STEP! TKR1221 Carrier Assembly Note: These are steering stop screws. They provide a mechanical limit to the steering throw and make Step the car easier to drive by greatly improving the Grease TKR1401 consistency of the steering.
  • Page 12 Bag H Front Camber Links TKR8052A TKR5187B Left Right Step TKR5187B TKR8052A TKR9049 TKR9049 TKR8052A TKR5187B TKR8052A TKR5187B Front Camber Links Build Tip: Use some grease or Chapstick on the threads to help prevent “pop-o ” when Note: Notch always Actual Size adjustments are being made.

  • Page 13: Steering Assembly

    Bag I Step Steering TKR5103 TKR1403 Assembly TKR1403 Step Note: This piece is included TKR8100B in the kit, and can be used TKRBB050825 in the place of the servo saver assembly, however it can damage your servo. TKRBB050825 Run at your own risk. TKR9104 TKR9104 TKR5101X...
  • Page 14 Bag J Front End Assembly TKR1443 Step TKR1443 Step TKR9181 Thread Lock TKR9104 TKR1322 TKR9102A TKR1201 TKR1443 Step TKR1201 TKR1221 TKR1201 X 4pcs M3 Lock Nut Black TKR1221 X 4pcs TKR1221 M3x8mm Washer TKR1250 M3 Steering Link Screw TKR1250 TKR1322 M3x8mm Flat Head Screw TKR1443 TKR1250...
  • Page 15 Bag K TKR1444 Front/Center Assembly Step Note: Since the bumper is keyed into the chassis, you must back it o before installing front clip. TKR9062 TKR9002 Thread Lock TKR1349 TKR1324 TKR1346 TKR1343 TKR1344 TKR1344 Step TKR9062 TKR9010 TKR1324 TKR9262 M3x12mm Flat Head Screw TKR1343 M4x10mm Flat Head Screw TKR1344...

  • Page 16: Rear Assembly

    Bag K Rear Assembly Step TKR9062 TKR1528 TKR9062 Step TKR1444 TKR1324 M3x12mm Flat Head Screw TKR1344 M4x12mm Flat Head Screw TKR1346 M4x15mm Flat Head Screw TKR1349 M4x20mm Flat Head Screw TKR1344 TKR1444 M4x12mm Button Head Screw TKR1346 TKR1324 TKR1349 TKR1528 M3x18mm Cap Head Screw...
  • Page 17 Bag L Step Step Step Front Shock Assembly TKR1200 Step TKR6169 *TKR6160 *TKR6163 *TKR6168 TKR8730 (Option) TKR6017 TKR8702 *TKR6017T *TKR6003 (Option) Refer to filling *TKR6003B instructions on (Option) page 19 during this step. TKR6040 Note: Use green *TKR6035 slime or oil on *TKR6036 shock shaft *TKR6037...

  • Page 18: Rear Shock Assembly

    Bag M Step Step Step Rear Shock Assembly TKR1200 Step TKR6169 *TKR6160 *TKR6163 *TKR6168 TKR8730 (Option) TKR6017 TKR8702 Note: Bottom *TKR6017T *TKR6003 guide is longer (Option) Refer to filling *TKR6003B in the rear instructions on (Option) shocks. page 19 during this step.
  • Page 19 Shock Filling Instructions For both front and rear shocks We've found it's easiest to complete steps 1 & 2 on each shock before moving on to step 3. By the time you've finished step 2 on the last shock, the first one will be ready for step 3. Step 1.
  • Page 20 Bag N TKR1525 TKR1221 ESC/Radio Tray install TKR1525 TKR1525 TKR1221 TKR1221 Step Note: Servo (not included) TKR1221 Note: We recommend using a servo with at least 300 oz/in torque. TKR9065 TKR5126 Note: Receiver (not included) TKR1601 Thread Lock TKR9065 TKR1401 Step TKR1325 TKR1325 x 4pcs...
  • Page 21 Bag N TKR9019 Battery Tray/Mud Guard TKR9026 TKR9026 TKR9026 Note: These side strap mounts double as chassis braces that can be added or removed to tune chassis flex. They a ect flex through the middle of the car and are recommended to be run under most conditions.

  • Page 22: Steering Linkage

    Bag O TKR1201 Actual Size Steering Linkage Step Step TKR9392 *TKR5253B TKR1221 (option) TKR5058A TKR5056 TKR5058A Note: A plastic steering servo horn is provided TKR5230 TKR1325 for convenience, however an aluminum steering servo horn is highly recommended. TKR5056 Step TKR1407 Servo Screw (not included) TKR1221...

  • Page 23: Final Assembly

    Bag P TKR1325 TKR1220 Final Assembly TKR1220 TKR9181 TKR9181 TKR8292W *TKR8292K *TKR8292Y Step (Option) Wing Hole Options TKR1201 (Use Dimples as Hole Cutting Guides) TKR1201 Most Downforce (Use as many holes as you see fit to fine tune the amount of downforce the wing creates.) Least Downforce Step...
  • Page 24 TKR9000 - EB48 2.0 1/8th 4WD Competition Electric Buggy Kit Parts List Hardware List TKR5049A – Pivot Balls (6.8mm, no flng, sway bar, shck ends, almnm, 4pcs) TKR1200 – M2.5 Locknuts (zinc finish, 10pcs) TKR5058A – Pivot Balls (5.8mm, no flange, brake/steering link, aluminum, 4pcs) TKR1201 –...

  • Page 25: Setup Information

    Setup Information The purpose of making adjustments is to make the car go faster around the track, or to make it more controllable, or both if possible. A car that's easier to drive should produce lower, more consistent lap times. It will also inspire more confidence in the driver, which is always good when nerves start getting the best of you.
  • Page 26 Setup Information (continued) Front: Changing front di oil a ects overall steering response. Thinner can increase o -power steering but the vehicle may be twitchy and harder to drive. Thicker can increase on power steering and stability. We recommend Di erentials 10k in the front di .
  • Page 27 Maintenance: Performing regular maintenance will greatly improve your on track consistency and also extend the life of your vehicle. Going through critical areas of the vehicle regularly will also allow you to find possible issues before they become a problem that may cost you a race. Follow the guidelines below for maximum performance. Bearing Maintenance: Bearings should always be smooth and free in order to preform their function.
  • Page 28 Box Stock INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY FRONT OF VEHICLE FULL WASHERS: TURNS WASHERS: WASHERS: FROM FULLY TIGHT (plate can be ipped) FRONT CENTER REAR -2°...
  • Page 29 INDOOR OUTDOOR SMALL MEDIUM LARGE MEDIUM HIGH SMOOTH BUMPY RUTTED LOOSE / LOAMY HARD PACKED BLUE GROOVE CLAY ASTRO DUSTY MUDDY FRONT OF VEHICLE FULL WASHERS: TURNS WASHERS: WASHERS: FROM FULLY TIGHT (plate can be ipped) FRONT CENTER REAR RIDE HEIGHT: CAMBER: CASTER BLOCK: SWEEP:...

  • Page 30: Radio Information

    Please read thoroughly The Tekno RC EB48 2.0 is built out of the box with a neutral setup but is highly tunable to your individual driving needs. Before you start changing your setup on the car itself, it’s best to ensure you’re getting the best setup out of your radio.
  • Page 31 Notes:...
