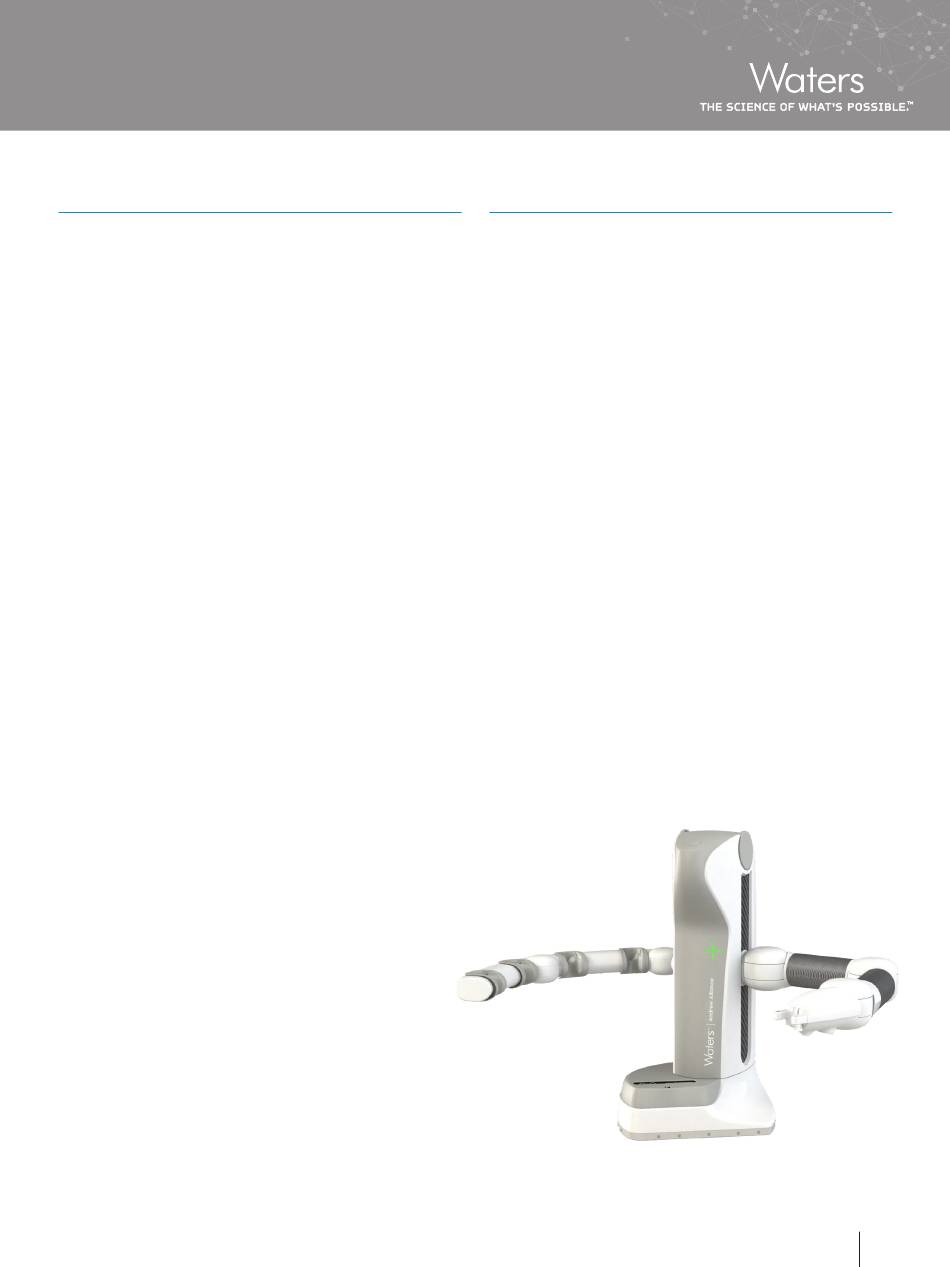

[ ANDREW+ ROBOT USER GUIDE ]

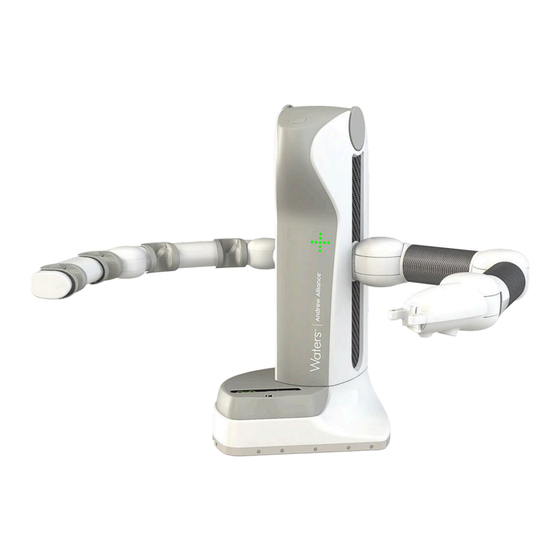

Andrew+ Robot User Manual
CONTENTS
I.
II.
TRADEMARKS
III.
IV.
V.
VI.
i.
Andrew + is delivered fully assembled and
I.
v. Liquid level detector
IX.
X.
ABOUT THIS MANUAL
This user manual is specially designed to detail the device's
functions and features.
Please read this manual before using the device to ensure
■
proper use and safety.
Please view this manual as part of the product and keep it
■
somewhere easily accessible.
Ensure adequate material resistance when using chemical
■
substances.
Descriptions are based on the default setting of the device.
■
Images and screenshots may differ in appearance from the
■
actual product.
Content may differ from the final product, or from software
■
provided by service providers or carriers, and is subject to
change without prior notice.
Waters is not liable for performance issues or
■
incompatibilities caused by misuse of this device.
1
