PAL-mOsm. can only produce an indicative reading of urine Osmolality and should not be used on any other fluids. For true
Measurements of Osmolality a freezing point Osmometer is recommended.
A reading of greater than 600 mOsmol/kgH
O points to the start of de-hydration, a reading of over 1000 mOsmol/kgH
2
consistent with de-hydration. The subject should drink water and not undergo prolonged strenuous exercise.
It is advisable to use mid-stream urine, collected in a suitable container from which a few drops can be
200-600 GOOD
transferred to the prism surface with a spoon or pasteur pipette. If extreme care and control is exercised
> 600 WARNING
it may be possible to direct the urine flow directly onto the measuring surface tipping the surplus away
> 1000 DANGER
before pressing "START". The sample stage may be run under a tap to clean it then wiped dry.
Automatic Temperature Compensation
The readings are corrected, based on the temperature of the prism, within the automatic temperature compensation range.
【Caution】
◇ Measurements may fluctuate with hot or cold samples. Wait for approximately 20 seconds to press the START button.
Measurements will stabilize once the instrument acclimates to the sample temperature.
Storage and Maintenance
Store the instrument in a dry place away
from direct sunlight. Exposure to humidity
and heat may damage the instrument.
The instrument is warranted for one year from the date of purchase. This warranty is void if the instrument shows evidence of the
following. Send the included batteries as well if they are still in use.
•
Having been disassembled by unauthorized personnel
•
Damages to the prism and/or sample stage
•
Water damage or having been dropped
Repair services are available for a fee after the warranty expires.
Contact an ATAGO authorized service center for service and support.
Please have the serial number information ready when contacting a service center.
Measurement range
0 to 1500 mOsmol/kgH
O
2
10.0 to 35.0℃
Resolution
10 mOsmol/kgH
O / 0.1℃
2
Accuracy
±20 mOsmol/kgH
O
2
See "Detailed explanation on Osmolality"
/ ±1℃
Automatic temperature 10 to 40℃
compensation range
Ambient temperature
10 to 40℃
range
Sample volume
At least 0.3mL
Measurement time
Approx. 3 seconds
Backlight
The backlight stays on for 30 seconds
after any button is pressed.
Patent Granted in Japan, United States, Germany, China and Taiwan.
TEL: 91-22-2854-4915 / 4071-3232
Headquarters: The Front Tower Shiba Koen,
customerservice@atago-india.com
23rd Floor 2-6-3 Shiba-koen, Minato-ku,
Tokyo 105-0011, Japan
TEL: 66-21948727-9 ,66-21171549
TEL: 81-3-3431-1943 overseas@atago.net
customerservice@atago-thailand.com
http://www.atago.net/
TEL: 55 16 3913-8400
TEL: 1-425-637-2107
customerservice@atago-brasil.com
customerservice@atago-usa.com
TEL: 39 02 36557267
customerservice@atago-italia.com
Clean and dry the sample stage thoroughly, following the
Store the unit away from direct sunlight at a stable
temperature with as little fluctuation as possible.
Repair and Warranty
•
Having been misused and/or operated outside the environmental specifications
•
Leakage from batteries other than those included with the unit
Specifications
Maximum number of
100
data history
Output
NFC Forum Type 4 Tag
ISO/IEC 14443 Type A
Output category :
Date Time, Osmolality. , Temp [degC]
(e.g.) 2017/08/17 09:30:45, 25, 20.4
Power supply
Two (2) AAA alkaline batteries
Battery life
Approx. 11,000 measurements
(when using alkaline batteries)
International
IP65
Protection class
Dimensions and weight
55 (W) x 31 (D) x 109 (H)mm, 100g (main unit only)
TEL: 86-20-38108256
info@atago-china.com
TEL: 7-812-777-96-96
info@atago-russia.com
TEL: 234-707-558-1552
atagonigeria@atago.net
TEL: 7-727-257-08-95
info@atago-kazakhstan.com
2006K Printed in Japan
4585-E08

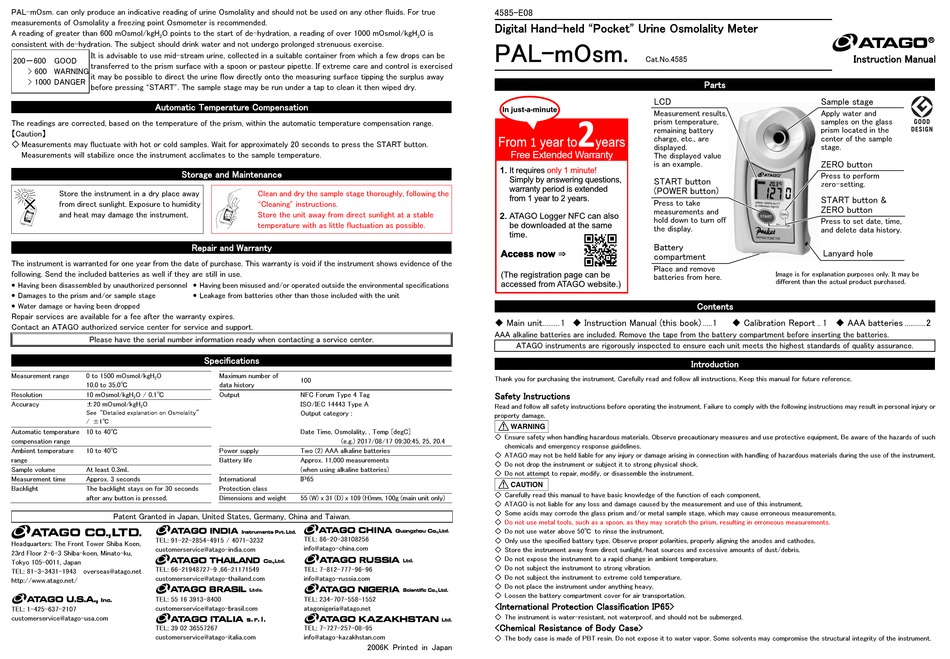

Digital Hand-held "Pocket" Urine Osmolality Meter
O is
2
PAL-mOsm.
Main unit ......... 1 Instruction Manual (this book) ..... 1
AAA alkaline batteries are included. Remove the tape from the battery compartment before inserting the batteries.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.
Safety Instructions
Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may result in personal injury or
property damage.
◇ Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be aware of the hazards of such
chemicals and emergency response guidelines.
◇ ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during the use of the instrument.
◇ Do not drop the instrument or subject it to strong physical shock.
◇ Do not attempt to repair, modify, or disassemble the instrument.
◇ Carefully read this manual to have basic knowledge of the function of each component.
◇ ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
◇ Some acids may corrode the glass prism and/or metal sample stage, which may cause erroneous measurements.
◇
Do not use metal tools, such as a spoon, as they may scratch the prism, resulting in erroneous measurements.
◇ Do not use water above 50℃ to rinse the instrument.
◇ Only use the specified battery type. Observe proper polarities, properly aligning the anodes and cathodes.
◇ Store the instrument away from direct sunlight/heat sources and excessive amounts of dust/debris.
◇ Do not expose the instrument to a rapid change in ambient temperature.
◇ Do not subject the instrument to strong vibration.
◇ Do not subject the instrument to extreme cold temperature.
◇ Do not place the instrument under anything heavy.
◇ Loosen the battery compartment cover for air transportation.
<International Protection Classification IP65>
◇ The instrument is water-resistant, not waterproof, and should not be submerged.
<Chemical Resistance of Body Case>
◇ The body case is made of PBT resin. Do not expose it to water vapor. Some solvents may compromise the structural integrity of the instrument.
Cat.No.4585
Parts
LCD
Sample stage
Apply water and
Measurement results,
prism temperature,
samples on the glass
prism located in the
remaining battery
charge, etc., are
center of the sample
displayed.
stage.
The displayed value
is an example.
ZERO button
Press to perform
START button
(POWER button)
START button &
Press to take
ZERO button
measurements and
hold down to turn off
Press to set date, time,
the display.
and delete data history.
Battery
Lanyard hole
compartment
Place and remove
Image is for explanation purposes only. It may be
batteries from here.
different than the actual product purchased.
Contents
Calibration Report .. 1 AAA batteries ........... 2
Introduction
Instruction Manual
