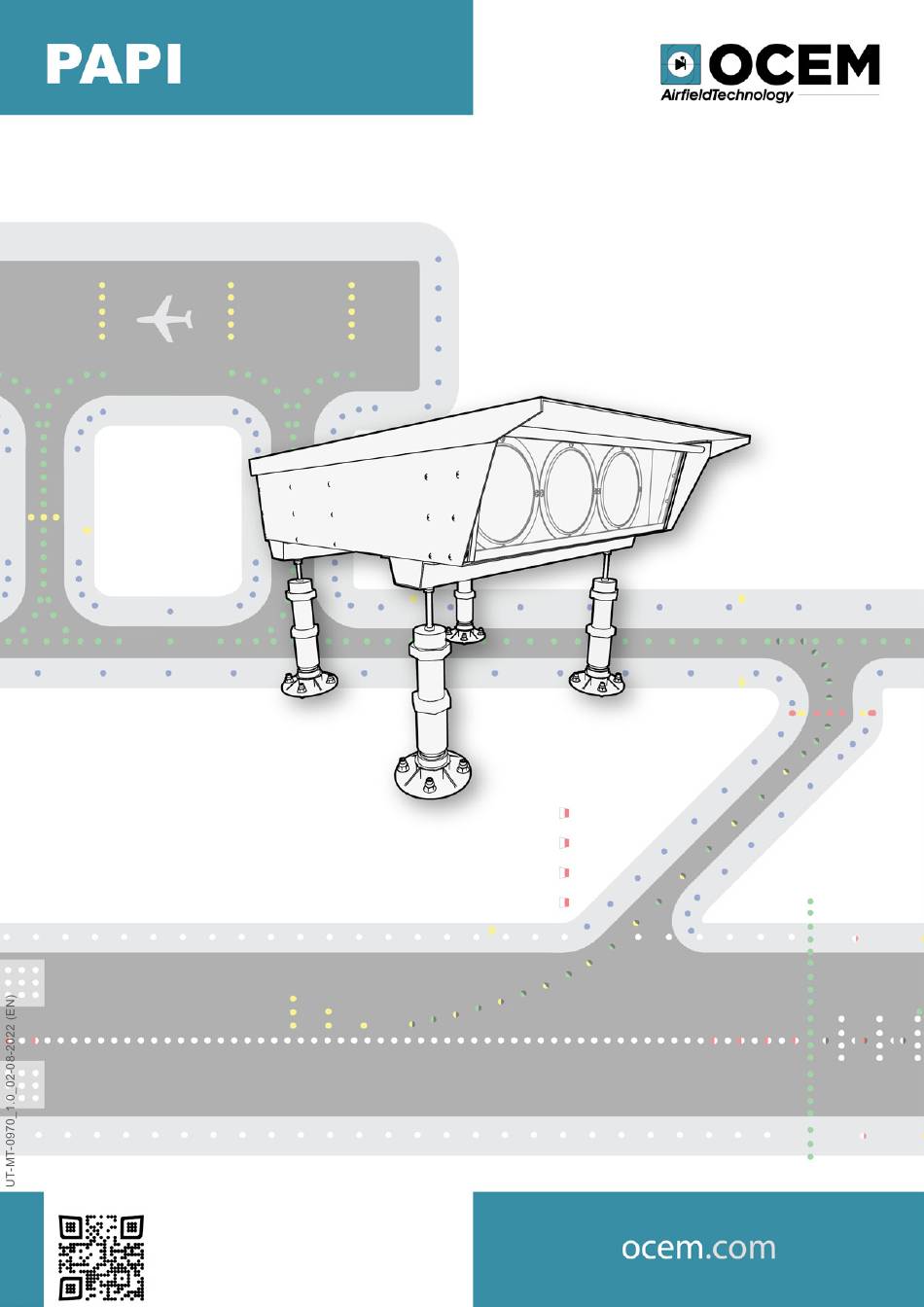

- Page 1 29acdb84-d07b-41e6-b3b5-3049609cfc5f Use and Maintenance Manual HALO Precision Approach Path Indicator FIXTURE FOR AIRPORTS-HELIPORTS HALOGEN LAMPS LOW MANAGEMENT COSTS LOW MAINTENANCE ocem...
- Page 2 Contact us OCEM AT +39 051 66 56 611 info@ocem.com Editions Revision Date Notes 02-08-2022 First edition...
-
Page 3: Table Of Contents
PAPI GENERAL INFORMATION Package content Manual reference guide Safety instructions Safety symbols 1.5 Definition of operator Limited warranty CE marking 1.8 Confidentiality, industrial property rights 1.9 Disposal 1.10 Article identification 1.11 Photo-biological risk FIXTURE DESCRIPTION 2.1 General characteristics Article number Wiring 2.4 Method of calculation of the installation parameter INSTALLATION 3.1 Fixture placement Foot assembly 3.3... - Page 4 PAPI Page intentionally left blank UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 5: General Information
PAPI GENERAL INFORMATION Package content The PAPI of OCEM Airfield Technology is an elevated signalling system PAPI type to indicate to approaching aircrafts the vertical position with respect to the optimal value. The device is designed in compliance with: ● ICAO Annex 14 - Volume I (Paragraph 5.3.5) and Aerodrome Design Manual (Part 4): Precision Approach Path indicator (PAPI) and Abbreviated PAPI (A-PAPI); ● CASA: Manual of Standards Part 139; ● NATO: Stanag 3316; ● ENAC (Italian Civil Aviation Authority): ENAC Airport Construction Regulation. Immediately check for visible damages of the container. Carefully remove the device and check for visible damages. Check the presence of all accessories that can be ordered separately (EMT 2” pipe) and any assembly tool (optionals). Before proceeding read all warnings on the packaging. -
Page 6: Manual Reference Guide
PAPI Manual reference guide This document contains all the information related to the equipment and describes the procedures to follow during the installation of the product and during ordinary maintenance. The document is indented for all operators that must intervene on the equipment. This document does not replace in any manner applicable laws, rules or regulations, included the standards FAA and ICAO. The precautions provided in the manual are always preceded by a symbol as illustrated below: Indicates the warnings, the notes, the suggestions and other points on which is intended to draw the attention of the reader. -
Page 7: Safety Symbols
PAPI Safety symbols The symbols illustrated in the following table are used in the user and maintenance manual and on the device. These symbols indicate the existence of any dangerous situations, to indicate obligations and prohibitions in relation to the situations that may represent an hazard for the operator or indicate the behaviour to adopt to minimize the risk for the operator. Warning signs Prohibition and obligation signs W001 | General warning sign P001 | General prohibition sign W004 | Laser beam M001 | General mandatory sign M002 | Refer to instruction manual/ W005 | Non-ionizing radiation booklet M005 | Connect an earth terminal to the W006 | Magnetic field ground W012 | Electricity... -
Page 8: Limited Warranty
Each change and/or tampering made to the product immediately terminates the warranty. OCEM Airfield Technology cannot be held responsible for any damage to items or persons deriving from the failure to comply with instructions relating to installation, use and maintenance of the product, and to the installation and storage environmental conditions stipulated by the Manufacturer or by applicable rules regarding electrical devices and systems. -
Page 9: Ce Marking
PAPI CE marking This equipment complies with the requirements of European legislation for the CE marking. The user should carefully read this document and respect all the requirements quoted. This equipment meet the requirements in relation to health and safety of the main EC directives, and in particular of the EMC Directive on electromagnetic compatibility (2014/30/EU) and of the LV Directive relating to electrical equipment designed for use within certain voltage limits (2014/35/EU). Confidentiality, industrial property rights The Customer needs to adopt the maximum confidentiality with respect to all the information of technical nature (including, by way of example and not exhaustively, plans, programmes, documentation, formulas, recipes, setting and correspondence) received by the Supplier or in any case assimilated or gained during the conclusion of the Contract of sale. Any right regarding intellectual and industrial property connected to equipment and to any other element included in the supplied Goods as indicated in the Contract remain exclusive property of the Supplier. Disposal At the end of use, the user must confer all the waste in suitable differentiated waste collection centres. It is the responsibility of the user the correct disposal of the equipment in accordance with the WEEE Directive and with the respective national laws in force at the time of disposal. These equipments must never be disposed of in the household waste. 1.10 Article identification On each equipment there is an identification plate of the article, where the article code is reported; on the plate there are additional data: the name of the model, employments or use, power supply features, any trademarks and/or marks that attest the agreement of the equipment to specific regulations or legislations. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual... -
Page 10: Photo-Biological Risk
PAPI 1.11 Photo-biological risk The fixtures PAPI are designed and manufactured in compliance with current regulations, but if used unsafely or without precautions, the light emitted by the fixture, reaching even high levels of intensity, can be harmful not only to those who use the light fixture locally, but for anyone within the light beam range. The optical radiation issued by the equipment does not present any particular photo-biological risks, however can be harmful. Don’t look directly inside the light source during high intensity operation. Wear appropriate personal protective equipment (goggles or similar protections). UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual... -
Page 11: Fixture Description
PAPI FIXTURE DESCRIPTION General characteristics The PAPI fixtures are designed for the purpose of providing visual guidance to aircrafts in the bichromatic approach flash signalling: ● Four-light PAPI: the system (in use in commercial and military airports) consists of 4 units each equipped with 2 or 3 lamps (200 W), current-powered in environments with temperatures between -55 °C [-67 F] and +55 °C [+131 F]. ● Two-light PAPI: the system (in use in commercial airports or heliports) consists of 2 units each equipped with 2 lamps (100 or 200 W), current-powered in environments with temperatures between -55 °C [-67 F] and +55 °C [+131 F]. The halogen lamps installed allow to minimize maintenance costs. Optics, made up of an aluminium parabolic reflector, a filter and a lens assure uniform intensity and the red/white rapid transition to provide the pilot with an accurate reporting on the glideslope approaching the runway. The PAPI fixture is a device able to offer in the same optics visible and infrared operating states. The fixtures, positioned on the left of the landing area, project stable light beams and depending on the approach angle there can be different combinations: Glideslope Glideslope PAPI A-PAPI ● ● ● ● Very high glideslope ● ● High glideslope ● ● ● ● Slightly high glideslope ● ● ● ● ● ● Appropriate approach glideslope Appropriate approach glideslope ... - Page 12 Design Manual (Part 4) NATO Stanag 3316 ENAC Airport Construction Regulation The fixtures PAPI described in this manual have been designed to be installed on the concrete basis of suitable dimension. The threaded fastening system must be installed in the right position. The supply circuits for the light(s) fixtures (one for each lamp) can be positioned within plastic or metallic pipes permanently laid in the ground, equipped with appropriate coupling devices.
- Page 13 PAPI The installation of a PAPI (or A-PAPI) system requires specific design correctly assessing the positioning, orientation and inclination of devices according to the characteristics of airfield-helipad: ● Conformation of the landing runway or of the helipad; ● The elevation of the installation points (compared with the threshold or to the centre of the platform TLOF); ● The approach angle; ● The minimum height of the line of sight of the pilot above the threshold or the helipad. If a structure is equipped with Instrument Landing System (ILS), it must be taken into consideration also the distance between the origin of the glide path and the threshold. The example shows the main measures to be evaluated for proper design of the PAPI (or A-PAPI) system: : Theoretical threshold - Distance of the optical axis : Elevation measurement of the point B : Distance between the centre of the landing runway/ : Actual threshold - Distance of the optical axis helipad and longitudinal axis of the unit : Actual threshold - Distance of the front support α: Elevation angle of the unit (compared with the : Actual elevation of the optical axis threshold) : Conventional actual elevation of the optical axis : Distance of the point A (in front of the unit)
- Page 14 PAPI The concrete base must respect all the indications for their proper implementation. For the proper installation of the PAPI system (optional) equipments are available for installation, pointing and fixtures adjustment: a template (1) for the positioning of the ground anchorage (diversified for the 2 or 3 lamps model), the threaded anchorage flanges (2) (2” 11-GAS), a linear level gauge (3) for the fixture alignment, an analogue clinometer (4) with related support bracket to adjust the units. For further information on the use of the mounting accessories, please refer to the respective manuals. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 15: Article Number
Number of lamps Two lamps unit Three lamps unit Type of installed lamp 100 W 6.6 A PK 30/d 200 W 6.6 A PK 30/d Option Front glass (always present) Flexible sheathing for power cable protection Anti-condensation heater NATO system configurable only with 3 lamps unit Heliport system (ICAO) configurable only with 2 lamps unit Lamp 100 W available only for PAPI systems for Heliport In the example 401CP - 2 - 20 - 18-16: 4 light units PAPI system for airports compliant with ICAO standard. 2 200 W lamps fixtures (6.6 A PK 30/d), equipped with protective front glass and adaptable support system (note: Pole EMT 2” not provided, to be ordered separately). System equipped with flexible sheathings for power cable protection. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual... -
Page 16: Wiring
In case of single PAPI system, installed only on the right and on the left of the landing runway (or in front of the helipad), is appropriate to use a single circuit to power the unit. - Page 17 PAPI The theoretical distance D between the optical axis of the unit or the centre of the TLOF platform can be calculated with the following formula: where the M angle is equivalent to the approach angle minus 2 minutes of arc. The approach angle depends on the installation type: ● Airfield: (angle referred to the second unit on the side of the runway) ● Airfield with ILS system (Instrument Landing System): (angle referred to the second unit on the side of the runway) ● Airfield with MLS system (Microwave Landing System): (angle referred to the second unit on the side of the runway) ● Helipad: (angle referred to the left side, from the point of view of the pilot approaching) The actual distance of the optical axis D of the unit in relation to the threshold can be calculated with the following formula (distances expressed in m): The actual elevation of the optical axis Q in relation to the threshold or to the axis of the platform TLOF can be calculated with the following formula (distances expressed in m): For more information on the meaning of the symbols, please refer to the previous paragraphs.
- Page 18 PAPI Page intentionally left blank UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 19: Installation
Fixture placement The signalling devices, in combination with horizontal and vertical fixtures, provide information to the pilots and therefore represent a fundamental driving aid. These devices must always be in operating condition and must be clean, maintained and, if necessary, replaced as soon as their visibility is affected. The light sources must be positioned according to the legislative provisions near the runway oriented towards the approach direction to the landing runway. The optical axis of the unit must be parallel to the runway edge. The positioning of the light units of the runway must be in compliance with current regulations. For the positioning of the fixtures always refer to the requirements of the relevant Standards: • ICAO Annex 14 Part 1 5.3.5 - PAPI and APAPI UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual... -
Page 20: Foot Assembly
PAPI Foot assembly Store all the components in the original packaging until the time of installation. Screw the ring nut to the frangible coupling for about 2 thread turns. Screw the coupling on the plate until tightening. Insert the ring inside the seat and screw the nut on the frangible coupling without tightening (make maximum 3 turns). Insert the ring inside the seat and screw the nut on the threaded pin without tightening (make maximum 3 turns). Cut the EMT 2” pipe to the length envisaged in the project. Insert the tube in the joint and tighten the nut. Position the threaded pin and tighten the nut. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual... -
Page 21: Unit Permanent Installation
PAPI Unit permanent installation Store the device in its original packaging until the time of installation. Proceed assembling the fixture. Pay particular attention to the proper positioning of the fixture on the base. Use the fixture only in combination with concrete foundations with adequate characteristics (in accordance to specifications FAA and ICAO). At the end of installation check the proper alignment of the fixture. In case of incorrect... - Page 22 PAPI i [°] standard large runway runway with ILS 2° 30’ (2,50°) 2° 25’ (2,42°) 2° 50’ (2,83°) 2° 45’ (2,75°) 3° 10’ (3,17°) 3° 15’ (3,25°) 3° 30’ (3,50°) 3° 35’ (3,58°) allowed tolerance: +3’ (+0,05°)/-0’ (-0,00°) UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
- Page 23 PAPI UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 24: Initial Inspection
PAPI Initial inspection After installation and connection of all the equipment, check the operation of all light(s) fixtures. Never look directly the light sources when in operation from a close distance. The light fixtures can emit light beams in the visible and infrared spectrum causing potential danger to eyesight. Before the commissioning of the system it is necessary to submit it to an inspection by the competent authority, that should ensure that operation have been carried out correctly (Aerodrome Design Manual - Part 4). The inspection includes various checks and measures: ● Check the light beam ●... -
Page 25: Adjustments And Maintenance
PAPI ADJUSTMENTS AND MAINTENANCE Before carrying out any intervention on the device, cut off all external power sources and place appropriate work-in-progress warnings on the systems. Wait for the discharging time (at least 5 min) and check using appropriate instruments that there are no residual energies before accessing the electrical equipment. -
Page 26: Removal Of The Cover
Wait for the discharging time (at least 5 minutes) and check using appropriate instruments that there are no residual energies before accessing the electrical equipment. Every time that the fixture body is opened, all cables must be checked. If necessary, use only original spare parts by OCEM Airfield Technology. Whenever the PAPI fixture is opened, it must be ensured that: ●... -
Page 27: Cleaning The Front Glass
PAPI Cleaning the front glass Before carrying out any intervention on the fixture, cut off all external power sources and place appropriate work-in-progress warnings on the systems. Wait for the discharging time (at least 5 minutes) and check using appropriate instruments that there are no residual energies before accessing the electrical equipment. -
Page 28: Replacement Of The Lamp
PAPI Replacement of the lamp Before carrying out any intervention on the fixture, cut off all external power sources and place appropriate work-in-progress warnings on the systems. Wait for the discharging time (at least 5 minutes) and check using appropriate instruments that there are no residual energies before accessing the electrical equipment. - Page 29 PAPI Check the replacement lamp is identical to the lamp to be replaced. Insert the lamp in the correct orientation indicated through references. Do not force the lamp during insertion. Do not touch the halogen lamp with bare hands. If the lamp is touched with bare hands, before proceeding with installation, clean the bulb with a lens cleaning wipe soaked in isopropyl alcohol.
-
Page 30: Replacement Of The Support
PAPI Replacement of the support Before carrying out any intervention on the fixture, cut off all external power sources and place appropriate work-in-progress warnings on the systems. Wait for the discharging time (at least 5 minutes) and check using appropriate instruments that there are no residual energies before accessing the electrical equipment. - Page 31 PAPI Before disconnecting, proceed with the operation, detect and record the position of the lower support nut to simplify the pointing operations. Loosen and remove the ring nut. Grab the damaged support with an adjustable wrench in correspondence of the base of the breakable coupling element. Rotate counterclockwise and remove the support of the fastening flange. Screw the ring nut to the frangible coupling for about 2 thread turns. Screw the coupling on the plate until tightening. Insert the ring inside the seat and screw the nut on the frangible coupling without tightening (make maximum 3 turns). Insert the ring inside the seat and screw the nut on the threaded pin without tightening (make maximum 3 turns). Loosen the nut and remove the support from the pipe. Position the threaded pin on the base and tighten the nut. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
- Page 32 PAPI Unscrew the upper locking nut and adjust the lower nut to the correct height, previously detected. Position the unit on the supports and put the spherical washers. Tighten the upper locking nuts. Check the proper alignment of the fixture (see the related paragraph in the chapter “ADJUSTMENTS AND MAINTENANCE”). After completion of operations, check the operation of all light(s) fixtures. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 33: Troubleshooting
ATTENTION: do not perform maintenance activities with powered devices. If the detected values do not comply, the connection cable may be damaged. If necessary, replace it. If the values are correct, there may be a fault in the wiring inside the unit. If after trying the proposed solutions the problem persists, contact OCEM technical support. No light emission from a single unit Fault on the connection cable between Access the connection box and disconnect the cable that supply transformer and unit the unit: using suitable tools, check the proper functioning of the connection line between transformer and unit. If the detected values do not comply, the connection cable may be damaged. If necessary, replace it. - Page 34 Possible causes Possible solutions The unit emits a reduced light flow Burnt lamp Disconnect the supply cable of the unit. ATTENTION: do not perform maintenance activities with powered devices. Remove the external cover of the fixture. Replace the lamp. The unit once installed failed the light flow checks. Immediately replace the unit and contact OCEM technical support: send the unit to the calibration repair centre. UT-MT-0970_1.0_02-08-2022 (EN) Use and Maintenance Manual...
-
Page 35: Spare Parts
PAPI Spare parts Always check the version of the fixture installed and the accessories present. PAPI fixture Supports Light unit Accessories UT-MT-0970_1.0_200223 (EN) Use and Maintenance Manual... - Page 36 PAPI 4.7.1 Support units Description Fixture Code Code Art. █ █ █ █ █ █ Front/rear threaded rod █ █ █ █ █ █ 334.5840 Rear threaded rod █ █ █ █ █ █ Front threaded rod 334.5841 █ █ █ █ █ █ Hemispherical washer always valid 347.0040...
- Page 37 PAPI 4.7.2 Optical unit Description Fixture Code Code Art. - 2 - Upper cover (2 lamps) 334.6090 █ █ █ █ █ █ - 3 - Upper cover (3 lamps) █ █ █ █ █ █ 334.6100 - 2 - Front tempered glass (2 lamps) 319.3210 █ █ █ █...
- Page 38 PAPI 4.7.3 Accessories Description Fixture Code Code Art. Installation Template Kit (thread 2” NPT - 2 lamps) - 2 - PAACK0071 █ █ █ █ █ █ - 3 - Installation Template Kit (thread 2” NPT - 3 lamps) PAACK0072 █ █ █ █ █ █ Clinometer with reference plate always valid 332.3390 Linear level gauge always valid 738.2007...
- Page 39 Contact us OCEM AT +39 051 66 56 611 info@ocem.com...
- Page 40 HALO Precision Approach Path Indicator OCEM AT a division of ENERGY TECHNOLOGY S.r.l. Via della Solidarietà, 2/1 - 40056 Valsamoggia (Bologna) - Italy ocem...
