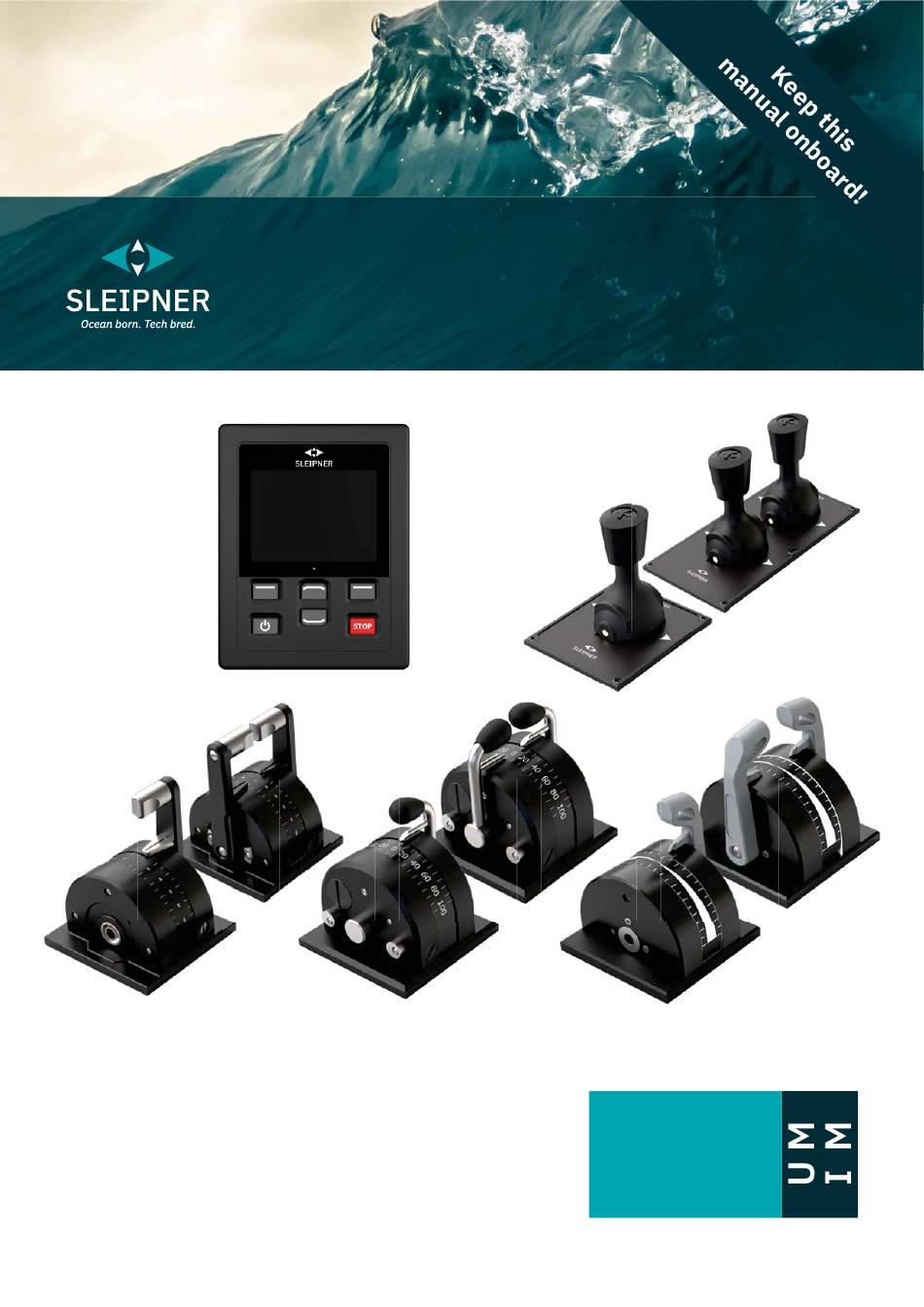

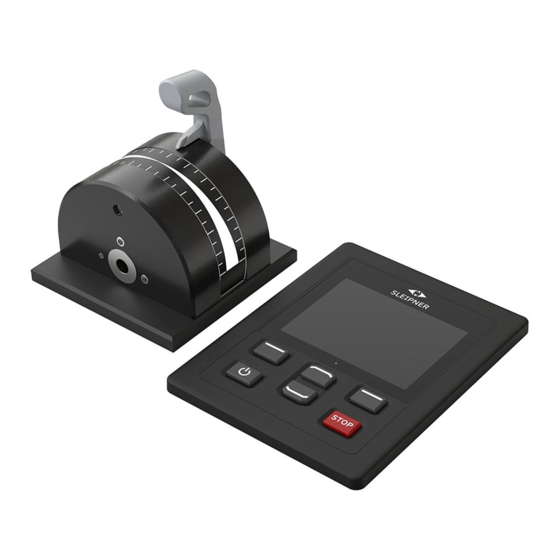

User Manual
Including Installation Guide for Control Panels
PJC421 & PJC422
DOCUMENT ID:
6770
REVISION:
7
DATE:
2022
EN
LANGUAGE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PJC421 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sleipner PJC421

  • Page 1 User Manual Including Installation Guide for Control Panels PJC421 & PJC422 SLEIPNER GROUP DOCUMENT ID: 6770 REVISION: P.O. Box 519 DATE: N-1612 Fredrikstad 2022 Norway www.sleipnergroup.com LANGUAGE: To download your language go to www.sleipnergroup.com...
  • Page 2: Table Of Contents

    UK Declaration of Conformity ............................48 Products PJC421-PVREL - Single joystick, twist detent, thruster control and S-link Color LCD touch screen PJC421-PVREL-DNV - Single joystick, twist detent, thruster control and S-link Color LCD touch screen PJC421-LE90 - Single lever, detent, thruster control and S-link Color LCD touch screen...
  • Page 3: General Operation Considerations And Precautions Guidelines

    Failure to follow the considerations and precautions can cause serious injury, damage and will render all warranties given by Sleipner Motor as VOID. MC_0411 General Operation Considerations and Precautions Guidelines MC_0444 For the operation of thrusters MC_0418 Never use thrusters when close to objects, persons or animals in the water. The thruster will draw objects into the tunnel and the rotating propellers.
  • Page 4: Panel Layout & Functions

    Activating the stern thruster *Bow thruster installation only *Stern thruster installation only Activating both bow and Activating both bow and stern thruster to push the stern thruster to rotate the boat sideways boat on axis MG_0459 PJC421 & PJC422 6770 2022...
  • Page 5 IEC 60068-2-30 Salt mist IEC 60068-2-52, Kb Compass Safe Distance 0.2m IEC 61000-4-8:2010 ISO 25862: 2009 Internal buzzer sound level IEC 60945:2002 External buzzer sound level IEC 60945:2002 TP-35 weight 260g Display size 3.5 inch PJC421 & PJC422 6770 2022...
  • Page 6: Control Panel - Thruster Dashboard View

    PHC-3 hydraulic controller is used to control two thrusters. The battery status icon for DC thrusters has six levels. The shaded area in the battery symbol indicates the remaining battery capacity. PJC421 & PJC422 6770 2022...
  • Page 7 The same notice will be shown if the TP-35 is turned on with a joystick positioned out of centre. This functionality is implemented as a safety function to prevent unintentional thruster operation. PJC421 & PJC422 6770 2022...
  • Page 8: Control Panel - System Setup

    3 seconds of inactivity. When turning on TP-35 the backlight level is always set to 80%. Sliding bar for adjustment backlight level backlight level in % The backlight level can be adjusted with 1% resolution using the slide bar on the touch screen. PJC421 & PJC422 6770 2022...
  • Page 9: Control Panel - Alarms

    Show list of active alarms. Alarm List, Audible Alarm Signal Active Push Mute active alarms on one TP-35 to mute the audible alarm signals on all Sleipner control panels that are turned on and connected to the S-Link bus. Unmuted alarms are listed in red, and muted alarms are listed in dark blue. Active alarms are not automatically cleared, even if the alarm state is no longer present in the device.
  • Page 10 20 bar. Reducing to standby pressure will disable thruster operation, but other low consumption equipment connected to the same hydraulic system might be operable. The STOP notice will be displayed on all Sleipner control panels that are turned on. PJC421 & PJC422...
  • Page 11: Control Panel - Menu Navigation

    List of devices connected to the Number of devices connected to S-Link bus with corresponding the S-Link bus. serial number and location Location Serial number Exit the System Devices menu and associate all listed devices to the control panel. PJC421 & PJC422 6770 2022...
  • Page 12 PHC-3 Set the running direction for the bow thruster. Bow Thrust • Normal (default) Direction • Swapped Set the running direction for the stern thruster. Stern Thrust • Normal (default) Direction • Swapped PJC421 & PJC422 6770 2022...
  • Page 13 In a system with two bow or two stern thrusters, for instance a catamaran, use Bow or Stern for port thruster. For starboard thrusters use Bow Starboard or Stern Starboard. Location • Bow (default) • Stern • Bow Starboard • Stern Starboard PJC421 & PJC422 6770 2022...
  • Page 14 • TMU-1 - Logged RPM data is based on measurement performed by RPM sensor and requires TMU-1 to be installed and interfaced with an RPM sensor. Speed Source Stern Speed Source Bow Starboard Speed Source Stern Starboard PJC421 & PJC422 6770 2022...
  • Page 15 “0 switch” indicates joystick being centred and switch not triggered. “1 switch” indicates that the joystick has been moved out of centre and switch is triggered. Joysticks with no centre switch will always show “0 switch”. A new calibration is initiated. Joystick PJC421 & PJC422 6770 2022...
  • Page 16 LE90/LF90/ Select single Lilaas LE90, LF90 or LF90X joystick for calibration. LF90X Dual Lilaas LE90/LF90/ Select dual Lilaas LE90, LF90 or LF90X joystick for calibration. LF90X Abort joystick calibration and return to Joystick Setting menu. PJC421 & PJC422 6770 2022...
  • Page 17 Control Panel - Menu Navigation MC_0536 example of the steps for calibrating a dual joystick. Abort joystick calibration and return to Joystick Setting menu. the X3 I/O connector of TP-35. Digital Outputs Digital Inputs PJC421 & PJC422 6770 2022...
  • Page 18 • Deactivated Select Station chapter for detailed information. Workstation • Main (default) • Remote for more information. • Bridge • Port Wing Location • Starboard Wing • Engine Control Room • Engine • Wing (default) PJC421 & PJC422 6770 2022...
  • Page 19 -2/2 TP-35 ON-Take Command - Activaion of input turns TP-35 on and request command. If TP-35 is allready turned on, DIO_0 activaion of input only request command. Deactivation of input results in no action. Negative number in front of the function inverts the input. DIO_1 PJC421 & PJC422 6770 2022...
  • Page 20: Control Panel - Dnv Models

    • Power supply failure alarm • Display of motor RPM • Gear leg low oil level alarm • Select station For compliance with DNV-RU-SHIP-Pt4Ch9 independent emergency stop must be installed in addition to enabling of the functions listed above. PJC421 & PJC422 6770 2022...
  • Page 21 Display of Motor RPM and Gear Leg Low Oil Level Alarm Sleipner Thruster Monitoring Unit-1 (TMU-1) must be installed and connected to the S-Link bus to display measured motor RPM and gear leg low oil level alarm on TP-35. For AC thrusters, estimated RPM from the VFD is displayed if TMU-1 is not installed.
  • Page 22 10 seconds. If the operator aligns the joysticks while this notice is displayed, command is taken, and an audible signal is given. If the joysticks are not aligned during the time the notice is displayed or the notice is manually closed, the workstation continues to be NOT IN COMMAND. -2000 -2000 -2000 -2000 Closes the notice. Joysticks Command is transferred. aligned PJC421 & PJC422 6770 2022...
  • Page 23: S-Link Fault Codes

    Fault Code. Please see the user manual of your S-Link compliant control panel for more information on how to access Fault Code information in case of an alarm situation. covered by Sleipner Generic Fault Codes. PDC-301 Fault Codes MC_0119...
  • Page 24: Phc-3 Fault Codes

    LS-Dump valve current higher than 4.0A -Check wires and connections for short circuit 10513.0.51 PHC DOUT PUMP #2 - Current High Pump #2 valve current higher than 4.0A -Check wires and connections for short circuit PJC421 & PJC422 6770 2022...
  • Page 25 VFD Instance 1 No Communication Lost communication with VFD -On the VFD make sure the RS485 BUS TERMINATION is in ON position 36103.1.0 VFD IN LOCAL Instance 1 - VFD in local mode -Switch VFD to remote mode PJC421 & PJC422 6770 2022...
  • Page 26: Ppc Fault Codes

    Motor speed higher than 5.000 RPM -Check that cable between TMU-1 and RPM sensor is connected and not damaged. VDRI-1 Fault Codes MC_0449 Fault Code Fault Name Fault Description Action Potential causes: 109.0.0 ured Speed Source. ured. PJC421 & PJC422 6770 2022...
  • Page 27: Installation Guide

    Any attempt to directly control or connect into the S-Link™ control system without a designated and approved interface will render all warranties and responsibilities of all of the connected Sleipner products. If you are interfacing the S-Link™ bus by agreement with Sleipner through a designated Sleipner supplied interface, you are still required to install at MC_0105 PJC421 &...
  • Page 28: Installation

    Ensure the panel should be mounted 20 cm away from any compass to ensure that the accuracy of the compass is not affected. If the panel is mounted in an weather exposed location mounting the covering is recommended when the panel is not used. Top Mount Flush Mount MG_0463 PJC421 & PJC422 6770 2022...
  • Page 29: Top Mount Measurements

    Panel Height 143.1 Panel width 111.6 Raised height above the dashboard 0.26 Depth behind the dashboard (not inc. cables) 23.5 Cable bend radius Top mount MG_0455 Cutout Template Top mount cutout 10,5 10,5 93,9 95,5 PJC421 & PJC422 6770 2022...
  • Page 30: Top Mount Installation

    S-Link Backbone cable chipped use sealant to assist the gasket *Optional X1 Joystick: Required. Connect joystick cable X2 S-Link: Required. Connect S-Link Spur cable X3 I/O: Optional See Detailed IO Description MG_0464 chapter for more information. PJC421 & PJC422 6770 2022...
  • Page 31: Flush Mount Measurements

    Measurement description code inch Panel Height 120.5 Panel width Raised height above the dashboard 0.26 Depth behind the dashboard (not inc. cables) 23.5 Cable bend radius Flush mount MG_0475 Cutout Template Flush mount cutout 89,1 95,5 PJC421 & PJC422 6770 2022...
  • Page 32: Flush Mount Installation

    S-Link Backbone cable Joystick cable S-Link Spur cable Optional X1 Joystick: Required. Connect joystick cable X2 S-Link: Required. Connect S-Link Spur cable X3 I/O: Optional See Detailed IO Description chapter for more information. MG_0465 PJC421 & PJC422 6770 2022...
  • Page 33: Pjc421-Pvrel Measurements

    Measurement description code inch Panel Height 123.4 Panel width 105.5 Raised height above the dashboard 111.3 Depth behind the dashboard (not inc. cables) 94.7 Cable bend radius 94,5 Cutout Template Cutout area 4xØ10 4xØ3 MG_0435 PJC421 & PJC422 6770 2022...
  • Page 34: Pjc421-Pvrel Joystick Installation

    PJC421-PVREL Joystick Installation MC_0396 Place the supplied cut-out template on the desired installation location. Cut out the area according to the template. Plug cable from joystick into the cable comming from TP-35 (X1 Joystick). Insert the joystick and fasten with screws.
  • Page 35: Pjc422-Pvrel Measurements

    Measurement Measurement description code mm inch Panel Height Panel width Raised height above the dashboard 111.3 Depth behind the dashboard (not inc. cables) 94.7 Cable bend radius 95,0 Cutout Template Cutout area 4xØ10 6xØ10 MG_0433 PJC421 & PJC422 6770 2022...
  • Page 36: Pjc422-Pvrel Joystick Installation

    X2 sockets of the Stern joystick Y-connector and the cable coming from the stern joystick to X3 Connect the cable from connector X1 Joystick on TP-35 to X1 socket on the Y-connector. S-Link Backbone cable MG_0467 PJC421 & PJC422 6770 2022...
  • Page 37: Pjc421-Lf90 And Pjc422-Lf90 Measurements

    PJC421-LF90 and PJC422-LF90 Measurements MC_0389 PJC421 PJC422 Measurement LF90/-DNV LF90/-DNV Measurement description code inch inch Panel Height Panel width Raised height above the dashboard 98.8 98.8 Depth behind the dashboard (not inc. cables) *PJC422-LF90 Cutout Template 4xØ5,5 Cutout area 17,25...
  • Page 38: Pjc421-Lf90 And Pjc422-Lf90 Joystick Installation

    PJC421-LF90 and PJC422-LF90 Joystick Installation MC_0396 Place the supplied cut-out template on the desired installation location. Cut out the area according to the template. Plug the cable comming from the joystick into the X1 Joystick connector on TP-35. Insert the joystick in place and fasten screws.
  • Page 39: Pjc421-Le90 And Pjc422-Le90 Measurements

    PJC421-LE90 and PJC422-LE90 Measurements MC_0390 PJC421 PJC422 Measurement LE90/-DNV LE90/-DNV Measurement description code inch inch Panel Height Panel width Raised height above the dashboard 104.7 104.7 Depth behind the dashboard (not inc. cables) 17.2 17.2 *PJC422-LE90 79,2 4xØ5,5mm 70,0 39,6...
  • Page 40: Pjc421-Le90 And Pjc422-Le90 Joystick Installation

    PJC421-LE90 and PJC422-LE90 Joystick Installation MC_0396 Place the supplied cut-out template on the desired installation location. Cut out the area according to the template. Plug the cable comming from the X1 Joystick connector on TP-35 into the connector on the back of the joystick.
  • Page 41: Pjc421-Lf90X And Pjc422-Lf90X Measurements

    PJC421-LF90X and PJC422-LF90X Measurements MC_0391 PJC421 PJC422 Measurement LF90X/-DNV LF90X/-DNV Measurement description code inch inch Panel Height Panel width Raised height above the dashboard 112.5 112.5 Depth behind the dashboard (not inc. cables) *PJC422-LF90X 4xØ5,5 16,1 Cutout Template Cutout area...
  • Page 42: Pjc421-Lf90X And Pjc422-Lf90X Joystick Installation

    PJC421-LF90X and PJC422-LF90X Joystick Installation MC_0396 Place the supplied cut-out template on the desired installation location. Cut out the area according to the template. Plug the cable comming from the joystick into the X1 Joystick connector on TP-35. Insert the control panel in place and fasten screws.
  • Page 43: Detailed Io Description

    Length of the IO cable is 2 meter. Relay A Relay B Order number for the IO cable: SM908998 Max current through relay: 45mA The IO cable is included in all PJC4xx part numbers that ends with -DNV. MG_0481 PJC421 & PJC422 6770 2022...
  • Page 44: S-Link System Description

    MC_0120 S-Link is a CAN-based control system used for communication between Sleipner products installed on a vessel. The system uses BACKBONE Cables as a common power and communication bus with separate SPUR Cables to each connected unit. Units with low power consumption are powered directly from the S-Link bus therefore one power cable must be connected to the BACKBONE Cable through a T-Connector.
  • Page 45: List Of Installed S-Link Devices

    Fill in the type, location and serial numbers of the S-link devices installed. Keeping this as a reference will make the setup procedure easier! S-link device Location Serial number (ie Thruster, AMS, PPC etc) (Bow, Bow-STB, Stern, Stern-STB) PJC421 & PJC422 6770 2022...
  • Page 46: Service And Support

    Patents MC_0024 At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have patented visit our website www.sleipnergroup.com/patents PJC421 & PJC422...
  • Page 47: Ce Declaration Of Conformity

    This declaration of conformity is issued under the exclusive responsibility of the manufacturer. Fredrikstad, 28th of April 2022 Ronny Skauen, President and CEO Sleipner Bank: 5122.05.33267 A part of Sleipner Group P.O. box 519 Org. Nr.: NO 932 455 463 mva Arne Svendsensgt. 6-8 NO-1612 Fredrikstad, Norway Web: sleipnergroup.com...
  • Page 48: Declaration Of Conformity

    This declaration of conformity is issued under the exclusive responsibility of the manufacturer. Fredrikstad, 28th of April 2022 Ronny Skauen, President and CEO Sleipner Bank: 5122.05.33267 A part of Sleipner Group P.O. box 519 Org. Nr.: NO 932 455 463 mva Arne Svendsensgt. 6-8 NO-1612 Fredrikstad, Norway Web: sleipnergroup.com...
  • Page 49 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC421 & PJC422 6770 2022...
  • Page 50 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC421 & PJC422 6770 2022...
  • Page 51 Notes MC_0037 ..............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PJC421 & PJC422 6770 2022...
  • Page 52 © Sleipner Group, All rights reserved The information given in the document was right at the time it was published. However, Sleipner Group cannot accept liability for any inaccuracies or omissions it may contain. Continuous product improvement may change the...
