VL3600 PROFILE IP
gobo.
Step 6.

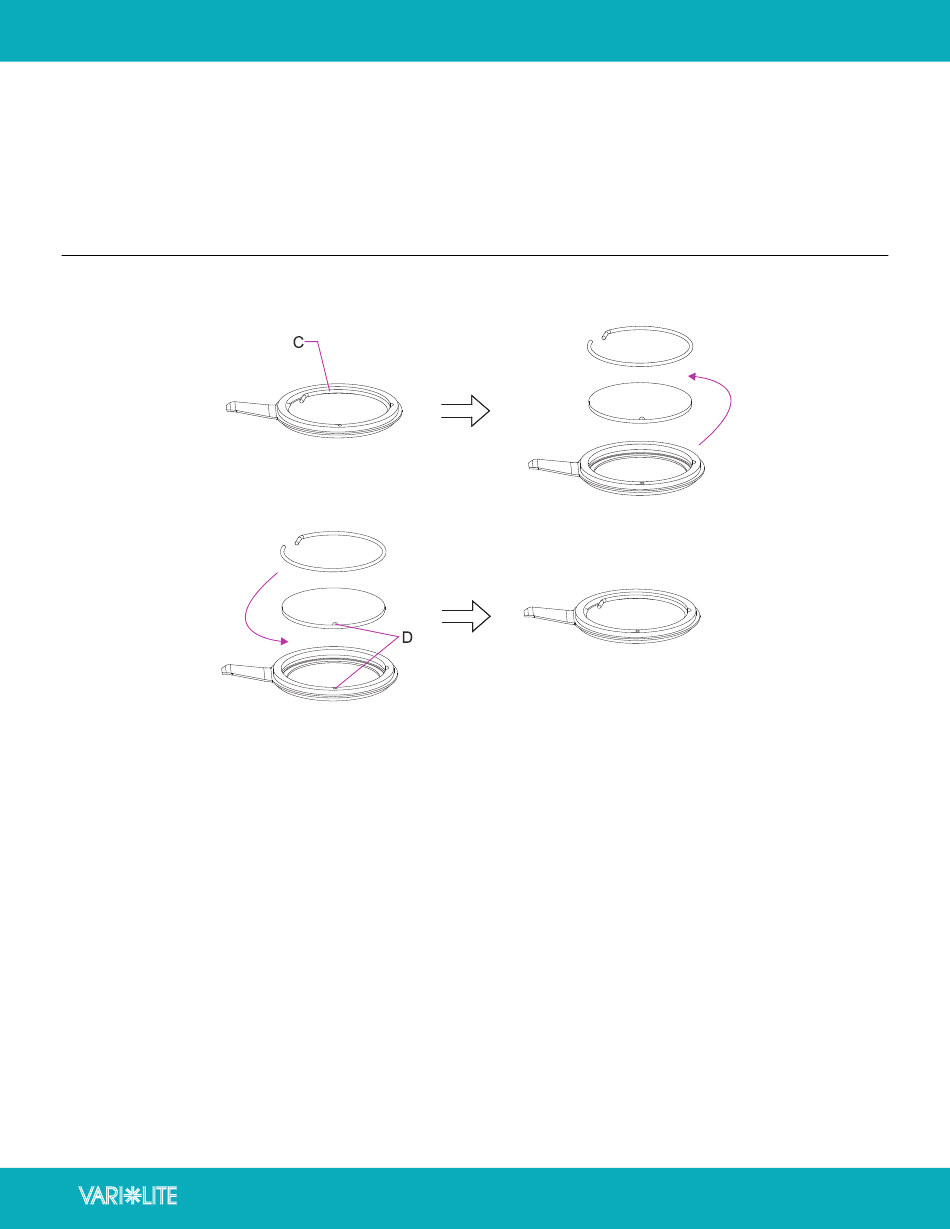

Do not touch the surface of the gobo with bare fingers (wear gloves). Put the gobo and the spring
back into the carrier, aligning the mark on the gobo with the mark on the carrier as shown in D. The
coated side should face upwards. Apply a small amount of silicon RTV to hold the gobo in place.
Step 7.
Insert the fixed gobo carrier back into the fixed gobo wheel. Re-install the bulkhead into the fixture.
Follow the instructions to re-install the covers.
Step 8.
Power and test.
DMX OPERATION
23
user manual
w w w.va r i - l i t e .c o m
