Summary of Contents for Bartscher 500830

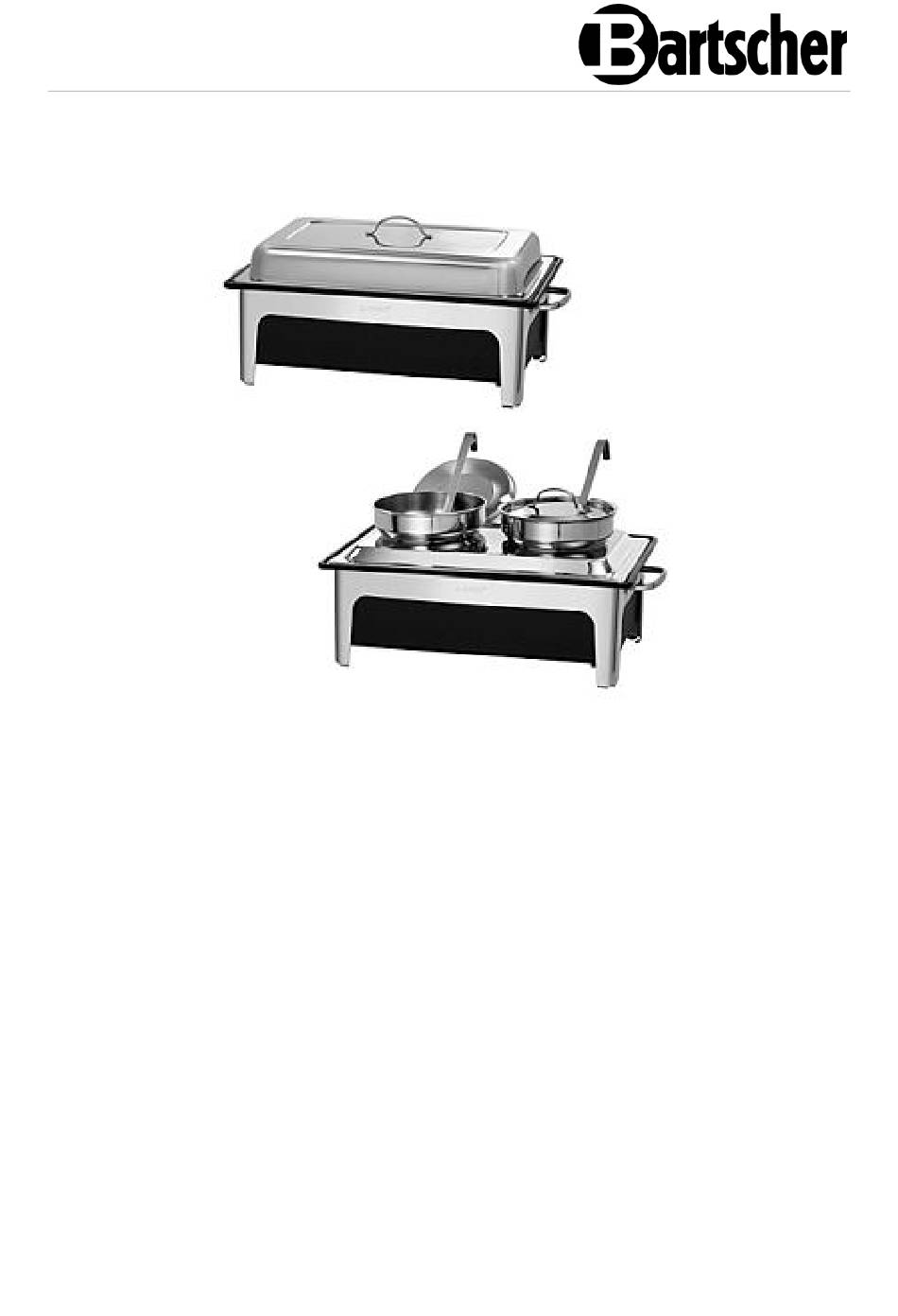

- Page 1 1/1 2200 E - 2x4L 2200 E 500830 - 500840...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 3.0 Date of preparation: 2023-02-10...
-
Page 3: Table Of Contents
List of Components of the Appliance ............. 11 Functions of the Appliance ..............12 Installation and operation ................13 Installation ....................13 Operation ....................14 Cleaning ...................... 17 Safety Instructions for Cleaning ............. 17 Cleaning ....................17 Disposal ....................... 18 500830 1 / 18... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 18 500830... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 500830 3 / 18... - Page 6 Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. • You may transport and clean the appliance after it cools down entirely. • It is prohibited to sprinkle hot surfaces with cold water or flammable liquids. 4 / 18 500830...
- Page 7 • The appliance may only be used clean. • Use only original spare parts. Never attempt to repair the appliance on your own. • Do not attempt to modify nor alter the appliance. 500830 5 / 18...
-
Page 8: Intended Use
An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. The appliance may only be used to perform tasks described in this instruction manual. The following is an unintended use: – Food preparation. 6 / 18 500830... -
Page 9: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 500830 7 / 18... -
Page 10: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 8 / 18 500830... -
Page 11: Technical Data
2,2 kW | 230 V | 50 Hz Dimensions (W x D x H), in mm: 636 x 357 x 287 Weight, in kg: We reserve the right to implement technical modifications. Version / Characteristics — Chafing-Dish 500830 • Heating type: electric • Control: electronic, knob •... - Page 12 Heating type: electric • Control: electronic, knob • Functions: warm-keeping • Lid properties: – removable, with handle – spoon recess • Indicator lights: heating • The set includes: – 2 lid holders – 2 soup ladles <Endergebnis> 10 / 18 500830...
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 500830 Fig. 1 1. Lid handle 2. Lid 3. GN container 4. Base holder (2 pcs) 5. Base 6. Temperature controller 7. Heating up indicator light 8. Power cord 9. Appliance plug-in socket 10. -
Page 14: Functions Of The Appliance
13. Water tank with heating element 14. Lid holder (2 pcs) Functions of the Appliance The appliance is designed to keep prepared food warm at a set temperature and is suitable for serving hot food in buffets, catering or event service. 12 / 18 500830... -
Page 15: Installation And Operation
– sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Leave at least 20 cm clearance from flammable walls and items. 500830 13 / 18... -
Page 16: Operation
2. Dry all cleaned elements and surfaces thoroughly. Fig. 3 3. Next, place the water tank in the base. 4. Fit the enclosed lid holders onto the appliance. 5. Pour water into the water tank up to the water level marker. 14 / 18 500830... - Page 17 When temperature in the water tank drops by approx. 10°C, the indicator light comes on again and water in the tank is reheated to pre-set temperature. If a lower dish temperature is required, rotate the temperature controller counter- clockwise to a setting below '8'. 500830 15 / 18...
- Page 18 2. First, unplug the appliance from the socket outlet and then remove the power cord from the appliance plug-in socket. 3. Before pouring the water out, leave the appliance and water in the water tank to cool down. 16 / 18 500830...
-
Page 19: Cleaning
2. Remove the lid(s). 3. In the case of the 500830 appliance, pull out the GN container. 4. In the case of the 500840 appliance, pull out the inserts with soup ladles and remove the intermediate plate, too. -
Page 20: Disposal
You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 18 / 18 500830...
