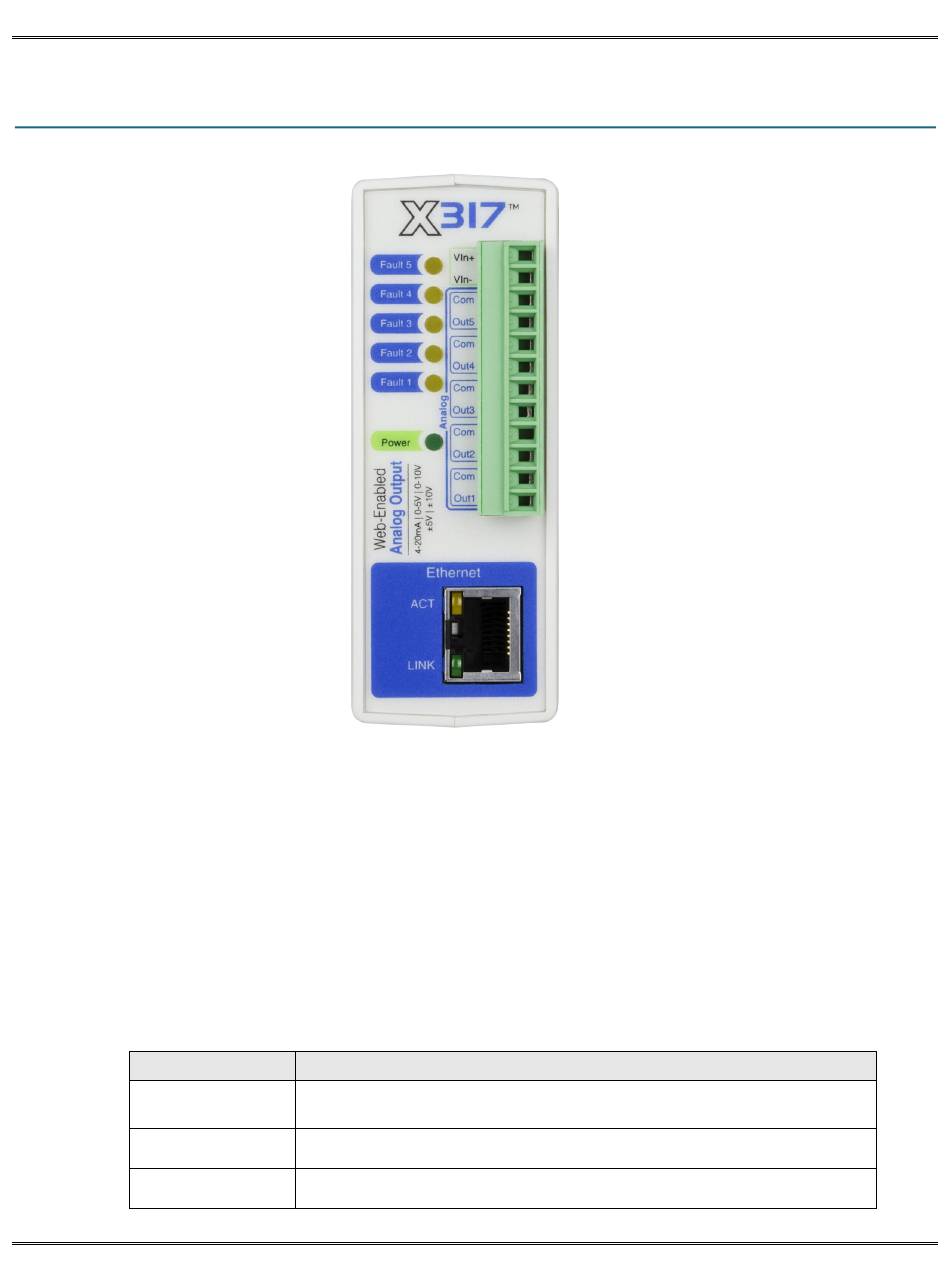

1.2 Connectors & Indicators
I/O Connector
The 12-pin terminal connector is used to provide power to the module and connect the Analog
Outputs.
Network Connector
The Ethernet connector is a standard, 8-position modular receptacle.
Module Power Indicator
The green Power LED indicator is illuminated whenever the module is powered.
I/O Indicators
The four, yellow LEDs indicate the output alarms.
Alarm Condition
Power Up
Current Mode
Over Temperature
Page 8
Connections & Indicators
Yellow LED's
All four yellow LEDs are momentarily illuminated
All four yellow LEDs remain illuminated if any internal errors are detected
Open circuit or compliance voltage violation (current source is saturated)
Die temperature is over +142°C
X-317™ Users Manual
Xytronix Research & Design, Inc.
