- Page 1 C23S Dual Band series repeater User manual PLEASE KEEP APPROPRIATELY AND CAREFULLY READ THIS USER MANUAL BEFORE INSTALLATION...
-
Page 3: Table Of Contents
The power supply voltage of repeater Ensure of grounding, waterproof and should meet the standards of security lightning protection when installing requirements the repeater Do not open the repeater, maintain The repeater should be installed and started by professionals or replace the components Keep the repeater away from heat source, do not install in a narrow space... -
Page 5: Package Content

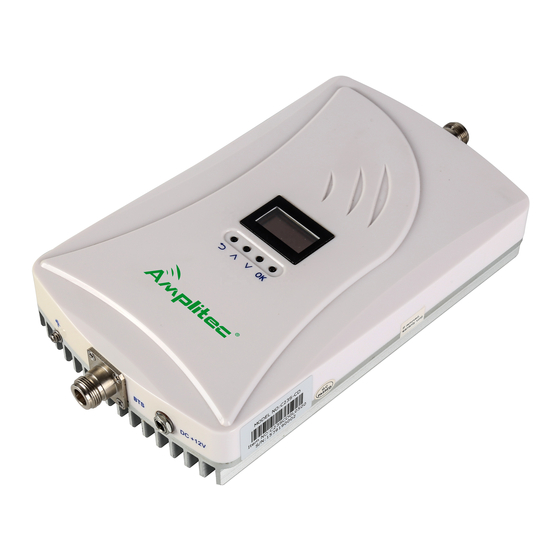

C23S Dual Band Signal Repeater Package content C23S repeater 1PC 12V2A power adapter installation screws U-shaped back frame Product description This product is a highly intelligent cell phone signal amplifier, the design of this product adopts digital ALC technology, anti-interference technology. This product is equipped with LCD intelligent display, the working status of the device such as working frequency, gain, output power, ISO, ALC alarm can be clearly displayed. -
Page 6: Connector Description
Connector Description A ： Donor antenna port (N-female) B ： Service antenna port(N-female) C ：12V DC power supply port D ： Return button E ： Up button F ： Down button G ： OK button ... -
Page 7: Screen And Display
C23S Dual Band Signal Repeater b. Screen and display After power-on,the main menu interface of the display shows the real-time working frequency, input and output power, gain, and alarm prompts (the following instructions are for reference only, and the specific frequency will be matching the equipment in use). Figure 1 c. -
Page 8: Switching The Ap Manually
e. Switching the AP manually. setting the PA switch can only be operated in manual mode, press the Return button to the uplink and downlink display of the system to switch the PA, then press the Up or Down button to move the display cursor to the second line of "DL/UL Out:xx"... -
Page 9: Temperature Alarm Threshold And Enable Setting
C23S Dual Band Signal Repeater down button to adjust the ATT value (Figure 15), and press the confirmation button to confirm. Figure13 Figure14 Figure15 h. Temperature alarm threshold and enable setting The temperature alarm threshold setting can only be operated in manual mode, press the Return button to Figure 16 to check the real-time temperature of the equipment, then press the Up or Down button to move the cursor to "Temp: XX ℃", press the Confirm button to enter (Figure 16,17), then press the Up or Down button to move the cursor to "Threshold:XX ℃", press... -
Page 10: Check The Isolation Degrees
i. Check the Isolation degrees. Press the Return key to Figure 22, then press the Up or Down key to move the cursor to "ISO : XX", and press the Confirm key to enter (Figure 23) to view the isolation degree. Figure22 Figure23 Technical parameters... -
Page 11: Installation Guidance
C23S Dual Band Signal Repeater Item Uplink Downlink Over input turn-off: Available Fully comply with 3GPP PCDE Fully comply with 3GPP ACRR Fully comply with 3GPP ≤8 dB ≤8 dB Noise figure ≤1.5 μs ≤1.5 μs Group delay 50Ω I/O impedance Power supply DC：+12 V Power consumption... - Page 12 Installation Steps of repeater This repeater needs to be installed on a solid wall, and its installation steps are as follows. 1)According to the size of the repeater and its installation requirements, choose a suitable place to place it. 2) Mark the U-shaped back frame installation hole position on the wall, drill holes with impact drill, the hole size is Φ7, and the hole point location diagram is as follows (unit: mm) 1) Put the Φ8 expansion tube into the 4 holes.
- Page 13 C23S Dual Band Signal Repeater Antenna connection Select suitable outdoor and indoor antennas according to the characteristics of the coverage place, the installation and connection of outdoor and indoor antennas follow the following requirements. 1) Please refer to the antenna manual for the installation method of antenna; 2) The outdoor antenna shall be installed at the position with the strongest roof signal possibly, and the direction angle shall be aligned with the direction of the base station;...
-
Page 14: Maintenance And Care
Amplifier opening test 1）If possible, connect the amplifier grounding post to the grid ground with electric wire. 2）Check whether the connection joint between the repeater and the antenna is in good contact. 2）Plug the DC plug of the 5V/2A power adapter provided with the host into the DC +5V jack of the cell phone companion host and the AC plug into the nearest 220V power socket. - Page 15 C23S Dual Band Signal Repeater Manufacturer:Guangdong Amplitec Tech Development Co.,Ltd Address: 4 Floor, 4 Building, No. 60 of Langbao West Rd, Zhangcha Foshan, China, 528000 Tel：0757-83308238，Fax：0757-83123923 Email：info@amplitec.cn, Website：www.amplitec.net...
