Summary of Contents for Amplitec C10 Series

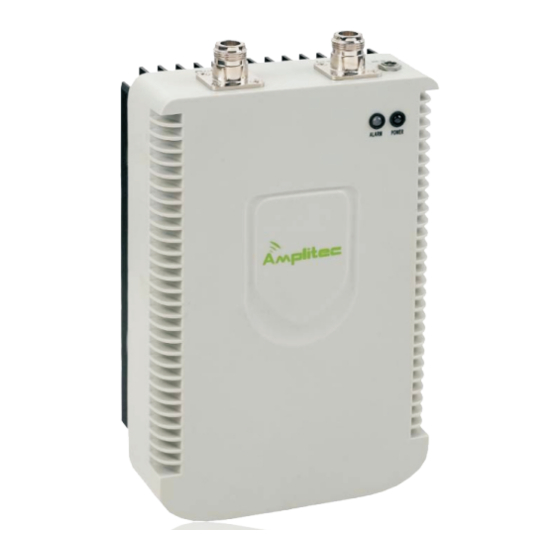

- Page 4 RF Connector N-Female Switch Power Switch Cooling Heatsink Convection Cooling 209*133*41（mm） Dimensions (D x W xH ) Weight < 1.5 Kg Installation Type Wall Installation Environment Conditions IP40 Humidity < 90% Operating Temperature -10℃~55℃...
- Page 5 Items Specification C10/C15/C20-CDMA UL:824~849MHz DL:869~894MHz C10/C15/C20-GSM UL:890~915MHz DL:935~960MHz C10/C15/C20-DCS UL:1710~1775MHz DL:1805~1870MHz C10/C15/C20-PCS UL:1850~1900MHz DL:1930~1980MHz C10/C15/C20-WCDMA UL:1920~1980MHz DL:2110~2170MHz Frequency UL:890~915MHz/1710~1775MHz Range C10-GD DL:935~960MHz/1805~1870MHz UL:824~849MHz/1850~1900MHz C10-CP DL:869~894MHz/1930~1980MHz UL:890~915MHz/1920~1980MHz C10-GW DL:935~960MHz/2110~2170MHz UL:824~849MHz/1920~1980MHz C10-CW DL:869~894MHz/2110~2170MHz C10:≧60 dB ;C15/C20: ≧65dB Max.Gain C10:≧60 dB ;C15: ≧65dB; C20 ≧70dB ≧20dB Automatic Level Control CDMA/GSM≦8dB ;...
- Page 6 Series Item Specification Quantity Remarks Expanding plug Accessories Tapping screw M6*40 Accessories Spinner Waterproof tape Measurement and installation Ruler of hole Percussion drill Drilling on wall...
- Page 7 Status Definition of ALARM Meaning: working in linearity, not Max. output green power and Power on. Attention: Input signals may be not enough Meaning: overloading or self oscillation, strong input signals Attention: input signal level is too high or the space of donor antenna and service antenna is not enough.
