MERCEDES
Model:
Sprinter W907
2018>
Year:

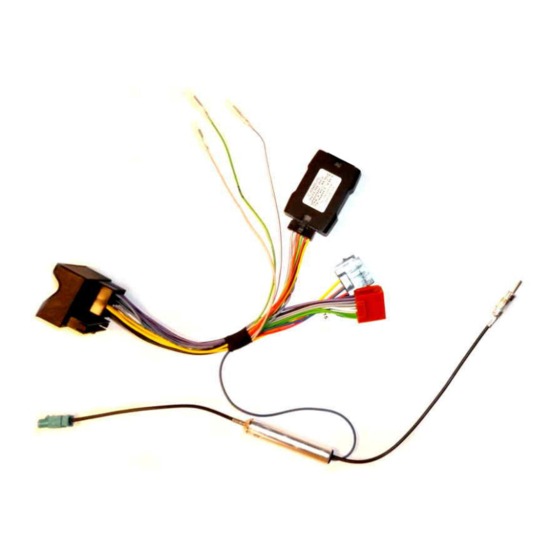

Kit content:
CANBUS services interface
wiring harness
antenna adapter
Customer code:
CA-R-MER.005AE
INSTALLATION MANUAL
All installa�on work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
01/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Advertisement
Table of Contents
Related Manuals for Mercedes-Benz Sprinter W907
Summary of Contents for Mercedes-Benz Sprinter W907
- Page 1 MERCEDES Model: Sprinter W907 2018> Year: Kit content: CANBUS services interface wiring harness antenna adapter Customer code: CA-R-MER.005AE INSTALLATION MANUAL All installa�on work must be performed by a qualified professional installer only. All installa�on work must be performed by a qualified professional installer only.
- Page 2 Connect cables to the radio side as follow: 1- to ISO CONNECTORS (black and red housings) 2- to RADIO ANTENNA-CONNECTOR 3- to SERVICES (if required); func�ons are marked on the wires: Green - Parking Violet - Reverse Pink - Speed Connect cables to the car side as follow: 4- to CAR CONNECTOR 5- to CAR ANTENNA-CONNECTOR...
