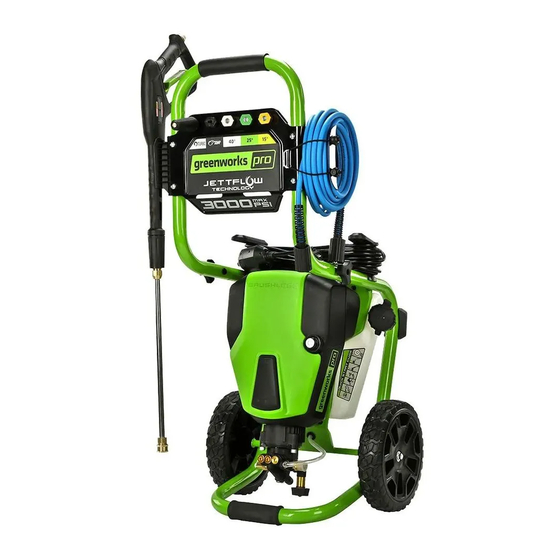

- Page 1 GPW 3000 PRESSURE WASHER OPERATOR MANUAL MANUEL DE L’UTILISATEUR LAVEUSE À PRESSION LAVADORA A PRESIÓN MANUAL DEL OPERADOR PWA207...
-
Page 2: Table Of Contents
English Install the upper handle........8 Description......... 4 Install the spray wand........8 Purpose.............. 4 Install the uberflex hose........8 Overview............4 Operation........... 8 General power tool safety Connect the water supply to the machine..8 warnings..........4 Use the spray gun..........9 General power tool safety warnings.... -
Page 3: Description
English DESCRIPTION GENERAL POWER TOOL SAFETY WARNINGS PURPOSE • The machine is not intended for use by persons (including children) with reduced physical, sensory or mental The machine is used to used to clean vehicles, boats, capabilities, or lack of experience and knowledge, unless buildings, porches, decks, patios, and driveways. -
Page 4: Pressure Washer Safety Warnings
English SERVICING OF A DOUBLE- • Inadequate extension cords can be dangerous. INSULATED APPLIANCE • To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands. • Within a double-insulated product, two systems of •... -
Page 5: Risk Levels
English Symbol Explanation SYM- SIGNAL MEANING Do not expose the product to rain or moist conditions. WARNING Indicates a potentially hazard- ous situation, which, if not avoided, could result in death Always wear safety goggles or safety or serious injury. glasses with side shields and, as nec- CAUTION Indicates a potentially hazard-... -
Page 6: Unpack The Machine
English 1. Aligh the screw sleeves of the front panel (2) with the screw holes on the upper handle. 2. Tighten them with a Phillips screwdriver (not included). INSTALL THE SPRAY GUN HOLDER WARNING Keep the extension cord clear of the working area. Position the cord so that it will not get caught on lumber, tools, or other obstructions while you are working with a power tool. -
Page 7: Install The Upper Handle
English INSTALL THE UPPER HANDLE INSTALL THE UBERFLEX HOSE 1. Push and turn clockwise one end of the uberflex hose (11) 1. Align the holes on the upper handle (23) and the lower into the inlet coupler (8). handle (24). 2. -
Page 8: Use The Spray Gun
English CHANGE THE SPRAY TIP 1. Uncoil the garden hose (17). 2. Let the water flow through the garden hose (17) for 30 seconds. 3. Turn the water supply off. 4. Install and tighten the end of the garden hose (17) to the WARNING water inlet (8) connector. -
Page 9: Add Detergent
English WARNING SPRAY TIP APPLICATION Read the instructions on the solution bottle to prepare White - Wide fan tip (40° ) detergent. • The white 40 degree tip, referred to as the “fan” tip creates the widest NOTE area of cleaning with relatively low pressure. -
Page 10: Stop The Machine
English STOP THE MACHINE 5.1.1 REMOVE THE SPRAY TIP 1. Release the spray gun trigger. 2. Press down on the ON/OFF switch, once again, to set the power switch to the "OFF" (O) position. WARNING If you do not use the machine： •... -
Page 11: Troubleshooting
English NOTE PROBLEM POSSIBLE SOLUTION CAUSE Use a recommended pump protector to prevent cold weather damage during storage in winter. The machine does The diameter of Replace with a 1” not reach high garden hose is too (25 mm) or 5/8” pressure. -
Page 12: Technical Data
English PROBLEM POSSIBLE SOLUTION Double-insulated construc- CAUSE tion. The motor buzzes, The supply volt- Make sure that on- but the machine age is low. ly the pressure LIMITED WARRANTY does not start. washer is running on the circuit. The pump system 1. -
Page 13: Exploded View
English EXPLODED VIEW ITEM NO. PART NO. DESCRIPTION 31202994 Turbo Nozzle C1102283-00 40°spray Tip C1101968-00 15°spray Tip C1102282-00 25°spray Tip 34139319 Soap Tip C4100577-00 Spray Gun Holder C3200440-00 Upper Handle C3200441-00 Nozzle Storage Panel Assembly 3410835-4 341013231 Power Cord Storage C4200043-00 Frame Food Pad 342011635... - Page 14 English C6200015-00 Power Switch C1101065-00 PCB Board C1101554-00 Spray Wand C1104426-00 Spray Gun 311311635 Uberflex Hose...
Need help?
Do you have a question about the GPW 3000 and is the answer not in the manual?
Questions and answers
Why is water coming out around the water hose
Water may be leaking around the water hose of the GreenWorks GPW 3000 because the connection is not properly secured or there is leakage at the connection point. It is important to ensure the hose is tightly connected and has no leaks.
This answer is automatically generated
cleaning solution to use
The GreenWorks GPW 3000 recommends using only pressure washer-approved detergents. Do not use household detergents, acids, alkalines, bleaches, solvents, flammable materials, or industrial-grade solutions, as they can damage the pump.
This answer is automatically generated
On page 10 of the manual it says to connect to the power supply. I don't see where a power cord goes. Am i missing something?
The power cord on the GreenWorks GPW 3000 connects to the electrical outlet, and extension cords should have watertight connections and be rated for outdoor use. A drip loop is recommended to prevent water from running along the cord to the outlet.
This answer is automatically generated
Having trouble attaching spray wand into trigger handle
To attach the spray wand to the trigger handle on the GreenWorks GPW 3000:
1. Push the end of the spray wand into the trigger handle.
2. Rotate the spray wand clockwise to secure it.
3. Pull on the spray wand to ensure it is properly secured.
This answer is automatically generated
I go to push the power button but unit does not make any noise and there is very little pressure coming out of the wand.
Can I get a copy of the manual for the Greenworks pro 3000 psi?
Where is the unloader valve which seems to be a problem on a brand new 3000 Pro?
