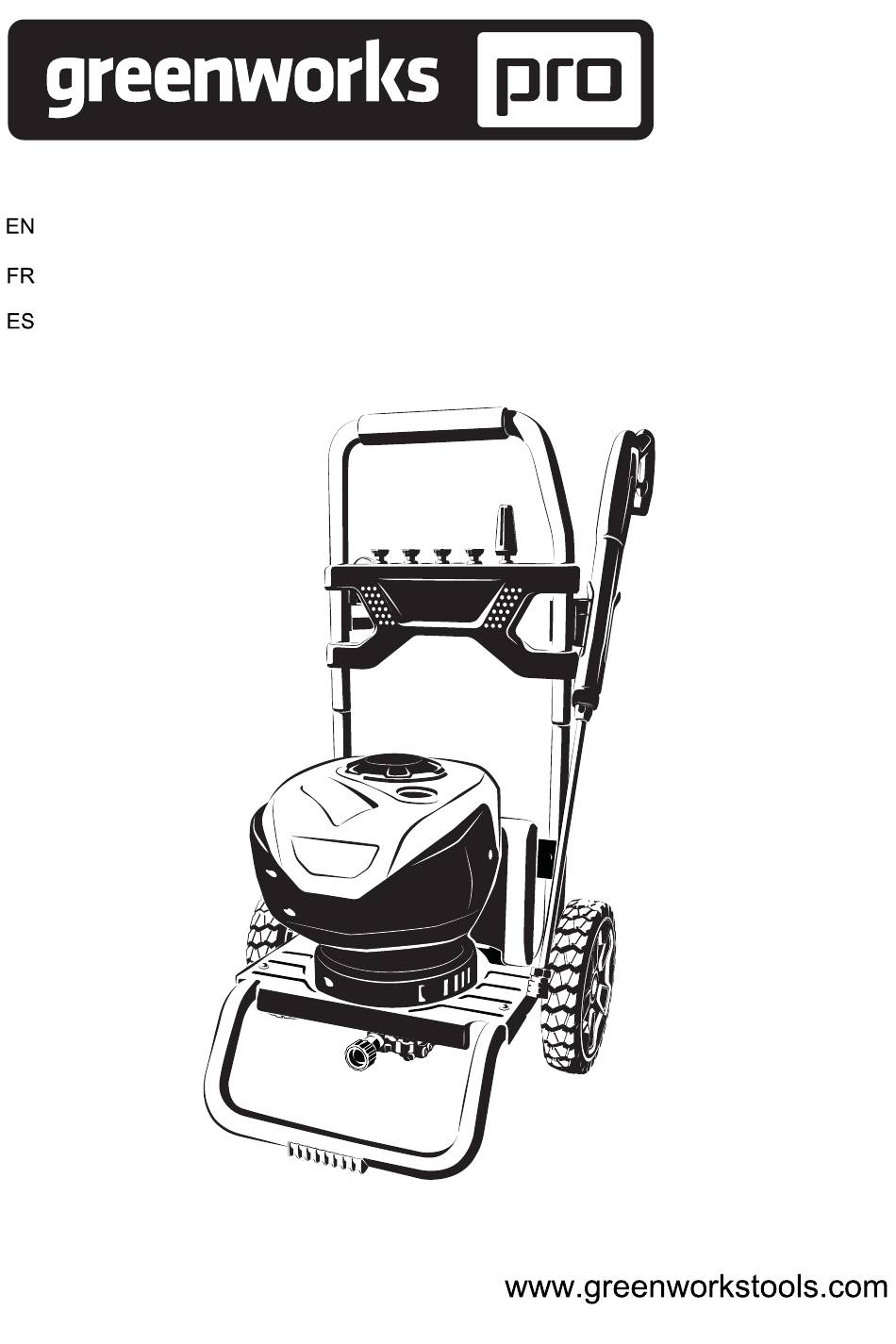

- Page 1 GPW2300 PRESSURE WASHER OPERATOR MANUAL MANUEL DE L’UTILISATEUR LAVEUSE À PRESSION LAVADORA A PRESIÓN MANUAL DEL OPERADOR PWA203...
-
Page 2: Table Of Contents
English Install the upper handle........6 Description......... 2 Install the wheels..........6 Purpose.............. 2 Install the spray wand........6 Overview............2 3.10 Install the ubeflex hose........6 General power tool safety Operation........... 7 warnings..........2 Connect the water supply to the machine..7 General power tool safety warnings.... -
Page 3: Description
English DESCRIPTION • Learn the machine's applications and limitations as well as the specified potential hazards related to this tool by studying this manual. PURPOSE • Never operate the machine with any guard or cover The machine is used to used to clean vehicles, boats, removed or damaged. -
Page 4: Pressure Washer Safety Warnings
English PRESSURE WASHER SAFETY EXTENSION CORDS WARNINGS • Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking • Read all the instructions before using the product. “Acceptable for use with outdoor appliances; store •... -
Page 5: Risk Levels
English 2.10 PROPOSITION 65 Symbol Explanation To reduce the risk of injury from WARNING kickback, hold the spray lance se- This product contains a chemical known to the state of curely with both hands when the ma- California to cause cancer, birth defects or other chine is on. -
Page 6: Unpack The Machine
English UNPACK THE MACHINE INSTALL THE HOSE HOOK WARNING Make sure that you correctly assemble the machine before use. WARNING • If parts of the machine are damaged, do not use the machine. • If you do not have all the parts, do not operate the machine. -
Page 7: Install The Power Cord Storage Arm
English INSTALL THE POWER CORD INSTALL THE WHEELS STORAGE ARM 1. Put an axle (24) through the wheel and handle frame. 2. Attach a washer (23) to the axle (24). 3. Put a cotter pin (22) through the hole of the axle (24). 1. -
Page 8: Operation
English OPERATION CAUTION There must be a minimum of 3 m of free hose between the WARNING water inlet and the water supply. Make sure that all the connections are tight and have no leakage before operation. USE THE SPRAY GUN CONNECT THE WATER SUPPLY TO THE MACHINE For easy operation, please use a self-coiling garden hose (not... -
Page 9: Add Detergent
English WARNING SPRAY TIP APPLICATION Before you change the spray tip: Turbo nozzle tip 1. Pull the spray gun trigger to release water pressure. • The nozzle rotates in a zero to 15 de- gree spray pattern in a circular mo- 2. -
Page 10: Start The Machine
English NOTE WARNING Soap/detergent can only be applied with this machine when If you do not use the machine： the black nozzle(75 degree) is installed. • Stop the machine. • Turn the water supply off. 1. Put the machine vertically on a flat surface. •... -
Page 11: Transportation And Storage
English TROUBLESHOOTING If there is too much pump pressure, the spray tip can become clogged, you can feel a pulsing sensation while you pull the spray gun trigger. PROBLEM POSSIBLE SOLUTION CAUSE 5.1.1 REMOVE THE SPRAY TIP The motor does The power button Set the power 1. -
Page 12: Technical Data
English PROBLEM POSSIBLE SOLUTION PROBLEM POSSIBLE SOLUTION CAUSE CAUSE The water supply Open water supply The motor buzzes, The supply volt- Make sure that on- is not sufficient. fully. Check gar- but the machine age is low. ly the pressure den hose for kinks, does not start. -
Page 13: Limited Warranty
English Mooresville, NC 28115 L3Y 8K3 Double-insulated construc- tion. LIMITED WARRANTY YEAR AÑOS LIMITED WARRANTY GARANTIE LIMITÉE GARANTÍA LIMITADA Greenworks hereby warranties this product, to the original purchaser with proof of purchase, for a period of three (3) years against defects in materials, parts or workmanship. Greenworks, at its own discretion, will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. -
Page 14: Exploded View
English EXPLODED VIEW 13 14 15 Item No. Part No. Description C1101578-00 Cord retainer 322011635 Screw 341101936 Gun holder 322011628 Screw 311201936 Upper handle assembly... - Page 15 English 333011936 Hose hook C1101575-00 Front panel assembly 364103615 Power cord 342011635 341031936 Soap tank 34900365 Suction hose C1101577-00 Wheel assembly 331041936 Lower handle 32222301A 342111936 Shock pad 341161635 Foot pad C1101581-00 Accessory assembly C1101574-00 Decorative cover 341081936 Left housing 311601936 Controller 341091936...
