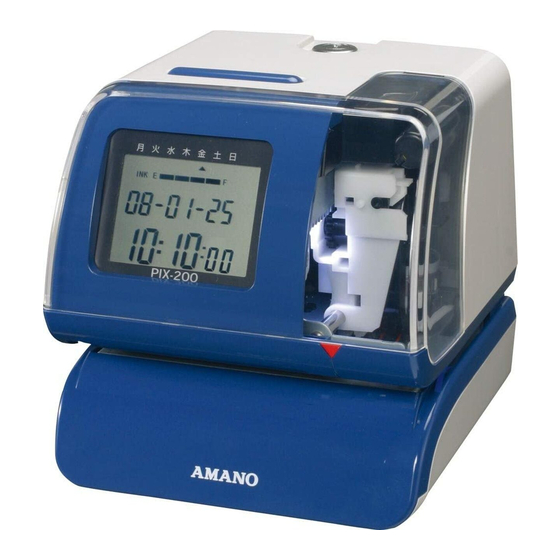

PIX-200 Time Signal Option Distributor's Installation and Operation Manual...
Page 2
Proprietary Notice This document contains proprietary information and such information may not be reproduced in whole or part without the written permission from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements, which may not be reflected in this document.
Description of Controls For PIX-200 (function buttons) ....1-8 Chapter 2: Configuring The Time Signal ...........2-1 How To Set the Weekly Program (20 steps) ........2-1 How To Set the Signal Duration (from 00 to 59 seconds) ....2-2 Distributor's PIX-200 Time Signal Option Installation and Operation Manual...
Page 4
This page intentionally left blank. Distributor's PIX-200 Time Signal Option Installation and Operation Manual...
Cincinnati, Inc. authorized service personnel and dealers should have access to this manual. Before attempting to install and use the Amano PIX-200 Time Signal Option, please carefully review Chapter 1: Overview and Installation. This chapter of the manual covers the specifications, accessories, Time Signal Option installation, external signal connections, and description of controls for PIX-200.
Time Signal Option Installation The following describes a step-by-step procedure for the installation of the Time Signal Option in a PIX-200. Make sure the power to the PIX-200 clock is unplugged while you install the PCB Time Signal Option. When the installation is complete, put the back plate and clock cover on and plug in the power to verify the regular LCD display is functioning properly.
Page 7
8. Insert the Time Signal PCB (PXR-1) into the cavity in the bottom of the PIX-200 as illustrated in the following figure – bottom view (the PCB assembly is notched so the assembly can only be inserted into the cavity in one direction).
Page 8
9. The PXR-1 PCB for the Time Signal Option will snap into place under a tab (see the following figure – bottom view). Use care to push the tab aside if necessary. Distributor's PIX-200 Time Signal Option Installation and Operation Manual...
Page 9
13. Be sure the flat ribbon cable also goes under the black plastic arm (see above figure). Place the option cover back on, and screw in the two (2) screws to tighten the cover down. Distributor's PIX-200 Time Signal Option Installation and Operation Manual...
15. Reattach the full power battery reserve if that option was installed. (Refer to PIX-200 Full Power Battery Reserve Instructions). 16. Do not put the PIX-200 cover back on until the configuring time signal procedure in Chapter 2 is complete. Plug the PIX-200 into a 110/120 AC power source, and the LCD display window will show the date and time.
Page 11
(see the following figure). Reattach the back plate, ensuring the tab is fully inserted. Refer to PIX-200 Operation Manual "Wall Mounting" if the PIX-200 is wall mounted.
External Signal Connections The PIX-200 time signal option provides a single external signal relay circuit that enables you to activate an audible device such as a bell or buzzer. The relay contacts of the circuit are normally open and should not exceed Class 2 circuit requirements (30 VAC RMS at 3A, or 30 VDC at 3A).
Chapter 2: Configuring The Time Signal Make sure the AC power is plugged in while changes are made to the PIX-200 settings. Replace the cover, once all setting changes are performed, to exit from the setup program mode and return to normal operation.
4. Put the clock cover back on to return back to normal operation. MON TUE WED THU FRI SAT SUN △ △ △ △ △ △ △ △ △ △ No. Count △ P388 8888 △ ► 8E nd 88 △ Distributor's PIX-200 Time Signal Option Installation and Operation Manual...
