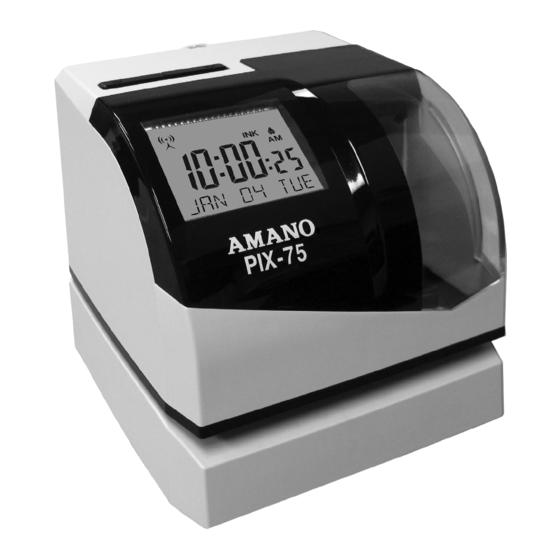

  • Page 1 PIX-75 Atomic Time Clock Diagnostic Guide...
  • Page 2 Proprietary Notice This document contains proprietary information and such information may not be reproduced in whole or part without written permission from Amano Cincinnati, Inc., 140 Harrison Ave., Roseland, New Jersey 07068-1239. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements, which may not be reflected in this document.

  • Page 3: Table Of Contents

    Reset Settings to Factory Defaults (Code 32) ............4    Show Advanced Diagnostic Settings (Code 65) ........... 4    Crystal Adjustment ..................... 4    Show Total Prints (Code 98) ..................4    Invalid Codes ....................... 4  PIX-75 www.amano.com/time  1-800-253-9836...
  • Page 4 This page intentionally left blank. www.amano.com/time  1-800-253-9836 PIX-75...

  • Page 5: Diagnostics

    Diagnostics The diagnostic mode of the PIX-75 clock can be entered by removing the top cover and using the button programming mode. PROGRAM With the cover removed, press the button to begin button program mode. – Press the button to change the current programming mode until...

  • Page 6: Voice Board Version - Others Sub Menu

    [See right-hand figure for example]. PROGRAM ENTER 6. Press the button once to exit and go back to the previous menu. Replace the cover to return the clock back to normal operation. www.amano.com/time  800-253-9836 PIX-75...

  • Page 7: Lcd Test - Others Sub Menu

    LCD Test - Others Sub Menu Use this diagnostic to check the PIX-75 LCD display by turning on all segments. PROGRAM 1. With the cover removed, press the button to begin button program mode. – 2. Press the button to change the current programming mode until...

  • Page 8: Atomic Clock Diagnostic On (Code 11)

     Show Total Prints (Code 98) By entering this code, the clock will display the total number of prints the PIX-75 clock has printed since it was manufactured. This count can’t be reset.  Invalid Codes By entering any other code than mentioned above, the clock will display a message “ERROR”...
  • Page 9 Search the Knowledge Base Find answers to frequently asked questions, and general product information such as a more detailed owner’s manual for this product at: http://tkb.amano.com/phpkb/ Service and Support Contact us by; phone @ 800 253-9836, Mon – Fri. 8:15 am – 5pm EST e-mail: tkb@amano.com...
