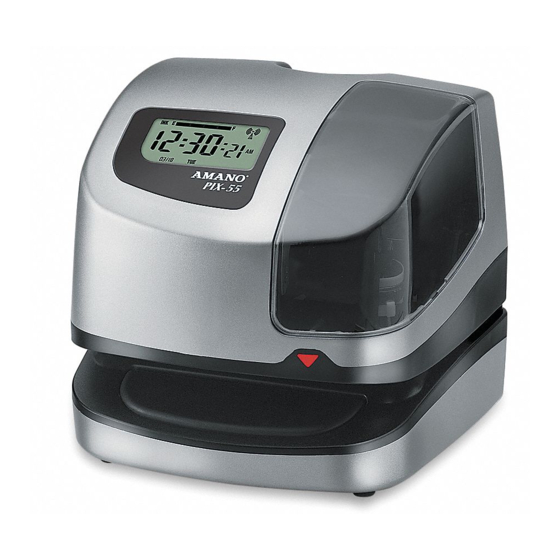

Amano PIX-55 Operation Manual

Atomic time clock
Hide thumbs Also See for PIX-55:
Table of Contents

Advertisement

Quick Links

All manuals and user guides at all-guides.com
PIX-55
Atomic Time Clock
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIX-55 and is the answer not in the manual?

Questions and answers

Related Manuals for Amano PIX-55

Summary of Contents for Amano PIX-55

  • Page 1 All manuals and user guides at all-guides.com PIX-55 Atomic Time Clock Operation Manual...

  • Page 2: Proprietary Notice

    Proprietary Notice This document contains proprietary information and such information may not be reproduced in whole or part without the written permission from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements, which may not be reflected in this document.

  • Page 3: Warranty Notice

     The HOUR button advances the hour in the display by increments of 1.  The MINUTE button advances the minutes in the display by increments of 1.  PIX-55 www.amano.com/time 1-800-253-9836...

  • Page 4: Making A Test Print

    Making a Test Print 1. Make sure the PIX-55 is plugged in. 2. Insert a piece of paper or time card into the PIX-55. The clock will automatically print YEAR, MONTH, DATE and TIME with AM or PM. 3. If the imprint is satisfactory, the PIX-55 is ready for use.
  • Page 5 3. Press the MINUTE advance button until the correct minute appears. Note – You must follow this procedure if you are installing the PIX-55 in a different Time Zone from where it is currently programmed. Setting the Month and Date...
  • Page 6 Press the ENTER button. Press the CHANGE button until the desired print direction (Right Side) or (Left Side) flashes in the display, then press the ENTER button. Press the PROGRAM button to exit.  www.amano.com/time 1-800-253-9836 PIX-55...
  • Page 7 DST Begin Date that can be adjusted. Press the CHANGE button until the year shows the correct year for the beginning year for the DST modification. Press ENTER. The date flashes.  PIX-55 www.amano.com/time 1-800-253-9836...
  • Page 8 DST modification. 11. Press ENTER. 12. When the display flashes the correct selection, press the ENTER button, then the PROGRAM button, to save changes and exit the DST function.  www.amano.com/time 1-800-253-9836 PIX-55...
  • Page 9 Press the PROGRAM button to exit. Wall Mounting Placement considerations: Remove the Cover and then remove the Back Plate by pressing the tab on the bottom of the clock as shown in the right- hand figure.  PIX-55 www.amano.com/time 1-800-253-9836...
  • Page 10 If your PIX-55 is located in an area that cannot receive the Atomic time signal, DO NOT be concerned, since Searching Found the PIX-55 is able to accurately keep the time using its quartz for signal signal mechanism (plus or minus three seconds per week).
  • Page 11 (0). Press ENTER to accept it. When the display flashes the correct code (03) for disable or (04) for enable, press ENTER. Press the PROGRAM button to exit.  PIX-55 www.amano.com/time 1-800-253-9836...

  • Page 12: Ribbon Cartridge Replacement

    Locate the ribbon cradle. Note: You MUST have the key to remove the cover for ribbon replacement. The Amano PIX-55 clock pictured to the right, shows a typical layout with the ribbon cartridge installed in the cradle.
  • Page 13 2 plus years. The Amano Part number for a set of PIX-55 keys is AJR-201150 Note – A key is required to unlock the top cover which allows you access to the ribbon cartridge for replacement and/or the programming buttons.

  • Page 14: Error Messages

    To remove the cover, insert the key provided (Amano Part # AJR-201150), turn clockwise and lift to remove. For error messages E I through E r, unplug the clock before checking to see that the carriage is not stuck or jammed.
  • Page 15 The configuration is still programmed in the clock. Unlock cover and remove. Set PIX-55 on side with the ribbon side up. Press the Home Sensor Reset button to reset the printer carriage...
  • Page 16 Call us at: 1 (800) 253-9836  Monday – Friday 8:00am – 5:00pm (EST) Clearing the Memory on the PIX-55 – “Prt er” Error Message Before you begin, press the reset button on the bottom of the unit. The reset button is located in the back right corner on the bottom of the clock.
  • Page 17 However, if the error message returns, please call 800-253-9836 for additional assistance. Cleaning Do not use any chemical solvents or oils to clean or lubricate your PIX-55. This will damage your clock. To clean the inside of your clock, simply blow it out with air.
  • Page 18 All manuals and user guides at all-guides.com NOTES  www.amano.com/time 1-800-253-9836 PIX-55...
  • Page 19 All manuals and user guides at all-guides.com...
  • Page 20 All manuals and user guides at all-guides.com www.amano.com/time AJR-224503 Copyright © 2009 Amano Cincinnati, Inc. 07/09/0...
