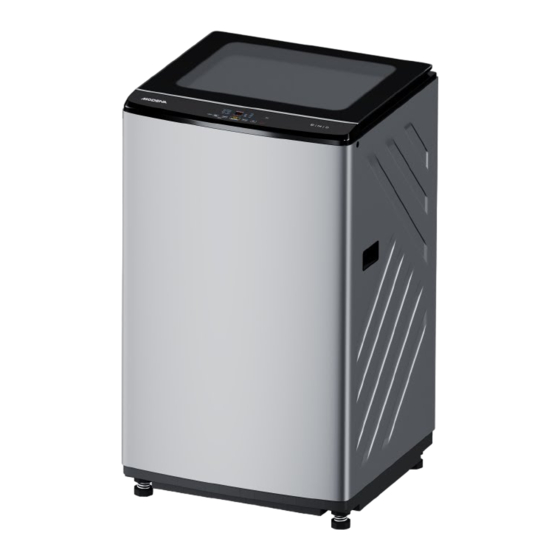

- Page 1 User Manual Book Washing Machine WT 1120 UFWH WT 1120 UFGY...
-
Page 3: Table Of Contents
Cleaning the Lint Filter Tub Clean Cleaning the Inlet Valve Part 6: Troubleshooting Part 7: Specification This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com. -
Page 4: Part 1: Safety Information
PART 1: SAFETY INFORMATION Read the user manual book carefully! • Do not try to install or turn on the unit without having read the indicated safety precautions in this manual. • Do not disassemble the electrical parts of this appliance. Any repairs done by an unauthorized person may cause serious injuries or properties incident. - Page 5 • Do not pull out or insert the plug with wet hands to avoid electric shock. • Do not fasten, twist or tie the power cord. if the power cord is damaged, it should be replaced by the manufacturer, service technician or a qualified person to prevent any risk.
-
Page 6: Environmental Notice
Environmental Notice The packaging material used is recyclable. We recommend that you separate plastic, paper and cardboard and give them to recycling agents. According to WEEE (Waste of Electrical and Electronic Equipment) guidelines, waste from electrical and electronic devices should be collected separately. -
Page 7: Part 2: Name Of Parts
PART 2: NAME OF PARTS Liquid Power detergent detergent Inlet hose Door Top Cover Inner Tub Lint Filter Power plug Pulsator Control panel Power cord Cabinet Drain hose Bottom base Adjustable feet Above picture is for reference only. Actual product may have slight difference... -
Page 8: Installation
PART 3: INSTALLATION GUIDE Installation • The appliance should not be installed in an environment below 0°C. Do not install or place the washing machine outdoors. • Leave some space at least 10 cm between the appliance and the surrounding objects or wall •... -
Page 9: Drain Hose Installation
• Press the four top corners of the appliance, the appliance should not be able to wobble. If the appliance wobbles, readjust the feet • maximum recommended surface angle is no more than 2°. Drain Hose Installation Before using the appliance, make sure the drain hose is properly installed If the drain hose needs extension, the <... -
Page 10: Inlet Hose Installation
Inlet Hose Installation Faucet Types Types of faucet that can and can’t be used are as follows: • Type A: This faucet is suitable for washing machine • Type B: This faucet is suitable, however the front end should have minimum length 10 mm. - Page 11 your faucet do not have threads, use the provided adapter. Release the adapter from the inlet hose. Use philips (+) screw to loosen the 4 (four) screws of adapter (a). Unscrew the locking nut (b) so as there is a 5 mm gap between the nut and adapter. Insert adapter (a) to faucet end and tighten the 4 (four) screws.
-
Page 12: Part 4: How To Use
Inlet water valve Inlet water hose Inlet water hose PART 4: HOW TO USE Precautions Before Washing Install the power plug to the main power socket 2. Make sure the inlet hose is installed properly and there is no leakage. Open the water faucet. -
Page 13: Washing Instruction
Washing Instruction Sorting Laundry Sort your laundry based on below criteria: • Care Label: Sort your laundry based on cotton, mix, synthetic, silk, wool, and rayon • Color: Separate white and colored clothes. • Size: Mix different size items to maximize washing performance. •... - Page 14 • Use powder or liquid detergent. Do not use soap, it can leave residue to the tub • Wash white socks and white clothes with detergent and brush them. WARNING! Make sure the laundry is completely inside the tub. Scattered laundry can cause damage to the clothes and appliance.
- Page 15 WARNING! Do not use detergents which tend to solidify or solidify. Such detergent will remain after the rinse process, blocking the drain opening.
-
Page 16: Control Panel
Control Panel Note: Control panel picture is for reference only, actual product may have slight difference POWER ON/OFF Press once to turn the washing machine On/Off. 2. START/PAUSE Press to start or pause the washing program 3. PROCESS INDICATOR The four process “Soak”, “Wash”, “Rinse”, “Spin”; will be displayed accordingly. - Page 17 5. DELAY END Useful delay program if you want to schedule a wash at a certain time. This delay program can be set up to 24 hours. Press and hold the WATER LEVEL button for 3 seconds to enter the delay program setting mode.
-
Page 18: Part 5: Maintenance
PART 5: MAINTENANCE Cleaning & Maintenance Periodic cleaning & maintenance can prolong the life time of your appliance 2. Ensure the power cord is unplugged before performing cleaning and maintenance activity 3. Please wipe the body with a soft and clean cloth every time after the washing machine is used. -
Page 19: Tub Clean
Tub Clean It is recommended to perform tub washing so that the washing tub is always kept clean. Use the TUB CLEAN program to wash the tub at least once a month. Cleaning the Inlet Valve Remove the water inlet hose from the washing machine 2. - Page 20 Problem Possible Cause Recommended Action Door cannot be opened • • Program is running Wait until the program is finished E1 – Spin failure • • The laundry is Rearrange the unbalanced in the laundry so that it is washer balanced •...
-
Page 21: Part 7: Specification
PART 7: SPECIFICATION Model WT 1120 UF** Type Top Load Wash Capacity (kg) 11.0 Max. spin speed (rpm) No. of programs Inlet pressure (MPa) 0.03-0.80 Power Input (Watt) Voltage & Frequency 220-240V~50Hz Product dimension (W×D×H)(mm) 550×582×940 Product weight (kg) **WH = White; GY = Grey; SR = Silver Design and specification can change without prior notice to improve the quality of the product. - Page 22 01/23 PT MODENA INDONESIA Jl. Industri Raya I Blok D-8, Jatiuwung, Tangerang 15135...
