Getting Started

Installing the TekConnect

Probe

The TekConnect probe features a spring-loaded latch that provides audible and

tactile confirmation that a reliable connection has been made to the TekConnect

Probe Interface Module.

NOTE. It is not necessary to power off the mainframe when removing or

installing a TekConnect probe.

To connect a TekConnect probe to the TekConnect Probe Interface Module,

perform the following tasks:

1. Slide the probe into the TekConnect receptacle on the TekConnect Probe

Interface Module. The probe snaps into the TekConnect Probe Interface

Module when fully engaged. See Figure 6.

2. To release the probe from the TekConnect Probe Interface Module, grasp the

compensation box, press the latch button, and pull out on the probe.

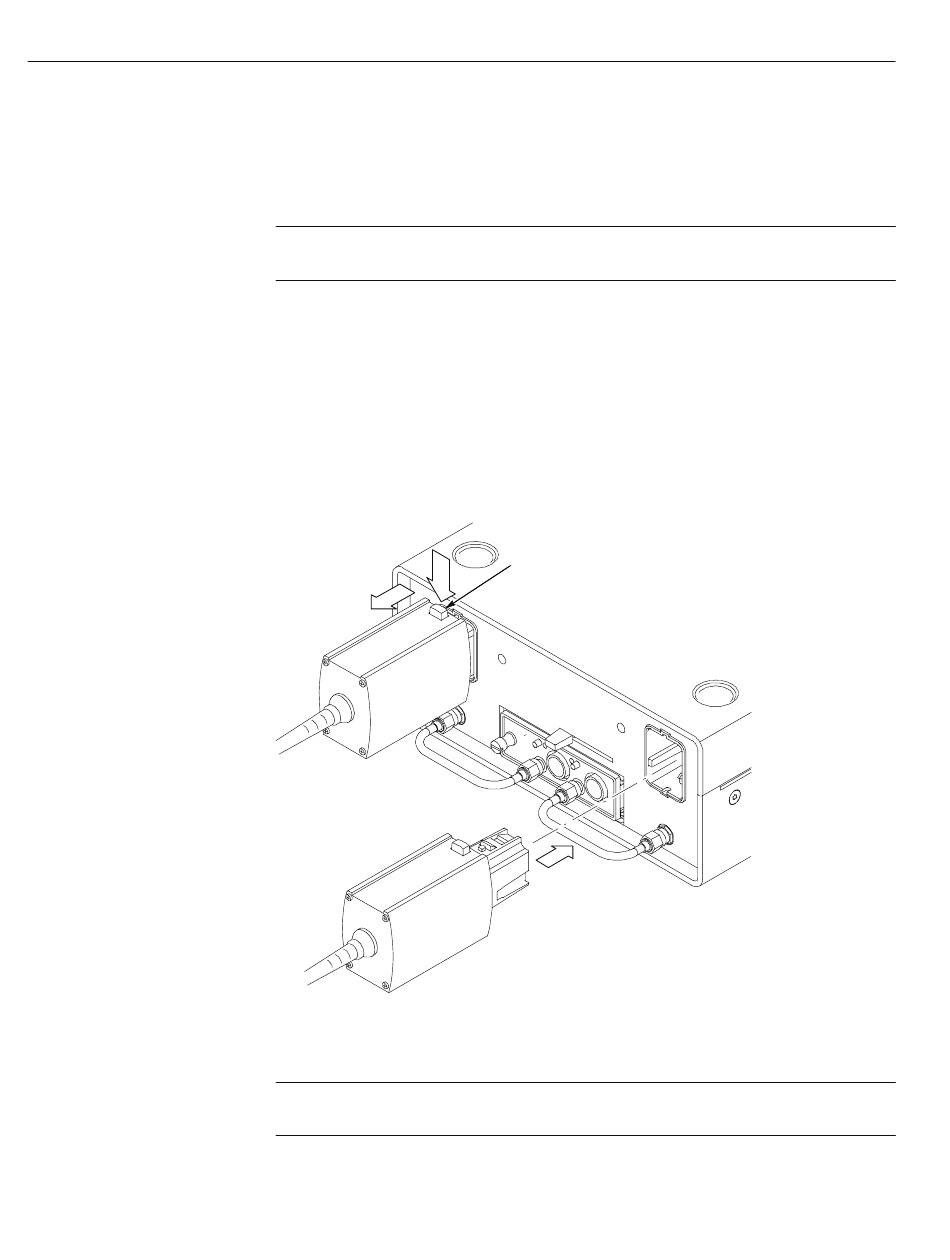

Figure 6: Installing TekConnect probes

NOTE. Use thumb screws to secure the probe on those models that have the

option.

80A03 TekConnect Probe Interface Module Instruction Manual

Latch button
