Table 1: 80A03 Features And Standard Accessories - Tektronix 80A03 Instruction Manual

The TekConnect Interface
Standard Accessories

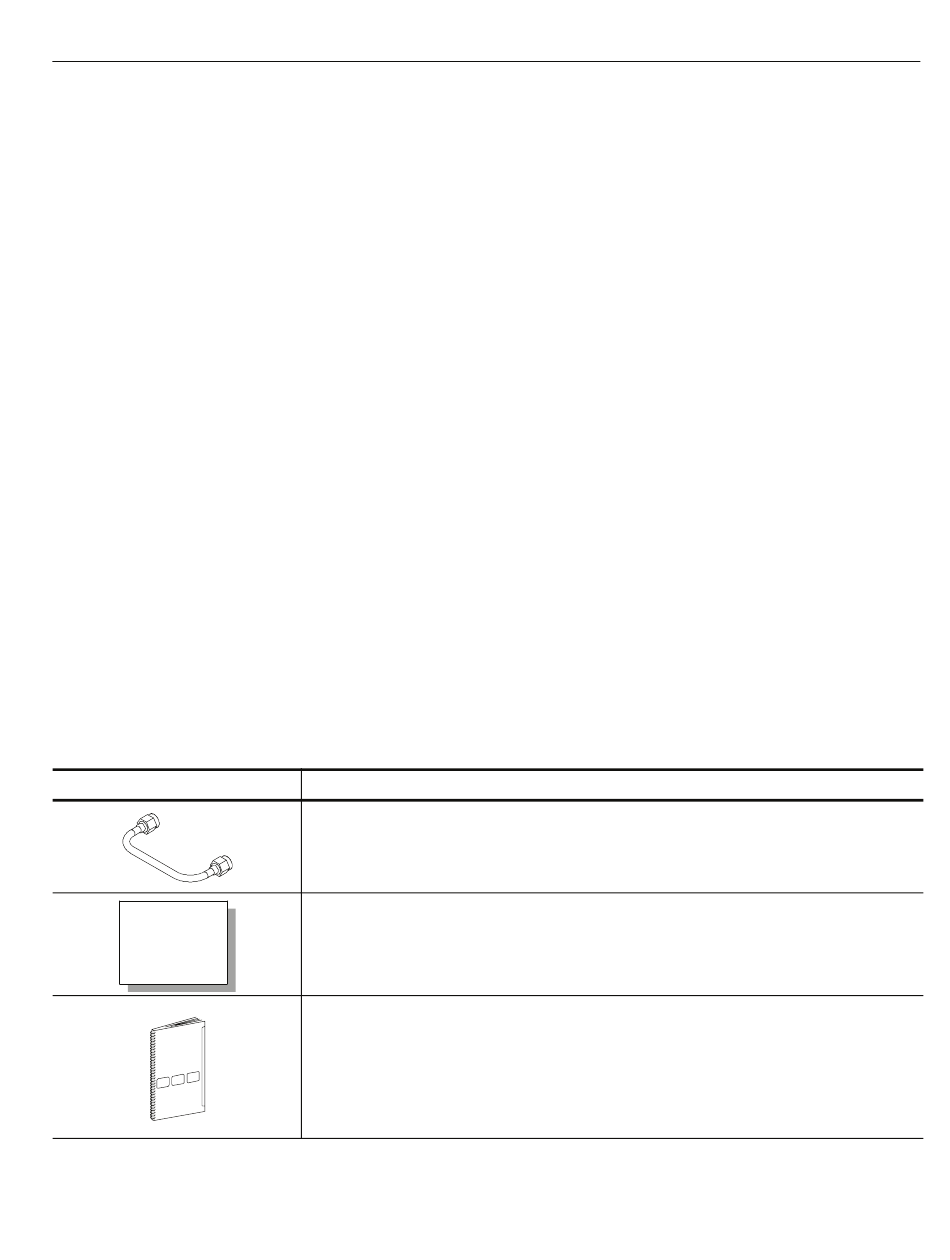

Table 1: 80A03 features and standard accessories

Accessory
Statement of
compliance
80A03 TekConnect Probe Interface Module Instruction Manual
The 80A03 disables the Probe Power interface on the front of the sampling
modules. Do not use the 80A03 with probes that connect directly to the Probe
Power, such as the P6209 and P6207.
There is also no support for TekProbe Level 2 legacy probes that utilize the
TCA-1MEG, TCA-BNC, and TCA75 adapters.
Power for the 80A03 TekConnect Probe Interface Module, sampling module, and
TekConnect probes is supplied through the cable that connects the TekConnect
Probe Interface Module to your mainframe. The same cable also provides a data
and communications path from the probe contact pins through the interface to
the mainframe. Power, signal, offset, and probe characteristic data transfers
through this interface.
When a probe is connected, the TekConnect Probe Interface Module reads
information from the probe, identifies the device, and turns on the appropriate
power supplies.
Table 1 lists the 80A03 TekConnect Probe Interface Module features and
standard accessories.
Description
Semi-Rigid Cables. Consists of two semi-rigid SMA-to-SMA cables for connecting the electrical
sampling module to the TekConnect Probe Interface Module, Tektronix part number
174-4857-XX.
Statement of compliance. A certificate verifying the product was assembled and verified using
established procedures and work instructions. When applicable, test equipment is traceable to
known standards.
Included with product at initial shipment. This accessory cannot be ordered.
Instruction Manual. Provides instructions for operating and maintaining the 80A03 TekConnect
Probe Interface Module, Tektronix part number 071-1298-XX.
Getting Started
3
