Atlas Copco smartHEAD Installation Manual

smartHEAD Installation Guide

smartHEAD INSTALLATION GUIDE

Index:

Installing The Smarthead On The Stwrench ................................................................................. 2

Installing The Smarthead On The Mrtt-C ................................................................................... 3

Refer to the check list included for the package list.

Warning: Read the STwrench Product Instruction (No. 9836 4489 00) and MRTT-C User Guide (No.

9836 5984 01) before installing and using the product.

The module is electrostatic sensitive device; DO NOT touch any electrical contact to avoid risk of

module damages.

If possible, before handling any STwrench modules, touch with your hand a big metallic object,

in order to avoid electrostatic discharges while handling the modules.

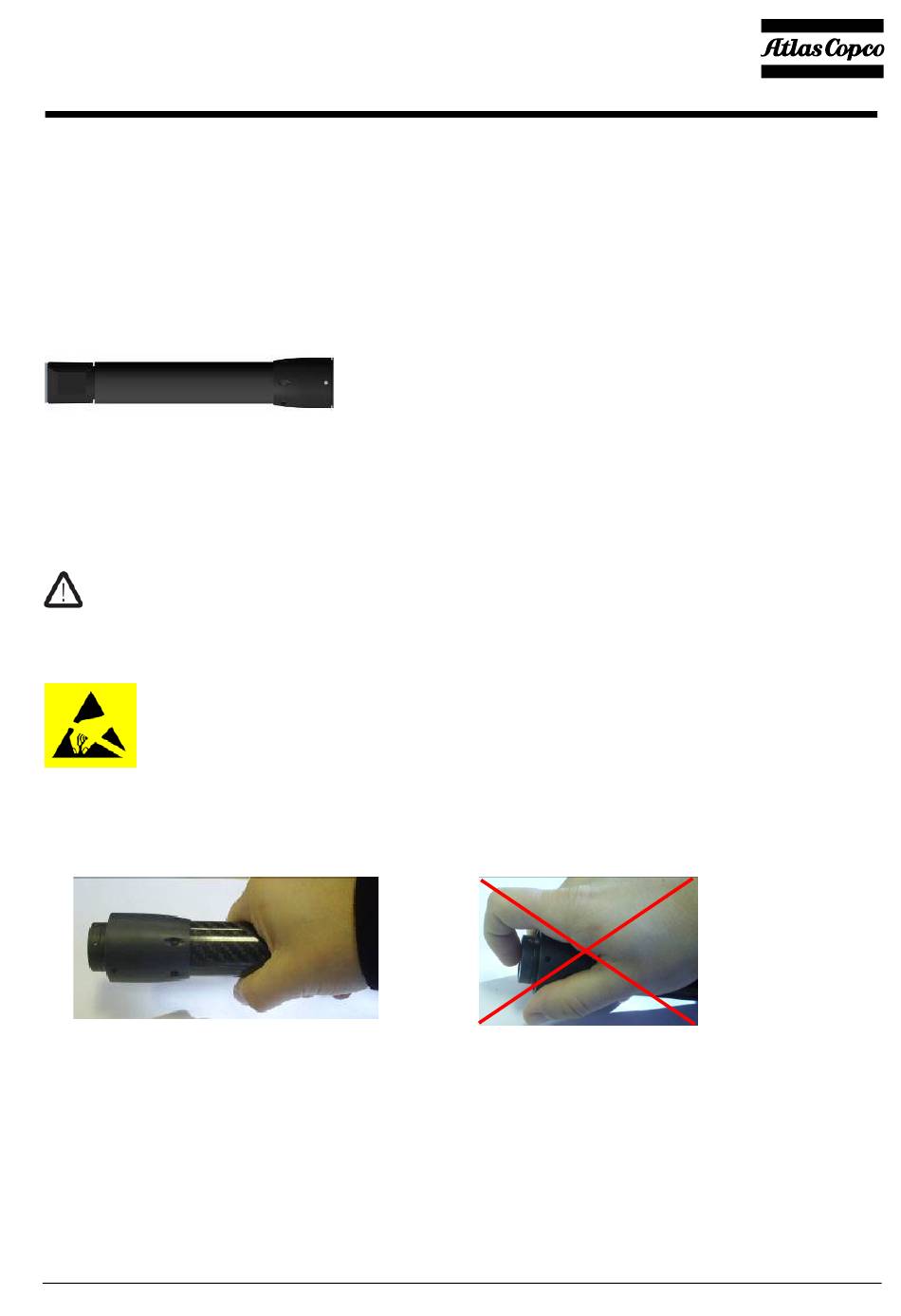

Observe the following precautions to handle the module:

Correct handling:

1 (4)

GENERAL

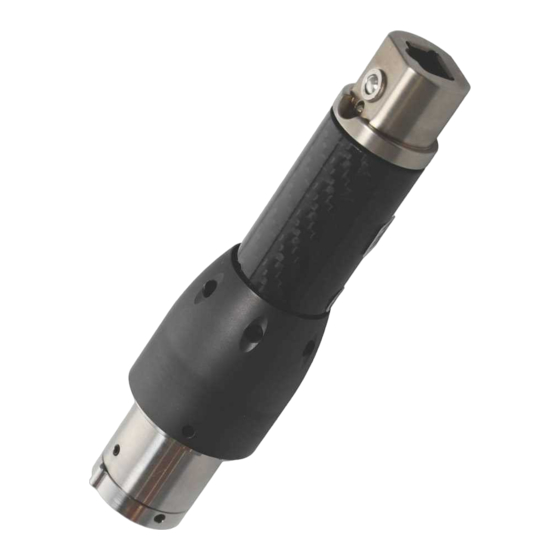

The smartHEAD, to be installed on the STwrench and MRTT-C,

defines the wrench capacity. You can install or change the smartHEAD

without the need of any further settings or calibration: the STwrench

and STanalyser loads automatically the transducer data at the power

on.

NOT correct handling:

9836 4569 01 Revision 4

Table of Contents

Do you have a question about the smartHEAD and is the answer not in the manual?

Page 1 GENERAL The smartHEAD, to be installed on the STwrench and MRTT-C, defines the wrench capacity. You can install or change the smartHEAD without the need of any further settings or calibration: the STwrench and STanalyser loads automatically the transducer data at the power PACKAGE Refer to the check list included for the package list.
Page 2 Guide Reference PIN NOTE: there is only one way to insert the smartHEAD into the wrench controller. The guide and the reference pin must be inserted in the relative housings; do not force them in other position. TURN ON THE STwrench...
Page 3 Installation Guide Date Selecting No the first date is not set, but the smartHEAD is blocked. The messsage above is shown again at the next STwrench power on. IF THE smartHEAD IS NOT PROPERLY INSTALLED THE FOLLOWING MESSAGE IS SHOWN:...
Page 4 Guide Reference PIN NOTE: there is only one way to insert the smartHEAD into the MRTT-C. The guide and the reference pin must be inserted in the relative housings; do not force them in other position. CONNECT THE MRTT-C TO THE STanalyser / STa 6000 AND TURN ON THE STanalyser / STa 6000...
