Beok Controls TGW60 Series Manual

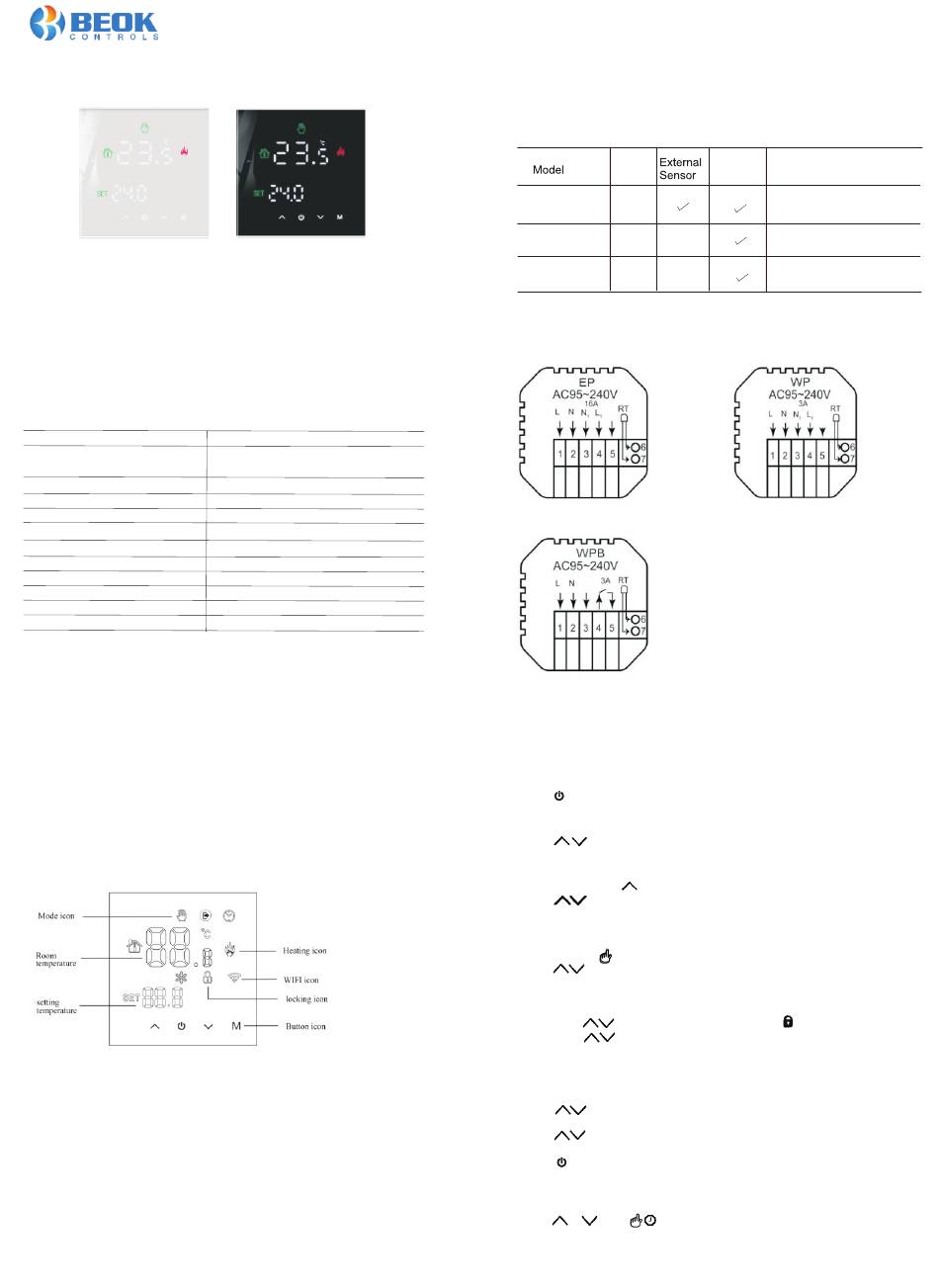

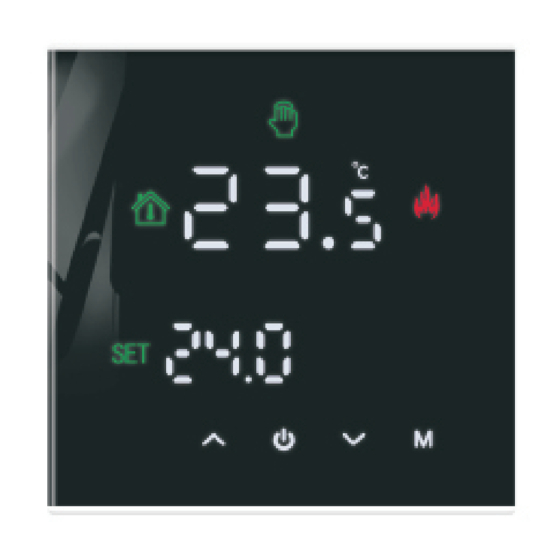

TGW60 GLASS SCREEN THERMOSTAT

I. Product Summary:

TGW60 series thermostats are luxurious programmable thermostat with
large screen display.It is applied to temperature control of industrial,
commercial and domestic room,and start of control heating applicance,
especially used in the floor-heating systems.

II. Technical Parameter:

Power Supply
Current Load
Power Consumption
External Material
Sensing Element
Set Temp. Range
Floor Set Temp. Range
Accuracy
Dimension
Ambient Temp.
Storage Temp.
Timing Error
III.Main Functions and Characteristics
1. Model design same as a cell phone
2. Large screen display and touch button
3. Power-off memory function
4. Real-time data save function
. 5 5+2 or 6+1or 7days six periods program schedule
6. Anti-freezing function
7. 3 sensor modes can be setting
8. Selectable 80mmx80mm European hidden box.
9. With child lock function

IV. User Interface Explanation

V. Model Definition

EP: For Electric Floor Heating System, 16A
WP: For Water Floor Heating System, 3A
WPB: For Gas Boiler Heating System, 3A
For example: TGW60-EP TGW60-WP
100 ~ 240V
≤3A（water heating/gas boiler)
≤16A(electric heating)
<1W
PC+ABS (flame retardant）
NTC
5-95℃
5-60℃
±1℃
86x90x14mm
0-45℃,5-95％RH(Non-condensing）
-5~55 ℃
<1％
TGW60-WPB

VI. Model Spec

Current
Loading
16A
TGW60-EP
TGW60-WP 3A
3A
TGW60-WPB
VII.Wiring Digram
TGW60-EP
TGW60-WPB

VIII. Thermostat Operation Instruction

1. Setting Power on/off
Press to turn on/off the power.
2. Setting Temperature
Press to set the temperature.
3. Setting the Clock
Long press M and to set minute, hour and week.
Press for adjusting.
4. Setting the Manual Mode.
Manual mode means non-programmable mode.
Press M then
will display in the screen, it is in manual mode.
Press to set the temperature.
5. Setting the Child Lock
Long press to enter into child lock mode,
Long press again, the child lock will be disappeared.
6. Setting the Programmable Mode.
Press and hold M into programmable mode. 12345 and time will display.
12345 display in the position of week means 5+2;
Press to change the time.
Press M to do the temperature adjustment.
Press to change the temperature;
Press M to do the next period adjustment.
Press to exit and save.
If you want to make temporary adjustment in any period,
press or , then will display. When finish the setting, all will
confirm automatically.
Week
Controlled Objects
Program
For electric heating appliances
For water heating appliances
For gas boiler
TGW60-WP
will display.
