Plantronics CS540-XD - Wireless Headset System Quick Start Guide

Select Wearing Style

Choose headset wearing style, using guide to assemble.

Over the ear OR Over the head

Charge Headset

1. Plug one end of power supply into power jack on back of the base and other end into working power outlet.

2. To charge, dock headset in base for minimum of 20 minutes.


Connect Desk Phone

Connect cables from desk phone to base.

Make a Call

1. While wearing headset, tap call control button.

2. Remove the desk phone handset.
3. Dial test call from desk phone.

NOTE You may also call the automated sound test at 800-317-8308. It's the quickest way to test and optimize your system.

4. End call by pressing headset call control button and hang up the handset.

Troubleshooting Tip: If you do not hear a dial tone, adjust the slide switch (A–G) until you do. Default setting A works for majority of desk phones.

NOTE For remote call control capability (HL10™ lifter or EHS™ cable), see plantronics.com/accessories.

NEED MORE HELP?
Technical support
plantronics.com/support

System Features

1. Volume/Mute button
   Increase volume Press up*
   Decrease volume Press down*
   *If headset worn on the left side, up and down positions are reversed.
   Mute Press in (base LED solid red)
2. Call Control Button
   Answer/end call Tap
3. Narrowband/Wideband Audio Switch
   Black Narrowband Audio
   Yellow Wideband Audio (desk phone must be capable of wideband audio)
   NOTE Talk time will be reduced when operating in wideband mode.
4. Auto Answer Switch
   Black (off) Tap call control button to place or answer call
   Gray (on) Lift headset from base to place or answer call

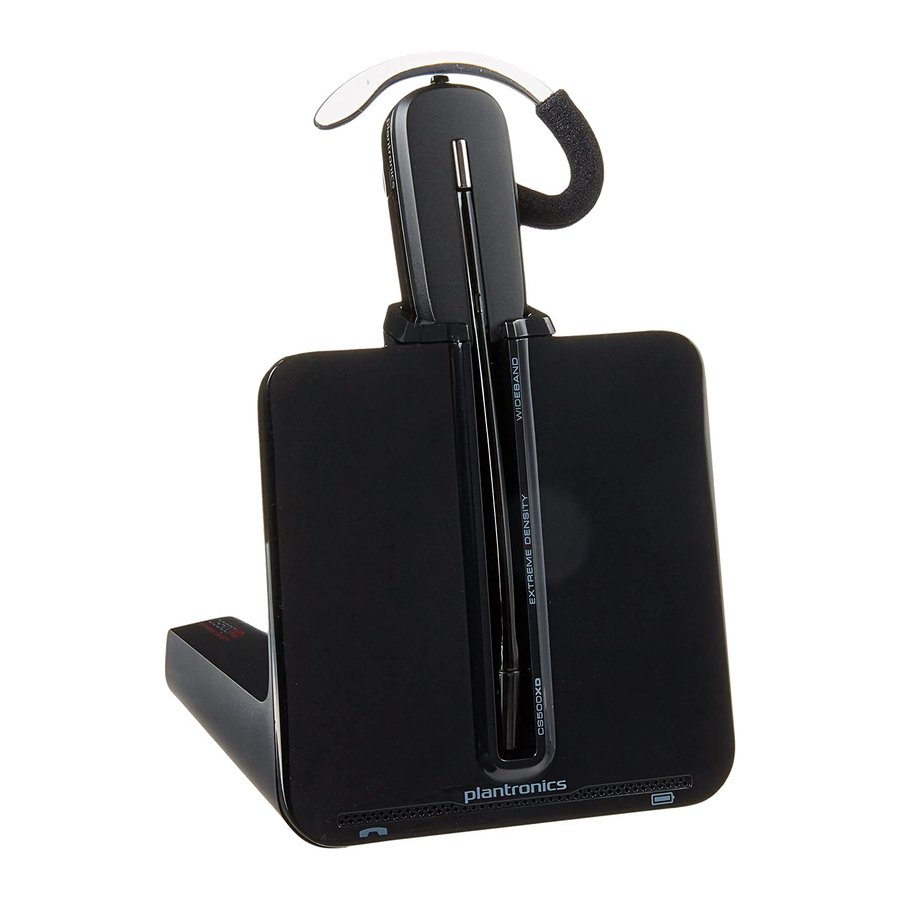

Your CS540-XD consists of a C054-XD1 base and a WH500-XD1 headset.
