4 Assembly and installation

Comply with following guidelines to ensure correct assembly of the coil. The coil

must be mounted securely to the valve, ﬁ tting seals on each side and a nut. The

nut must be tightened to the torque value deﬁ ned in accordance with the valve

installation context.

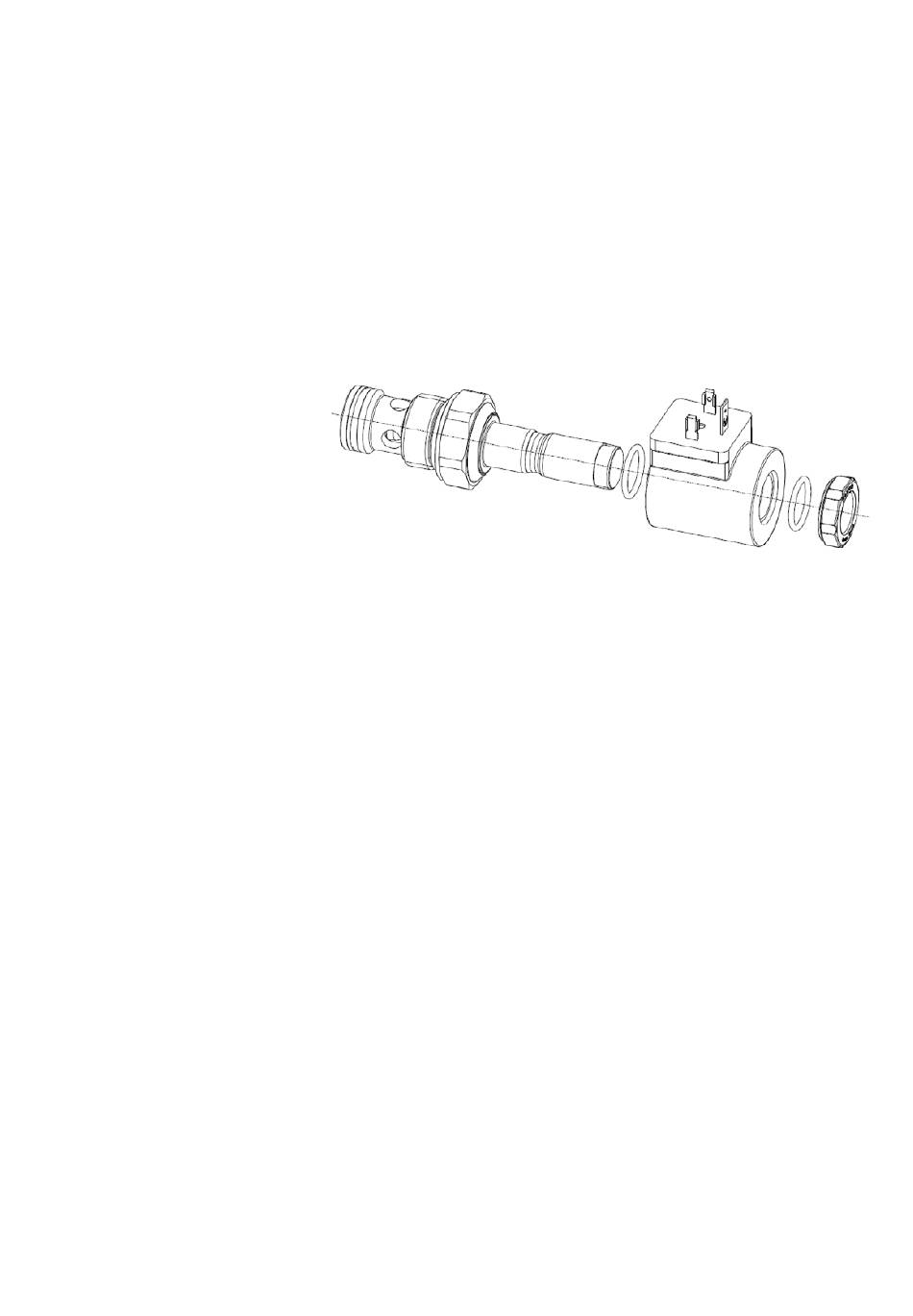

Figure 3 - Coil D36 Assembly

Do not use the equipment without short-circuit protection.

If the machine manufacturer has not created a protection system, we recommend

installing a fuse up-line from the coil rated at double the maximum current value the

coil is designed to withstand.

No type of routine maintenance is required for this device. We recommend replacing

the coil immediately on the occurrence of faults or breakages.

The equipment is composed of a steel frame.

All components installed inside the frame are sourced on the market and they

contain materials typically used in the light industrial sector including: steel for the

metal cage, copper for the solenoid, aluminium, polyamide resin with ﬁ breglass

ﬁ llers (PA66GF12 and PA66GF35).

For recycling or disposal of the materials, refer to the national laws and regional

regulations in force concerning the disposal of solid industrial waste and hazardous

substances.
