Seconique CORONA 4 DRAWER DRESSING TABLE Assembly Instructions Manual

Seconique CORONA 4 DRAWER DRESSING TABLE Assembly Instructions Manual

Advertisement

Quick Links

SEC/SH/09/22/PJ1
55522

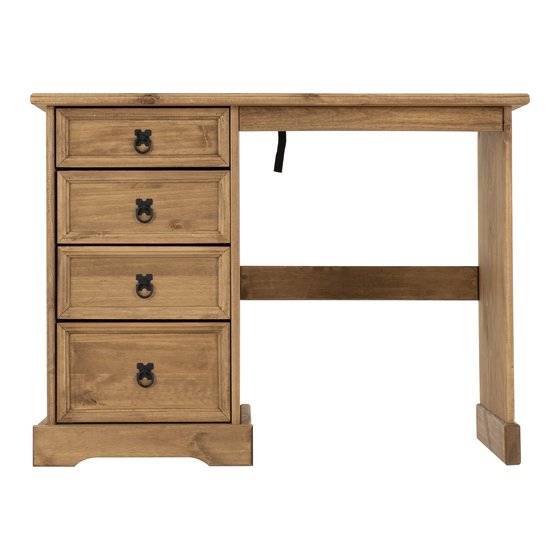

CORONA 4 DRAWER DRESSING TABLE
ASSEMBLY INSTRUCTIONS
IMPORTANT
PLEASE READ BEFORE YOU CONTINUE FURTHER
FOR DOMESTIC USE ONLY
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped off immediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01
