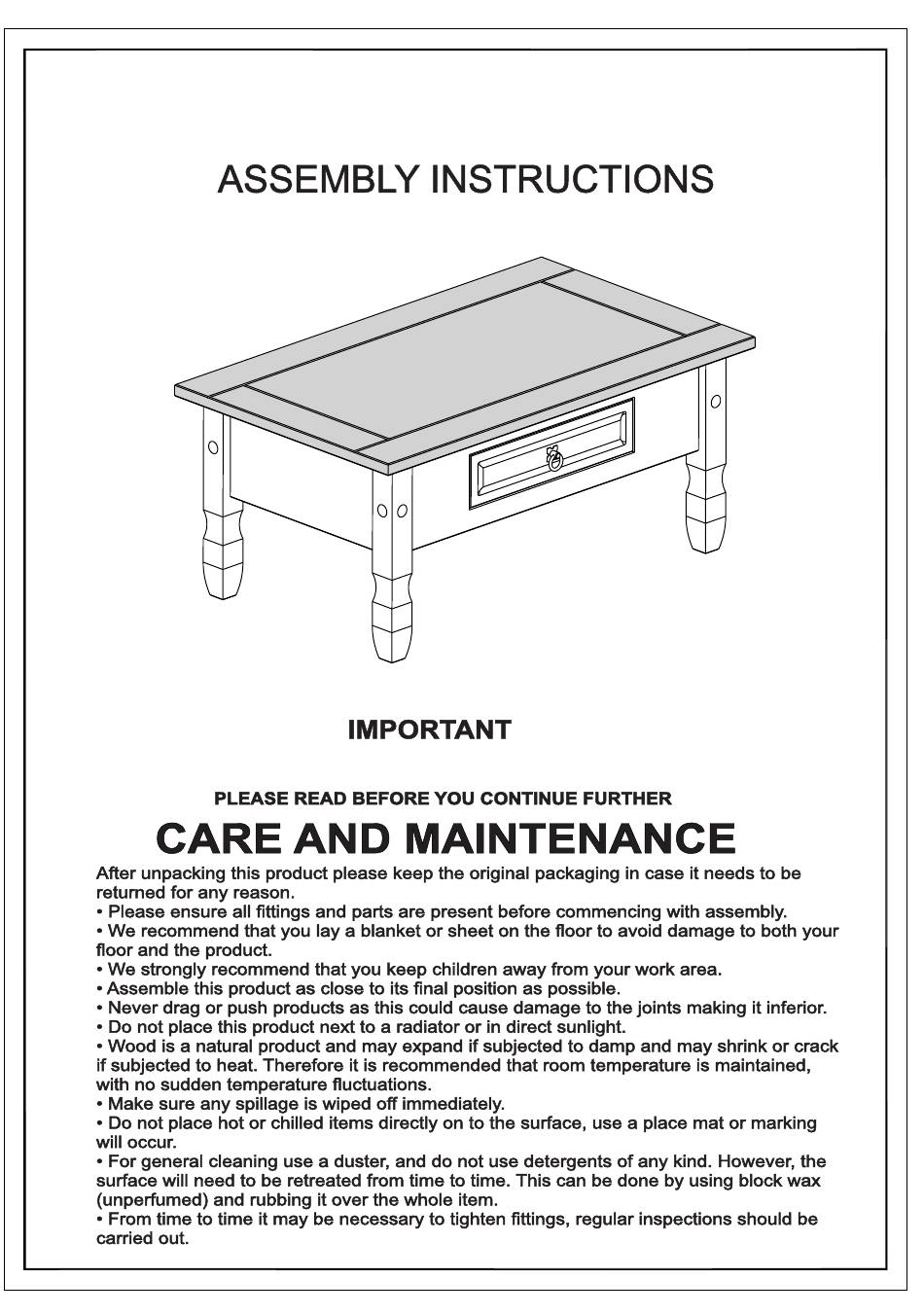

- Page 1 SEC/SH/12/19/MY2 Corona 1 Drawer Coffee Table FOR DOMESTIC USE ONLY Page 1...
- Page 2 SEC/SH/12/19/MY2 2,5m x 3m Blue Please Note: The below highlighted parts have been colour coded to help identify them during assembly. Part Name Side Panel Front rame Back Panel Slide support Drawer Front Right Drawer Side Left Drawer Side Drawer Bottom Drawer Back Page 2...
- Page 3 SEC/SH/12/19/MY2 FITTINGS Ø 3,5 x 35mm Black Ø 5,0 x 50mm 400mm Ø 6,0 x 10mm Right 400mm Ø 8 x 30mm Left Ø 4,0 x 40mm Ø 3,0 x 12mm Page 3...
- Page 4 SEC/SH/12/19/MY2 PRE-ASSEMBLY Please assemble on a clean soft surface to avoid damage. Blue Ø 8 x 30mm Page 4...
- Page 5 SEC/SH/12/19/MY2 PRE-ASSEMBLY 400mm Right 400mm Left Ø 6,0 x 10mm ( 2x ) Please assemble on a clean soft surface to avoid damage. Ø 4,0 x 40mm Please assemble on a clean soft surface to avoid damage. Ø 3,5 x 35mm Page 5...
- Page 6 SEC/SH/12/19/MY2 Please assemble on a clean soft surface to avoid damage. Ø 4,0 x 40mm Please assemble on a clean soft surface to avoid damage. Ø 3,5 x 35mm Page 6...
- Page 7 SEC/SH/12/19/MY2 Blue 1º 2º Ø 5,0 x 50mm Right Left Ø 3,0 x 12mm Black Page 7...
