SEC/SW/07/21/KK1

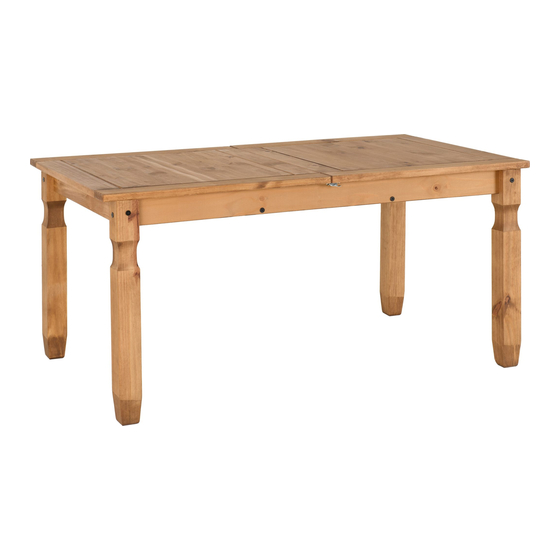

CORONA EXTENDING DINING TABLE
ASSEMBLY INSTRUCTIONS
IMPORTANT
FOR DOMESTIC USE ONLY
PLEASE READ BEFORE YOU CONTINUE FURTHER
CARE AND MAINTENANCE
After unpacking this product please keep the original packaging in case it needs to be
returned for any reason.
• Please ensure all fittings and parts are present before commencing with assembly.
• We recommend that you lay a blanket or sheet on the floor to avoid damage to both your
floor and the product.
• We strongly recommend that you keep children away from your work area.
• Assemble this product as close to its final position as possible.
• Never drag or push products as this could cause damage to the joints making it inferior.
• Do not place this product next to a radiator or in direct sunlight.
• Wood is a natural product and may expand if subjected to damp and may shrink or crack
if subjected to heat. Therefore it is recommended that room temperature is maintained,
with no sudden temperature fluctuations.
• Make sure any spillage is wiped o ffimmediately.
• Do not place hot or chilled items directly on to the surface, use a place mat or marking
will occur.
• For general cleaning use a duster, and do not use detergents of any kind. However, the
surface will need to be retreated from time to time. This can be done by using block wax
(unperfumed) and rubbing it over the whole item.
• From time to time it may be necessary to tighten fittings, regular inspections should be
carried out.
Page 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the CORONA EXTENDING DINING TABLE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Seconique CORONA EXTENDING DINING TABLE

  • Page 1 SEC/SW/07/21/KK1 CORONA EXTENDING DINING TABLE ASSEMBLY INSTRUCTIONS IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason.
  • Page 2: Parts List

    SEC/SW/07/21/KK1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage.
  • Page 3: Tools Required

    SEC/SW/07/21/KK1 FITTINGS Ø1/4" x 120mm Ø3,5 x 16mm Ø7 x 50mm GLUE Ø10 x 40mm Ø8 x 20mm 1/4" TOOLS REQUIRED Page 03...
  • Page 4 SEC/SW/07/21/KK1 STEP 1 PARTS REQUIRED SHORT FRAME SIDE LONG FRAME SIDE TABLE CROSSBAR SUPPORT HARDWARE REQUIRED Ø10 x 40mm Ø8 x 20mm GLUE ADD GLUE TOOLS REQUIRED Please assemble on Glue must be added to a clean soft surface the dowel holes on to avoid damage.
  • Page 5 SEC/SW/07/21/KK1 STEP 3 Ø1/4" x 120mm PARTS REQUIRED Ø7 x 50mm SHORT FRAME SIDE TABLE CROSSBAR SUPPORT ADD GLUE YELLOW BLUE HARDWARE REQUIRED ADD GLUE Ø1/4" x 120 Ø7 x 50mm GLUE YELLOW YELLOW 1/4" TOOLS REQUIRED Please assemble on Glue must be added to a clean soft surface the dowel holes on...
  • Page 6 SEC/SW/07/21/KK1 STEP 5 PARTS REQUIRED TABLE TOP PANEL TABLE CENTRE PANEL HARDWARE REQUIRED Ø10 x 40mm Ø8 x 20mm GLUE TOOLS REQUIRED Please assemble on Please be sure to only add a clean soft surface glue into the dowel holes to avoid damage.
  • Page 7 SEC/SW/07/21/KK1 STEP 7 PARTS REQUIRED XXXX XXXX X x f a t u r a m e n t o a p e m b a a g n XXXX XXXX XXXX HARDWARE REQUIRED Ø3,5 x 16mm When fitting the table guides (E) TOOLS REQUIRED carefully line up the screw (G) with the pre-marked holes on the...
  • Page 8: Care And Maintenance

    SEC/SH/07/21/KK1 CORONA DINING CHAIR ASSEMBLY INSTRUCTIONS IMPORTANT FOR DOMESTIC USE ONLY PLEASE READ BEFORE YOU CONTINUE FURTHER CARE AND MAINTENANCE After unpacking this product please keep the original packaging in case it needs to be returned for any reason. • Please ensure all fittings and parts are present before commencing with assembly. •...
  • Page 9 SEC/SH/07/21/KK1 * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage.
  • Page 10 SEC/SH/07/21/KK1 FITTINGS 4,0 x 35 Ø 7 x 90 GLUE Ø 7 x 60 8,0 x 30 TOOLS REQUIRED Page 03...
  • Page 11 SEC/SH/07/21/KK1 STEP 1 PARTS REQUIRED BACK RAIL HARDWARE REQUIRED 8,0 x 30 GLUE TOOLS REQUIRED Please assemble on Glue must be added to a clean soft surface the dowel holes on to avoid damage. parts 4. STEP 2 Ø 7 x 90 PARTS REQUIRED Ø...
  • Page 12 SEC/SH/07/21/KK1 STEP 3 Ø 7 x 90 PARTS REQUIRED FRONT SEAT RAIL (SMALLER) Ø 7 x 60 HARDWARE REQUIRED Ø 7 x 90 TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 4 Ø 7 x 90 PARTS REQUIRED RIGHT CHAIR SIDE Ø...
  • Page 13 SEC/SH/07/21/KK1 STEP 5 Ø 7 x 90 PARTS REQUIRED Ø 7 x 60 HARDWARE REQUIRED Ø 7 x 90 TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 6 PARTS REQUIRED CHAIR SEAT HARDWARE REQUIRED CENTRALIZE 4,0 x 35 TOOLS REQUIRED Please assemble on...
