Do not open during installation
This product is factory-sealed.
Refer to the instructions contained
in this document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.

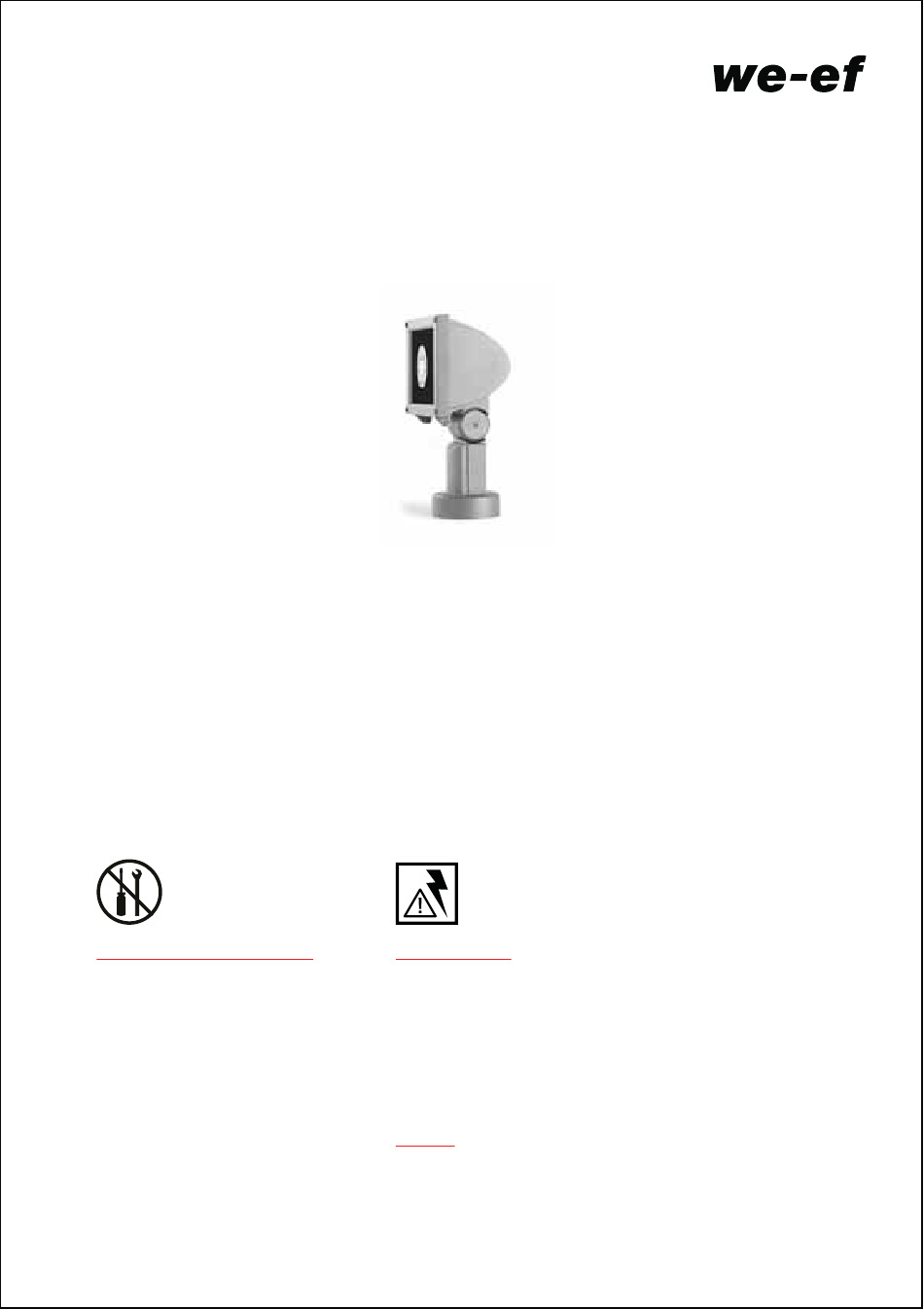

WE-EF LIGHTING
Installation and Maintenance
Instructions
Floodlight
FLB141 #2 LED
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WE-EF FLB141 #2 LED
Summary of Contents for WE-EF FLB141 #2 LED
- Page 1 WE-EF LIGHTING Installation and Maintenance Instructions Floodlight FLB141 #2 LED Surge Protection Do not open during installation This product is factory-sealed. This product features built-in surge protection circuitry in compliance Refer to the instructions contained with applicable standards. in this document for details.
- Page 2 Floodlight FLB141 #2 IP66, IK08. Class I. ta = 40°C Weight for FLB141 #2 LED Windage area ft 2 for FLB141 #2 LED 0.545 Orientation: all directions...
- Page 3 Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on.
- Page 4 DO NOT INSTALL ON WET CONCRETE! Handling: handled with care, scratches and damage to the coated surface can result in galvanic corrosion. A WE-EF warranty does not cover any adverse reaction or damage, due to improper installation and requests that our recommendations are followed.
- Page 5 Installation Procedure 2) Check that rating shown on luminaire label conforms with mains electrical supply. 07/18 IP66 FLB141-LED 120-277V / 60Hz 161-XXXX SOE XXXXXXX LED 3000K 18W item no. XXX (example) A by loosening A from junction box screws B. mounting plate H by removing fasteners D.
- Page 6 5) Feed mains supply cable G through the 6) Ensure that all surface are clean and dry. junction box mounting plate I, while setting and make electrical connections (L = Phase, A, insert and tighten screws D. N = Neutral, G = Ground, D+/D = 0-10 V) C. Turn luminaire towards object to be illuminated.
- Page 7 WE-EF LIGHTING United States of America Tel +1 724 742 0030 Fax +1 724 742 0035 info.usa@we-ef.com TO9249W0522 © WE-EF 2022 Technical specifications are subject to change.
