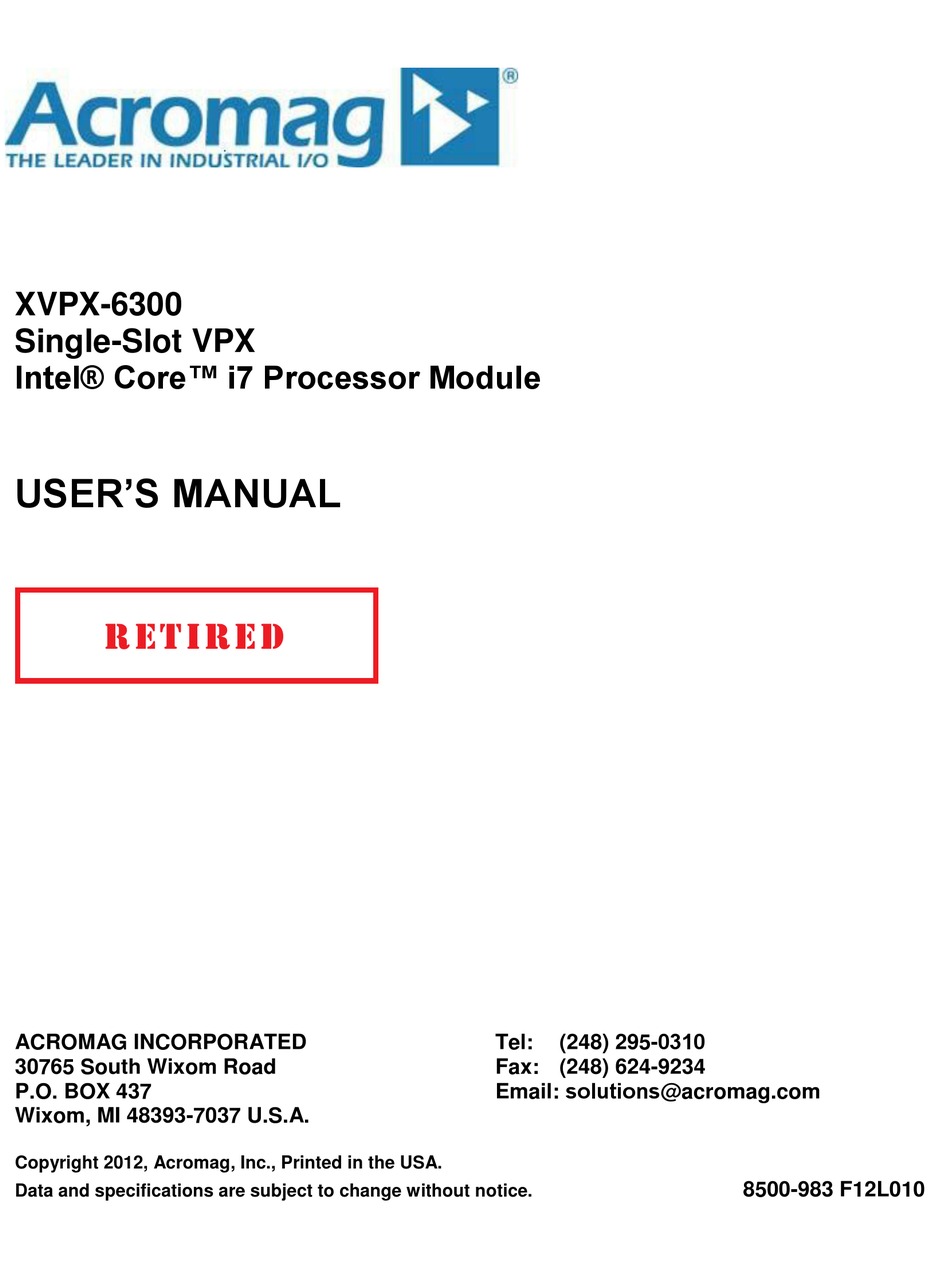

XVPX-6300
Single-Slot VPX
Intel® Core™ i7 Processor Module
USER'S MANUAL
r e t i r e d
ACROMAG INCORPORATED
30765 South Wixom Road
P.O. BOX 437
Wixom, MI 48393-7037 U.S.A.
Copyright 2012, Acromag, Inc., Printed in the USA.
Data and specifications are subject to change without notice.
Tel:
(248) 295-0310
Fax: (248) 624-9234
Email: solutions@acromag.com
8500-983 F12L010
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acromag XVPX-6300
Summary of Contents for Acromag XVPX-6300
- Page 1 ACROMAG INCORPORATED Tel: (248) 295-0310 30765 South Wixom Road Fax: (248) 624-9234 Email: solutions@acromag.com P.O. BOX 437 Wixom, MI 48393-7037 U.S.A. Copyright 2012, Acromag, Inc., Printed in the USA. 8500-983 F12L010 Data and specifications are subject to change without notice.
- Page 2 Associated Documents Due to the complexity of some of the parts used on the XVPX-6300, it is not possible to include all of the detailed data on all such devices in this manual. A list of the specifications and data sheets that provide additional information is as follows: VPX Standards, VITA 46.0, VITA 46.6, VITA 65.0,...
- Page 3 In the unlikely event that you experience problems with your product, contact Technical Support. Please be prepared to provide contact information and details of your problem. You may be asked for further details when calling: TELEPHONE 248-295-0885 248-624-9234 Support may also be obtained via email E-mail to xembedded@acromag.com...
-
Page 4: Table Of Contents
Table of Contents Chapter 1 – Introduction ............................1-1 Module Features ............................... 1-1 Module and Backplane Profiles ..........................1-1 Handling ..................................1-1 ESD Safe Work Area Guidelines ........................... 1-1 Operational Block Diagram ............................1-2 Architecture ................................1-2 CPU Chip ................................1-2 Onboard Memory .............................. -
Page 5: Chapter 1 - Introduction
Introduction Chapter 1 – Introduction Module Features The XVPX-6300 offers the following features: Intel® Core™ i7 Processor. Available models are all dual-core: i7-610E at 2.53GHz, i7-620LE at 2GHz and i7-620UE at 1.06GHz. 4GB of DDR3 SDRAM running at 1033MHz (610E, 620LE) or 800MHz (620UE). -
Page 6: Operational Block Diagram
Introduction 5. Modules should be handled by the edges. Avoid touching the component leads. NOTE: When not installed in a system, modules must be enclosed in shielded bags or boxes. There are three types of ESD protective enclosure materials this module was shipped in an approved ESD bag. 6. -
Page 7: Onboard Memory
(XVPX-9630) allows for the connection of two drives using standard SATA cables. VPXbus Interface The XVPX-6300 interface to VPXbus is via two PCIe x4 connections from the i7 directly to the VPX backplane on Fat Pipe A and Fat Pipe B. Note... -
Page 8: Environmental Specifications
The XVPX-6300 also complies with EN60950 (product safety), which is essentially the requirement for the Low Voltage Directive (73/23/EEC). Air-cooled build levels of the XVPX-6300 are designed for use in systems meeting VDE class B, EN and FCC regulations for EMC emissions and susceptibility. -
Page 9: Hardware Specifications
Introduction ENVIRONMENTAL SPECIFICATION OPERATING NON-OPERATING THERMAL Air-cooled Air-cooled Air-cooled 610E 0° to 55°C w/ 200 lfm airflow -40° to 85°C 620LE 0° to 65°C w/ 200 lfm airflow 620UE 0° to 70°C w/ 200 lfm airflow Extended air-cooled Extended air-cooled Extended air-cooled 610E -20°... -
Page 10: Build Levels
RoHS Compliant Build Levels The XVPX-6300 is available in three electrically compatible build levels, each of which is carefully tailored to a particular set of requirements and environments. All three levels fully support the power and versatility of VPX, so no matter how large or diversified your project, absolute compatibility is assured at all stages of development. -
Page 11: Chapter 2 - Installation And Setup
The following section describes the XVPX-6300 jumpers with their default positions and functions. CS_PGM 1-2 (default) NORMAL OPERATION FACTORY USE ONLY This jumper must be in the 1-2 position for normal operation. The XVPX-6300 will not boot with this jumper in 2-3 position. -
Page 12: Connectors
ALSO VPX IF SW1-3 IS ON) NO PUSHBUTTON RESET In position 1-2, the front panel reset button will reset the XVPX-6300 and also reset the VPX interface if SW1-3 is ON. In position 2-3, the front panel button will not cause any resets. - Page 13 Installation and Setup SATA1_RXP SATA1_RXN SATA1_TXP SATA1_TXN USB_P1_P USB_P1_N USB_P2_P USB_P2_N ENET1_LINK# USB_5V_P1_P2 USB_5V_P1_P2 USB_5V_P3_P4 USB_5V_P3_P4 ENET0_P0_P ENET0_P0_N ENET0_P1_P ENET0_P1_N UNUSED ENET0_P2_P ENET0_P2_N ENET0_P3_P ENET0_P3_N ENET1_P0_P ENET1_P0_N ENET1_P1_P ENET1_P1_N (PROFILE A) SGMII_RX_P2_P SGMII_RX_P2_N SGMII_TX_P2_P SGMII_TX_P2_N (PROFILE B) ENET1_P2_P ENET1_P2_N ENET1_P3_P ENET1_P3_N (PROFILE A) SGMII_RX_P1_P...
- Page 14 It is strongly suggested that ESD protection be included in interface circuitry on the VGA and USB ports. Failure to do so may cause damage the XVPX-6300 in the event of an ESD discharge into the I/O pins.
-
Page 15: Fpanel
Installation and Setup FPANEL The FPANEL connector ports (USB1, USB2, COM4 and VGA) can be accessed through standard connectors by using the supplied FPANEL dongle cable (P/N 201157). Note that the DB-9 serial connector on this dongle cable is wired as a DTE port. USB Port 0 + USB Port 0 - +5V USB POWER... -
Page 16: Front Panel Leds And Reset Switch
Front Panel LEDs and Reset Switch The reset switch can be configured in the BIOS to either reset the XVPX-6300, or to reset both the VPXbus and the XVPX-6300. The green pass and red fail LEDs are used as an indication of board health during the BIOS boot up. -
Page 17: Pci-Express Common Clock
Installation and Setup PCI-Express Common Clock Enabled: Drives out 100MHZ clock on VPX P0 REFCLK pins Disabled: Does not drive out 100MHZ clock on VPX P0 REFCLK pins Auto: Determined by state of VPX SYS_CON# pin SYS_CON# = LOW: Enabled SYS_CON# = HIGH: Disabled NAND Flash Enable Enabled:... -
Page 18: Installation
Installation The XVPX-6300 can connect to other cards on the VPX bus through two Fat Pipes (PCIe x4), but also supports smaller link widths. Review the Safety Notices section before installing the board. The following notices also apply:... -
Page 19: Chapter 3 - Accessory Modules
Chapter 3 – Accessory Modules XVPX-9630 The optional XVPX-9630 Rear Transition Module is used for easy interfacing to the XVPX-6300’s P1 and P2 I/O. The base board contains a standard 15-pin VGA, 2 standard USB ‘A’, 2 standard 7-pin SATA, and 5-pin audio. PIM modules are used to add additional connectors. -
Page 20: Connectors
VGA HSYNC Battery The XVPX-9630 can supply VBAT power to the XVPX-6300 and the rest of the VPX chassis by installing a standard BR1225 or CR1225 coin cell. Please ensure there is not another source of VBAT in the chassis...
