Summary of Contents for Acromag XMC630 Series
- Page 1 (217) 352-9330 | Click HERE Find the Acromag XMC631-42-20 at our website:...
- Page 2 XMC630 Series Ethernet Network Interface Cards USER’S MANUAL ACROMAG INCORPORATED 30765 South Wixom Road Wixom, MI 48393-2417 U.S.A. Tel: (248) 295-0310 Copyright 2019, Acromag, Inc., Printed in the USA. Data and specifications are subject to change without notice. 8501125A...
-
Page 3: Table Of Contents
4.1 Connector Information ..................11 4.1.1 P15 Primary XMC Connector .................... 11 4.1.2 P16 Secondary XMC Connector (XMC632 Only) ............... 12 4.1.3 SFP+ Connectors (XMC631 Only) ..................13 Acromag, Inc. Tel: 248-295-0310 - 1 - - 1 - www.acromag.com http://www.acromag.com... - Page 4 6.3.2 Relative Humidity ......................16 6.3.3 Vibration and Shock Standards ..................16 6.3.4 EMC Directives ......................... 17 6.4 Reliability Prediction ................... 17 CERTIFICATE OF VOLATILITY ..............18 REVISION HISTORY ..................19 Acromag, Inc. Tel: 248-295-0310 - 2 - - 2 - www.acromag.com http://www.acromag.com...
-
Page 5: Related Publications
This is especially important where economic property loss or human life is involved. It is important that the user employ satisfactory overall system design. It is agreed between the Buyer and Acromag, that this is the Buyer's responsibility. 1.0 RELATED PUBLICATIONS The following specifications provide necessary information for in depth understanding of this product and its use in a system architecture. -
Page 6: General Information
The information contained in this manual is subject to change without notice, and Acromag, Inc. (Acromag) does not guarantee its accuracy. Acromag makes no warranty of any kind with regards to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 7: Product Overview

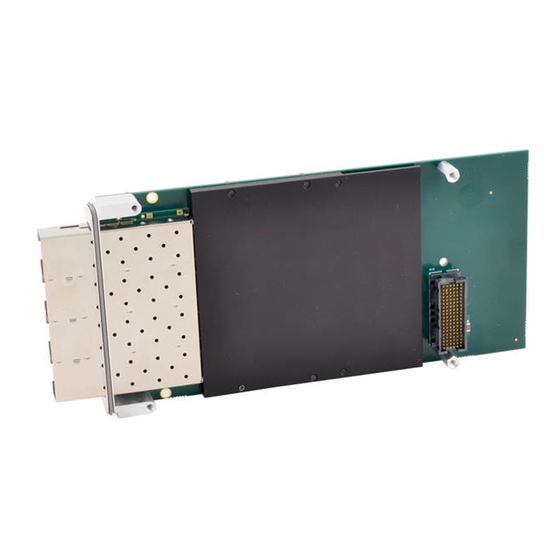

USER’S MANUAL XMC630 SERIES 2.3 Product Overview The XMC630 series modules are XMC modules that use the Intel XL710 Ethernet Controller to provide up to four 10-Gigabit Ethernet interfaces. These modules interface with the PCIe bus via eight high-speed serial lanes on the XMC P15 connector. -
Page 8: Key Features
Checksum and segmentation capability extended to new standard packet type. Jumbo Frame Packet Support – Improves system performance related to handling of network data on multiprocessor systems. Acromag, Inc. Tel: 248-295-0310 - 6 - - 6 - www.acromag.com... -
Page 9: Software Support
The XMC630 series products require support drivers specific to your operating system. Supported operating systems include: Linux, Windows. Acromag does not provide a custom Windows driver for these products. The Windows Windows driver for the Intel XL710 Ethernet Controller is available at www.intel.com. -
Page 10: Block Diagrams
USER’S MANUAL XMC630 SERIES 2.7 Block Diagrams Figure 2.7.1: XMC631 Block Diagram Figure 2.7.2: XMC632 Block Diagram Acromag, Inc. Tel: 248-295-0310 - 8 - - 8 - www.acromag.com http://www.acromag.com... -
Page 11: Preparation For Use
It is important that the user employ satisfactory overall system design. It is understood and agreed by the Buyer and Acromag that this is the Buyer's responsibility. -
Page 12: Installation Considerations
3.3 Board Configuration Power should be removed from the board when installing XMC modules, cables, termination panels, and field wiring. Acromag, Inc. Tel: 248-295-0310 - 10 - - 10 - www.acromag.com http://www.acromag.com... -
Page 13: Hardware Information
PER02- +3.3AUX PER03+ PER03- N.C. MSDA PER04+ PER04- N.C. PER05+ PER05- N.C. MVMRO MSCL PER06+ PER06- N.C. PER07+ PER07- N.C. N.C. N.C. REFCLK0_P REFCLK0_N N.C. WAKE# ROOT# N.C. Acromag, Inc. Tel: 248-295-0310 - 11 - - 11 - www.acromag.com http://www.acromag.com... -
Page 14: P16 Secondary Xmc Connector (Xmc632 Only)
X1_TX0_P X1_TX0_N X1_TX1_P X1_TX1_N X1_TX2_P X1_TX2_N X1_TX3_P X1_TX3_N 11 X0_RX0_P X0_RX0_N X0_RX1_P X0_RX1_N 13 X0_RX2_P X0_RX2_N X0_RX3_P X0_RX3_N 15 X1_RX0_P X1_RX0_N X1_RX1_P X1_RX1_N 17 X1_RX2_P X1_RX2_N X1_RX3_P X1_RX3_N Acromag, Inc. Tel: 248-295-0310 - 12 - - 12 - www.acromag.com http://www.acromag.com... -
Page 15: Sfp+ Connectors (Xmc631 Only)
8431 compliant SFP+ modules are supported. VEER (GND) VEER (GND) Table 4.1.3: SFP+ Connectors P1 – P4 RX_LOS VEER (GND) VCCR (+3.3V) MOD_ABS VCCT (+3.3V) VEET (GND) TX_DISABLE TX_FAULT VEET (GND) VEET (GND) Acromag, Inc. Tel: 248-295-0310 - 13 - - 13 - www.acromag.com http://www.acromag.com... -
Page 16: Service And Repair
5.3 Where to Get Help If the problem persists, the next step should be to visit the Acromag worldwide web site at http://www.acromag.com. Our web site contains the most up-to-date product and software information. -
Page 17: Specifications
3. Maximum is defined as maximum conditions, max operating temperature (T = 110°C), nominal voltages, and continuous network traffic at link speed on all ports. Acromag, Inc. Tel: 248-295-0310 - 15 - - 15 - www.acromag.com http://www.acromag.com... -
Page 18: Environmental Considerations
The range of acceptable relative humidity is 5% to 95% non-condensing. 6.3.3 Vibration and Shock Standards The XMC630 series products are designed to comply with the following Vibration and Shock standards. Vibration, Random Operating: Designed to comply with VITA 47 Class V1. -
Page 19: Emc Directives
FN2. Per MIL-HDBK-217, Ground Benign, Controlled, G Predictions Temperature MTBF (Hours) MTBF (Years) Failure Rate (FIT 25°C 1,485,286 169.6 673.3 40°C 894,775 102.1 1,117.6 FIT is Failures in 10 hours. Acromag, Inc. Tel: 248-295-0310 - 17 - - 17 - www.acromag.com http://www.acromag.com... -
Page 20: Certificate Of Volatility
Clear Flash by Flash Configuration Data erasing all bytes. ■ No Acromag Representative Name: Title: Email: Office Phone: Office Fax: solutions@acromag.com Russ Nieves Dir. of Sales and Marketing 248-295-0310 248-624-9234 Acromag, Inc. Tel: 248-295-0310 - 18 - - 18 - www.acromag.com http://www.acromag.com... -
Page 21: Revision History
The revision history for this document is summarized in the table below. Release Date Version EGR/DOC Description of Revision 21 NOV 2018 Preliminary MDW/ARP Internal Release. 12 MAR 2019 MDW/MJO Rev A Release Acromag, Inc. Tel: 248-295-0310 - 19 - - 19 - www.acromag.com http://www.acromag.com...
