MEGATRONIX TP22 Manual

Anti-code grabbing wireless transponder immobilizer security system

Advertisement

Quick Links

MEGATRONIX
TP22
Anti-Code Grabbing Wireless Transponder
Immobilizer Security System
MEGATRONIX
CALIFORNIA, U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TP22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MEGATRONIX TP22

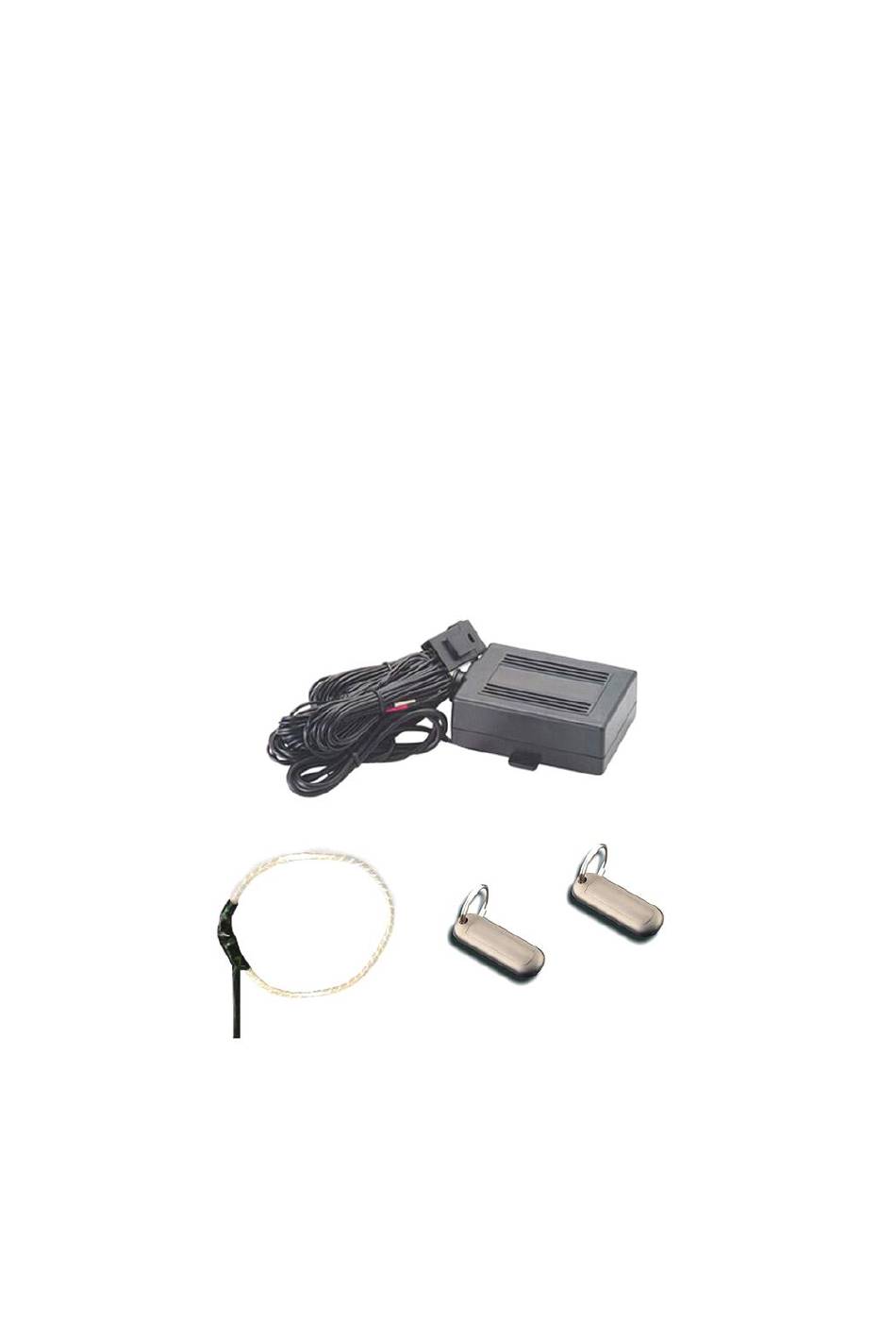

  • Page 1 MEGATRONIX TP22 Anti-Code Grabbing Wireless Transponder Immobilizer Security System MEGATRONIX CALIFORNIA, U.S.A.
  • Page 3 Introduction Congratulations on purchasing the immobilizer system. This high-tech immobilizer uses the latest in transponder technology to protect automatically your vehicle from theft. Once installed, disarming of the immobilizer is fully automatic and requires no action on the part of the user. It has three points of immobilization as well as a negative armed output option.
  • Page 4 Emergency Override This immobilizer is equipped with a high security emergency override system. The override is based on a PIN (Personal Identification Number) that must be entered through the ignition switch in the event that a tag is lost. The PIN is entered by following the instructions below. All units when shipped have a different PIN number with a sticker on the services card.
  • Page 5 Programming a New PIN Number Changing PIN from 1-2-3-4 to 4-3-2-1. Ensure no tag is in range of receiver (Ignition switch). Action Reaction Result Turn ignition switch ON LED steady glow Turn ignition OFF and count flashes LED flashes LED steady glow PIN #1 Entered After ONE flash turn ignition ON Turn ignition OFF and count flashes LED flashes...
  • Page 6 Programming a New Tag to the System Assume the PIN is still 1-2-3-4. Ensue no tag is in range of receiver (Ignition switch). Action Reaction Result Turn ignition switch ON LED steady glow Turn ignition OFF and count flashes LED flashes LED steady glow PIN #1 Entered After ONE flash turn ignition ON...
  • Page 7: Wiring Diagram

    System Ground (–) Black wire with Red marker 12 Volt Constant (+) Black wire with Yellow marker Ignition Switch Acc (+) Black wire with White marker Door Circuit (–) TP22 Black wires Immobilization Circuit 1 Black wires Immobilization Circuit 2 LOOP ANTENNA...
  • Page 8: Antenna Installation

    ANTENNA INSTALLATION 1. Antenna can be installed in the vicinity position of the ignition lock, but do not place it too close to the ignition’s metal parts so as to get better range as shown below: Correct Wrong Wrong Correct Correct IG Lock IG Lock...
