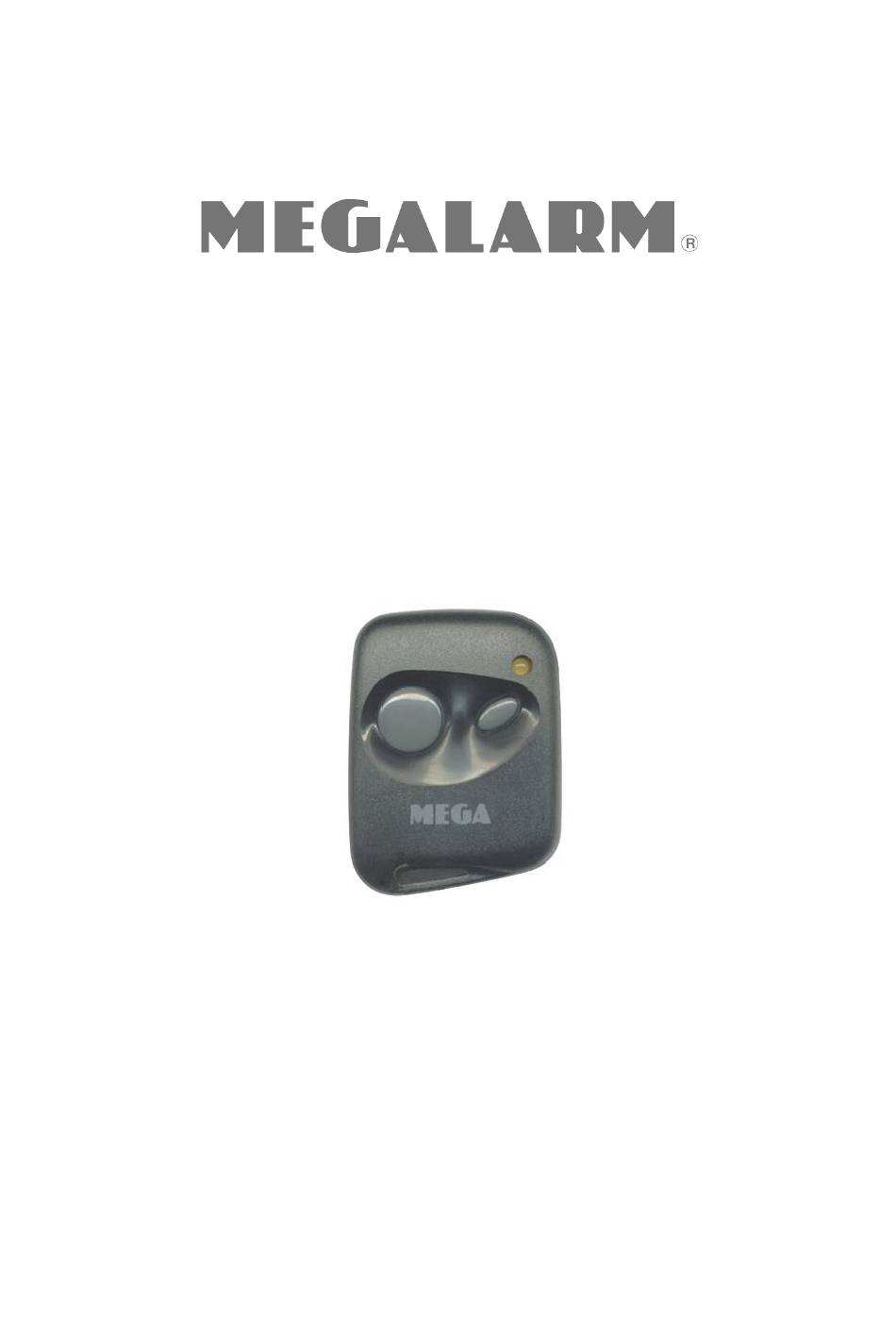

- Page 1 MEGA 462 DELUXE 3-CHANNEL CAR ALARM SECURITY SYSTEM Installation And Operation Manual MEGATRONIX CALIFORNIA, U.S.A. MEGA 462...
- Page 2 MEGA 462...
-
Page 3: Wiring Diagram
WIRING DIAGRAM H7 3 Pin H7/1 Green Wire: (-) 200mA Lock Pulse White H1 5 Pin H7/3 Blue Wire: (-) 200mA Unlock Pulse H1: Main 5 Pin White harness White H6 2 Pin LED Indicator White H2 4 Pin Dual Zone H5 2 Pin Valet Switch Orange... - Page 4 WIRING Keep wiring away from moving engine parts, exhaust pipes and high-tension cable. Tape wires that pass through holes on the firewall to prevent fraying. Watches out sharp edges that may damage wires and causes short circuit. CAUTION: Do not connect the wire harness to the control module until all wiring to vehicle is complete. H1: MAIN 5 PIN WIRE HARNESS: H1/1.
- Page 5 b). When found, use voltmeter, connect one probe of the voltmeter to ground and connect the other end of the probe to the starter wire, it should receive "12 Volts" only when the ignition key in the "START" position. c). After locating the correct wire, cut it in half, try to start the vehicle. The engine should not "crank over". d).
- Page 6 VACUUM OPERATED CENTROL LOCKING 5-WIRE ALTERNATING DOOR LOCK Green Wire +12V Door Switch Green Wire Master Door Lock Switch Splice Cut the Existing 3 Pin Plug Unlock Wire +12V 3 Pin To Alarm Plug To Compressor Splice Alarm +12V Cut the Existing Lock Wire Blue Wire To Door...
- Page 7 PROGRAMMING A. PROGRAMMING TRANSMITTER: Enter: 1. Turn the Ignition switch ‘OFF/ON’ 3 TIMES and stay in ON position. Within 15 seconds. 2. Push the Valet switch 3 times and hold it until a long chirp is hearing then release the valet switch. You now in the Transmitter programming mode.
- Page 8 1 Button I H1/4 Brown Wire = Siren H1/4 Brown Wire = Horn Output Output 2 Button II H3/6 Gray Wire = Trunk H3/6 Gray Wire = Two H3/6 Gray Wire = Pager (Channel 2) Output Step Door Unlock Output Output 3 Button I + II Car Jacking Off...
-
Page 9: Active Disarming - Unlock & Disarm
2. After all entrances are closed, the security system LED will flash fast for 30 seconds. If you reopen any door / hood / trunk, the security system LED will stop flashing. It will begin flashing again once the vehicle all entrances are closed. 3. -
Page 10: Ignition Control Door Locks
2. Once the system is armed, If you are forced from the vehicle, the system will active the anti Car-jacking trigger when the door is opened and closed. TRIGGER THE ANTI CAR-JACKING MODE: 3-timer circuits will function as follows: First timer: a. - Page 11 MEGA 462...
- Page 12 MEGA 462...
