MEGATRONIX KP10 Installation Instructions

KP10 – PROGRAMMABLE ILLUMINATED DIGITAL KEYPAD IMMOBILIZER
INSTALLATION INSTRUCTIONS

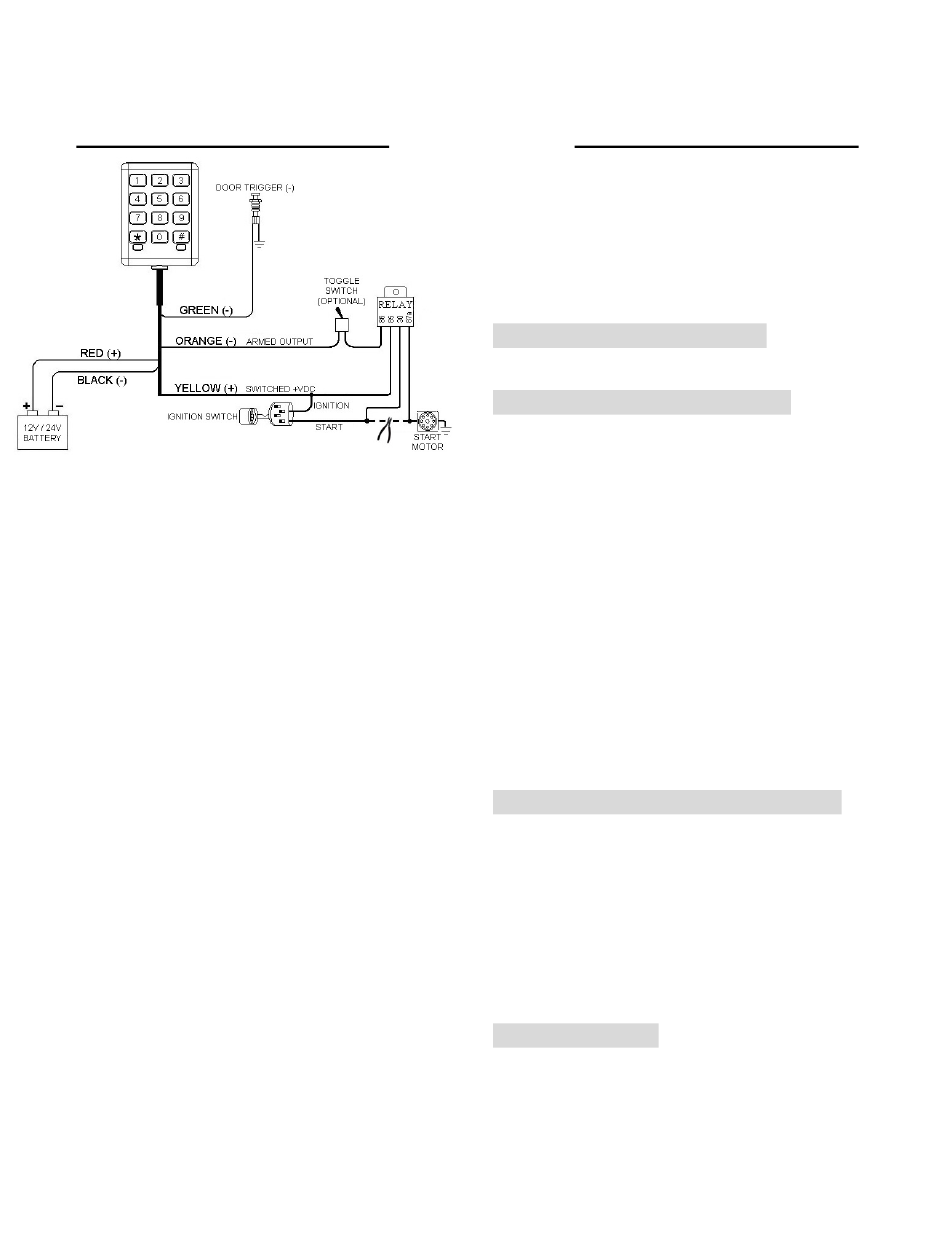

1. Connect all wires per wiring diagram:
a. RED: Connect to 12V+.
b. BLACK: Connect to Ground.
c. GREEN: Connect to –VE door trigger
NOTE: Only connect this wire if you want
Anti-Carjack Feature active.
d. ORANGE: Negative armed output wire.
Connect to PIN 86 of relay.
e. YELLOW: Connect to +12V ignition wire
and to PIN 85 of relay.
f. Cut starter wire that goes from starter
solenoid to ignition key switch. Connect PIN
87a to cut wire from ignition key switch and
PIN 30 to cut wire from starter solenoid.
2. Mount keypad on dashboard close to
operating area with either double sided tape
or keypad bracket and screws.
3. Hide relay and socket where thieves cannot
easily locate it.
4. After installing, enter default code to test unit
for functionality.
5. * button LED is blue and indicates the status
of keypad. All other LEDs are red.
MEGATRONIX
KP10
immobilization via keypad. It can arm & disarm
simply by keying your own programmed security
code.
FACTORY DEFAULT CODE: 123456

PROGRAM DISARMING CODE

KP10 offers personal disarm pin code that can
be changed to increase security level.
To reset disarm pin code:
1. Disarm KP10 and leave ignition ON.
2. Within 15 seconds, press * then enter NEW
PERSONAL CODE then press #.
3. Keypad will chirp twice meaning new code is
confirmed.
4. Personal disarm code can be four to six digits
in length.

AUTO-ARMING (PASSIVE ARMING)

1. When ignition key is OFF, system will
automatically enter ARM mode after 30
seconds.
2. Blue
status.

ACTIVE ARMING

1. When ignition key is OFF, press * then #.
2. Keypad will chirp twice, system will enter
ARM mode.
3. Blue
status.

OPERATING INSTRUCTIONS

is designed to
LED will blink slowly to indicate ARM
LED will blink slowly to indicate ARM
activate/deactivate
