Summary of Contents for HAMOKI DF-4L2

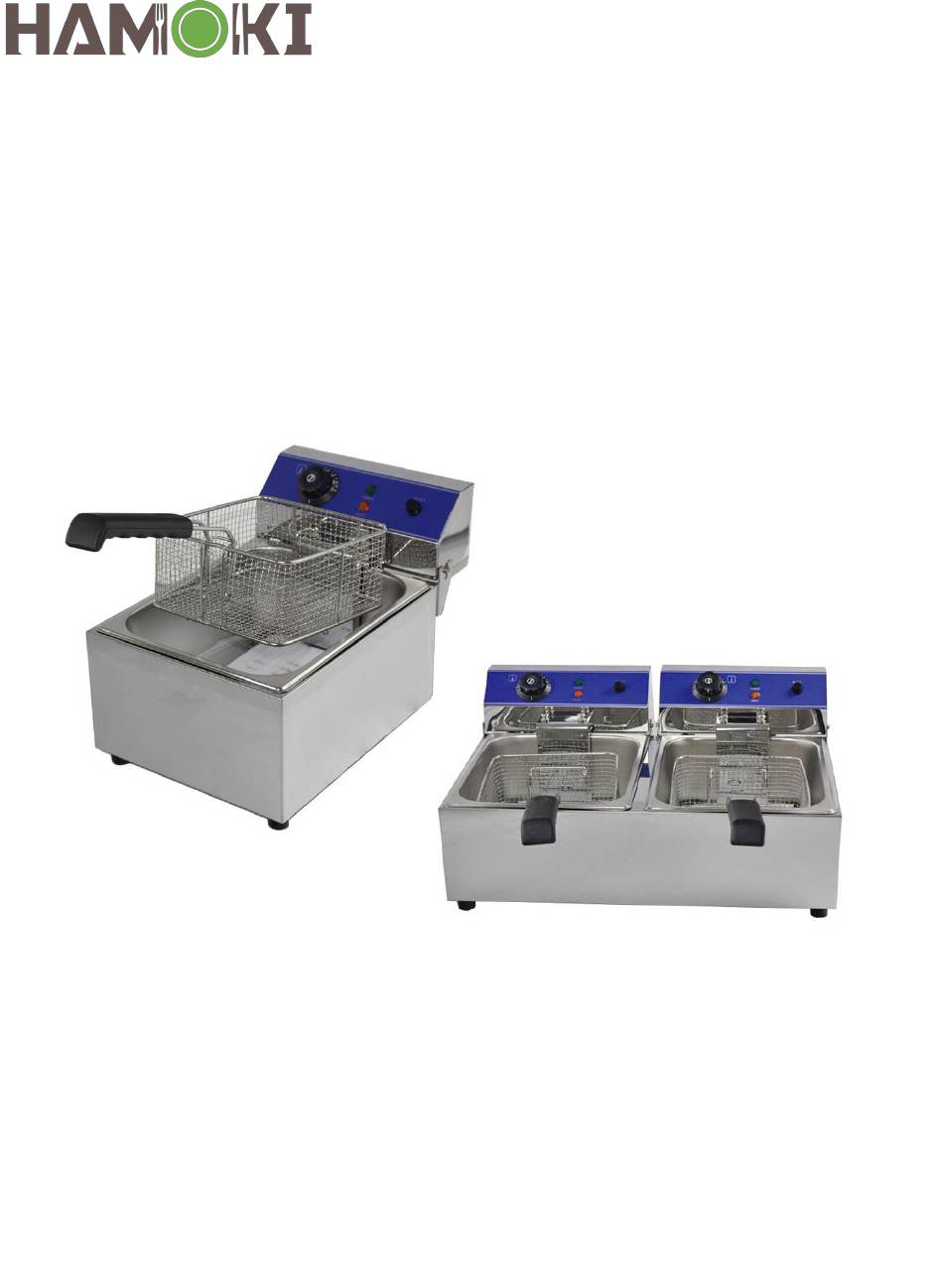

- Page 1 Countertop Electric Fryer Instruction Manual Model: Suitable for all models of the DF Series Countertop Electric Fryer Please read this instruction manual carefully before operation...
- Page 2 Safety Tips This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. In addition to the information given here, you should comply with any local Health and safety Controls and applicable safety regulations.
-
Page 3: Circuit Diagram
1- POWER INDICATOR 2-HEATING INDICATOR 3- TEMPERATURE CONTROLLER 4-ELECTRIC BOX 5-ELECTRIC HEATING TUBE 6-POWER CABLE 7-RUBBER FOOT 8-LOWER BOX 9-FRYING BSSKET 10-OIL POT 1 11-PROTECTION BOARD FOR ELECTRIC HEATING TUBE CIRCUIT DIAGRAM NOTE: THE CIRCUIT PRINCIPLE OF THE DF SERIES SINGLE TANK & TWIN TANK ELECTRIC FRYER IS DIFFERENT. - Page 4 SOLID DIAGRAMS & PARTS GUIDE SINGLE TANK FRYER 1-POWER INDICATOR 2-HEATING INDICATOR 3-SCREW OF SIDE BOARD 4-BACK BOARD 5-ELECTRIC BOX 6-TEMPERATURE LIMITER 7-PORCELAIN SOCKET FOR CONNECTION 8-MICRO-SWITCH 10-KNOB 11-THEATH OF POWER CABLE 12-POWER CABLE 13-EQUIPOTENTIAL GROUNDED SCREW 14-LOWER BOX 15-RUBBER FEET 16-OIL POT The specification of each electric 17-COVER OF OIL POT...
- Page 5 TWIN TANK FRYER 1-POWER INDICATOR 2-HEATING INDICATOR 3-SCREW OF SIDE BOARD 4-BACK BOARD 5-ELECTRIC BOX 6-TEMPERATURE LIMITER 7-PORCELAIN SOCKET FOR CONNECTION 8-MICRO-SWITCH 10-KNOB 11-THEATH OF POWER CABLE 12-POWER CABLE 13-EQUIPOTENTIAL GROUNDED SCREW 14-LOWER BOX 15-RUBBER FEET 16-OIL POT 17-COVER OF OIL POT 18-ELECTRIC HEATING TUBE 19-FIRMED SCREW 20-PARTITION BOARD...
- Page 6 PARTS & SPECIFICATION LIST SINGLE TANK FRYER NUMBER NAME SPECIFICATION AMOUNT NOTE Power indicator Outsourcing, green with line Φ12 250V/14A Heating indicator Outsourcing, green with line Φ12 250V/14A Fix screw for back M4×8 with flat pat Outsourcing board Back board Stainless S=0.8 Electric box Stainless S=0.8...
- Page 7 PARTS & SPECIFICATION LIST TWIN TANK FRYER NUMBER NAME SPECIFICATION AMOUNT NOTE Power indicator Outsourcing, green with line Φ12 250V/14A Heating indicator Outsourcing, green with line Φ12 250V/14A Fix screw for back M4×8 with flat pat Outsourcing board Back board Stainless S=0.8 Electric box Stainless S=0.8...
-
Page 8: Operation And Use
OPERATION & USE Check if the installation of power supply is normal, and make sure the supplied voltage is coordinated with the using voltage. There is an oil level mark in the internal oil pot, when in use, the quantity of oil in the oil ▪... - Page 9 OPERATION & USE The voltage for this equipment must be coordinated with the supplied voltage. Users should install a suitable power switch and breaker switch near the fryer. At the back of the device is the earth bolt. Please connect the earth wire in compliance with the safety regulations with copper cable of no less that 2mm².
- Page 10 The DF series Countertop Electric Fryer has two types. One is a Single Tank fryer, another is a Twin Tank fryer. The thermostat sets the temperature for frying. The power indicator and heating indicator shows the heating status. When the temperature of oil is over the temperature limit, the protecting device for limiting temperature can cut off the power automatically.
- Page 11 BASIC PARAMETERS – TWIN TANK FRYER MODEL DF-4L2 DF-6L-2 DF-8L-2 DF-11L-2 VOLTAGE 220-240V, 50Hz 220-240V, 50Hz 220-240V, 50Hz 220-240V, 50Hz POWER 2x2000W 2x2500W 2x3250W 2x3500W NO. OF OIL POTS SIZE OF OIL POT 185×270×175 240×300×150 240×300×200 300×325×200 NO. OF BASKETS BASKET SIZE 150×220×135...
-
Page 12: Troubleshooting
TROUBLESHOOTING POSSIBLE CAUSE SOLUTION PROBLEM Machine is plugged in with Plug is not inserted Remove the plug. through power supply, well. 2. Adjust the limit power indicator is not on, 2. Micro-switch distance of the micro- no heat. contacts not working switch Heating indicator is not Connection of electric... - Page 13 Waste disposal DISCARDING THE DEVICE At the end of its service life the device has to be disposed in accordance with the national regulations. It is advisable to contact a company which specialises in waste disposal, or just contact the local disposal service in your community. WARNING! To avoid any hazards, make the device unfit for use before disposal.
-
Page 14: Warranty Claims
Hamoki Ltd and upon proper installation and start-up in accordance with the instruction packet supplied with each unit) a one year parts warranty. Hamoki Ltd’s obligation under this warranty is limited to a period of one (1) year from the date of original installation. WARRANTY CLAIMS: All claims for parts must be made directly through the retailer in the first instance.
