- Page 1 USER MANUAL ® Parvus DuraNET 30-2020 Rugged Cisco ESS‐ ‐ ‐ ‐ 2020 L2 Ethernet Switch 17x 10/100 + 2x GigE Ports MNL-0654-01 Rev B3 ECO-5370 Effective: 19 Jan 18...
- Page 2 Curtiss-Wright reserves the right to change the contents and form of this document, as well as the features and specifications of its products, at any time without notice.
-
Page 3: Table Of Contents
Curtiss-Wright Parvus DuraNET 30-2020 ABLE OF ONTENTS Chapter 1 Introduction ......................6 About This Document ............................ 6 Description of Safety Symbols ........................ 6 Functional Description ........................... 7 Features ..............................8 Cisco Technology ..........................8 IOS Management ..........................8 Rugged MIL-STD Design ......................... 8 Configurations ............................ - Page 4 Parvus DuraNET 30-2020 Curtiss-Wright Mechanical Specifications ........................... 27 Power ..............................27 Dimensions ............................27 Physical ..............................29 Environmental Specifications ........................30 Environmental ............................30 EMI/EMC .............................. 30 Chapter 5 Troubleshooting ....................31 Product Identification ........................... 31 Technical Assistance ..........................31 Returning for Service ..........................
- Page 5 Curtiss-Wright Parvus DuraNET 30-2020 IST OF IGURES Figure 1. DuraNET 30-2020 Block Diagram ....................10 Figure 2. Front View ........................... 11 Figure 3. Rear View ........................... 12 Figure 4. Breakout Cable Set (CBL-DUNET-30-2020-XX) ................ 13 Figure 5. Mounting Holes ........................... 16 Figure 6.
-
Page 6: Chapter 1 Introduction

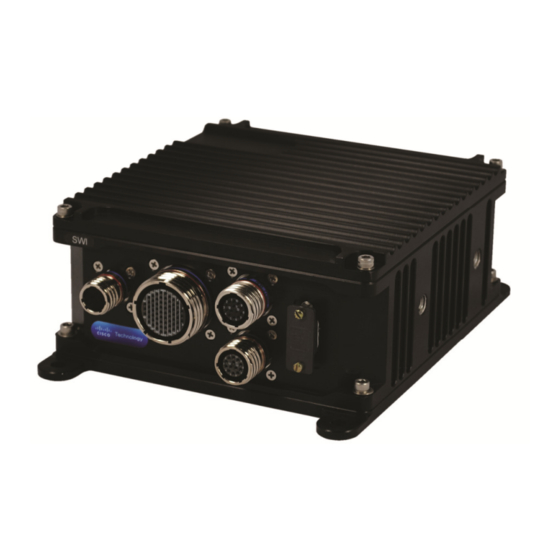

Parvus DuraNET 30-2020 Curtiss-Wright Chapter 1 Introduction The DuraNET 30-2020 is an ultra-rugged 19-port Cisco IOS-managed Layer 2 network switch integrating Cisco’s ESS 2020 Embedded Services Switch technology with an isolated MIL-STD-1275/704 power supply in an IP67 (dust/water-proof) sealed aluminum chassis with MIL-DTL-38999 connectors. -
Page 7: Functional Description
Curtiss-Wright Parvus DuraNET 30-2020 UNCTIONAL ESCRIPTION The DuraNET 30-2020 is an ultra-rugged 19-port Cisco IOS-managed Layer 2 network switch integrating Cisco’s ESS 2020 Embedded Services Switch technology with an isolated MIL-STD-1275/704 power supply in an IP67 (dust/water proof) sealed aluminum chassis with MIL-DTL-38999 connectors. Designed to optimize Size, Weight, Power and Cost (SWaP-C) in sensitive harsh military and civil environments (i.e., aircraft, vehicle, mining, industrial), the unit provides reliable local area network (LAN) switching... -
Page 8: Features
Parvus DuraNET 30-2020 Curtiss-Wright EATURES Cisco Technology Integrated Cisco ESS 2020 Layer 2 IOS managed Ethernet switch with 19x Ethernet ports (2x • GigE, 17x 10/100Base-T) in size, weight, power and cost (SWaP-C) optimized chassis: < 5.0 lbs. weight, only 3” height, 9W nominal. -
Page 9: Configurations
Curtiss-Wright Parvus DuraNET 30-2020 ONFIGURATIONS The DuraNET 30-2020 is available with the Cisco LAN-Lite IOS or LAN-Base IOS and with electroless- nickel-plated MIL-DTL-38999 connectors or cadmium olive drab 38999s (special order). DuraNET 30- 2020-01 is the standard, recommended configuration. Product Number... -
Page 10: Block Diagram
Parvus DuraNET 30-2020 Curtiss-Wright LOCK IAGRAM The block diagram in Figure 1 illustrates the DuraNET 30-2020 interfaces. Figure 1. DuraNET 30-2020 Block Diagram Page 10 of 33 MNL-0654-01 Rev B3 ECO-5370 Effective: 19 Jan 18... -
Page 11: Chapter 2 Operational Description
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 2 Operational Description HAPTER PERATIONAL ESCRIPTION This chapter describes how to connect and power-up the DuraNET 30-2020. ONNECTOR DENTIFICATION RONT ANEL Figure 2 shows the front view of the DuraNET 30-2020 and the five connectors. -
Page 12: Rear Panel
Chapter 2 Operational Description Parvus DuraNET 30-2020 Curtiss-Wright ANEL Figure 3 shows the rear view of the system with the grounding lug tie. Refer to "Grounding" for grounding instructions. Figure 3. Rear View Caution! The grounding lug tie hole is shallow (.375”). -
Page 13: Breakout Cable Set
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 2 Operational Description REAKOUT ABLE You can test the DuraNET 30-2020 interfaces and cabling prior to installation in the target system to ensure full operational capability. Full bench-top testing can be performed by using an appropriate cable set for this system. -
Page 14: Power-On Sequence
Chapter 2 Operational Description Parvus DuraNET 30-2020 Curtiss-Wright OWER EQUENCE To configure the DuraNET 30-2020, you need a serial connection to the J5 Console port. This requires a computer with a standard DB-9 RS-232 serial port and a terminal emulator PC application. -
Page 15: Switch Configuration
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 2 Operational Description WITCH ONFIGURATION The DuraNET 30-2020 Ethernet Switch is shipped with a Cisco factory-installed IOS. Custom network configuration is the responsibility of the customer. Please refer to Cisco Embedded Service 2020 Series Switches Software Configuration Guide for further information. The document may be downloaded from the Cisco website at www.cisco.com. -
Page 16: Vertical Mounting
Chapter 2 Operational Description Parvus DuraNET 30-2020 Curtiss-Wright ERTICAL OUNTING To install the DuraNET 30-2020 on a mounting surface: 1. Create a hole pattern on the mounting surface that matches the pattern shown in Figure 5. The mounting holes are 0.27” in diameter. -
Page 17: Horizontal Mounting
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 2 Operational Description ORIZONTAL OUNTING To install the DuraNET 30-2020 on its side: 1. Create a hole pattern on the mounting surface that matches the pattern shown in Figure 6. The mounting holes are 0.33” in diameter. -
Page 18: Grounding
Chapter 2 Operational Description Parvus DuraNET 30-2020 Curtiss-Wright ROUNDING The bottom of the baseplate is conductive to allow the system to be grounded via the baseplate. • A blind grounding hole for attachment of a 1/4-20 grounding cable is provided on the rear of the •... -
Page 19: Chapter 3 Connector Descriptions
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 3 Connector Descriptions HAPTER ONNECTOR ESCRIPTIONS This chapter identifies connector part numbers, locations, and pinouts to facilitate fabrication of cables that can connect to the DuraNET 30-2020. ONNECTOR DENTIFICATION ONNECTOR OCATION AND APPING The following table shows the Cisco port mapping for each connector on the DuraNET 30-2020 (identified in Figure 8). -
Page 20: Circular Connector Part Numbers
Chapter 3 Connector Descriptions Parvus DuraNET 30-2020 Curtiss-Wright IRCULAR ONNECTOR UMBERS The following table shows the manufacturer part numbers for the DuraNET 30-2020 circular connectors (identified in Figure 9), together with the suggested mating connectors. Connector Part Number Mating Connector... -
Page 21: Pinouts
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 3 Connector Descriptions INOUTS This section provides the pinouts necessary for creating cables that connect properly to this assembly. If custom cabling is not designed and built by Parvus, all EMI and EMC considerations must be handled by the customer. -
Page 22: J2 Gigabit Ethernet (1 Port) And 10/100Base-T (1 Port)
Chapter 3 Connector Descriptions Parvus DuraNET 30-2020 Curtiss-Wright J2 G (1 P 10/100B -T (1 P IGABIT THERNET J2 is a Gigabit (10/100/1000Base-T) port. Four distinct twisted pairs of wire (eight wires) are required for gigabit transmission, and this documentation refers to these four pairs as pair Ax (Ax+, Ax-), pair Bx (Bx+, Bx-), pair Cx (Cx+, Cx-), and pair Dx (Dx+, Dx-). -
Page 23: J3 Ethernet 10/100Base-T (16 Ports)
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 3 Connector Descriptions J3 E 10/100B -T (16 P THERNET ORTS J3 has sixteen Fast Ethernet (10/100Base-T) ports all on the same circular connector. Only 2 distinct twisted pairs of wire are required for each port (4 wires per port), or 48 wires total (24 twisted pairs). This documentation refers to these pairs as pair TxN (TxN+, TxN-) and pair RxN (RxN+, RxN-), where N = a port number from 1 to 16. -
Page 24: J4 Power
Chapter 3 Connector Descriptions Parvus DuraNET 30-2020 Curtiss-Wright J4 P OWER Insert arrangement, insert side of connector. Wire Color J4 Pin Signal Chassis Green Black J5 C ONSOLE Caution! Do not connect to both console ports at the same time. -
Page 25: Chapter 4 Specifications
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 4 Specifications HAPTER PECIFICATIONS ECHNICAL PECIFICATIONS ISCO ECHNOLOGY Cisco ESS 2020 non-blocking OSI Data Layer 2 Ethernet switch-based (derivative of Cisco • IE-2000) Software options: Cisco IOS LAN Lite or Cisco IOS LAN Base images (see Cisco ESS 2020 •... -
Page 26: Management
Chapter 4 Specifications Parvus DuraNET 30-2020 Curtiss-Wright ANAGEMENT Web Device Manager, SmartPort, MIB, SNMP, syslog, RMON (LAN Lite IOS & LAN Base IOS) • DHCP server, remote switched port analyzer (RSPAN), Voice VLAN (VVID), L2 IPv6 host • capabilities, L2 HTTP over IPv6, SNMP over IPv6, customized TCAM/SDM size, Storm Control... -
Page 27: Mechanical Specifications
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 4 Specifications ECHANICAL PECIFICATIONS OWER Power input: 28 VDC nominal steady state; input range: 9-36 VDC • 6 VDC cold crank start supported • MIL-STD-704F & MIL-STD-1275D compliant: steady state voltage, ripple, surges, spikes •... -
Page 28: Figure 11. Front Panel Dimensions
Chapter 4 Specifications Parvus DuraNET 30-2020 Curtiss-Wright Figure 11. Front Panel Dimensions Figure 12. Rear View Dimensions 375” Figure 13. Side View Dimensions 400” Page 28 of 33 MNL-0654-01 Rev B3 ECO-5370 Effective: 19 Jan 18... -
Page 29: Physical
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 4 Specifications HYSICAL Weight (estimated): 4.4 lbs. (~2.01 kg) • Installation: base flange mount or side boss mount (90° rotated orientation) • Connectors: MIL-DTL-38999 Series III • Cooling: passive natural convection. no moving parts •... -
Page 30: Environmental Specifications
Chapter 4 Specifications Parvus DuraNET 30-2020 Curtiss-Wright NVIRONMENTAL PECIFICATIONS NVIRONMENTAL Meets MIL-STD-810G and DO-160G: Oper. Temperature: -40° to +85° C / -40° to +185° F (MIL-810G, Methods 501,502; DO-160G) • Storage Temperature: -55° to +85°C / -40° to 185° F (MIL-810G, Methods 501,502; DO-160G) •... -
Page 31: Chapter 5 Troubleshooting
Curtiss-Wright Parvus DuraNET 30-2020 Chapter 5 Troubleshooting HAPTER ROUBLESHOOTING RODUCT DENTIFICATION The product is labeled with the Parvus P/N and serial number. Please refer to this information when communicating with Technical Support. ECHNICAL SSISTANCE If you have a technical question or if you cannot isolate a problem with your product, please call or e-mail... -
Page 32: Chapter 6 Contact Info
Chapter 6 Contact Info Parvus DuraNET 30-2020 Curtiss-Wright HAPTER ONTACT Company contact info: Defense Solutions Division Curtiss-Wright 3222 S. Washington St. Salt Lake City, Utah, USA 84115 (801) 483-1533 FAX (801) 483-1523 Website: www.curtisswrightds.com/parvus Sales: +1(800) 483-3152 or (801) 483-1533 slp_sales@curtisswright.com... - Page 33 Curtiss-Wright Parvus DuraNET 30-2020 Chapter 6 Contact Info {Parvus back cover, 8.5 x 11 picture inserted in front of text. DO NOT DELETE THE COMMENTS OR THIS PAGE. These comments are only visible in Normal view. The picture hides these comments when you print the manual or view it in Print Layout or Print Preview.}...
