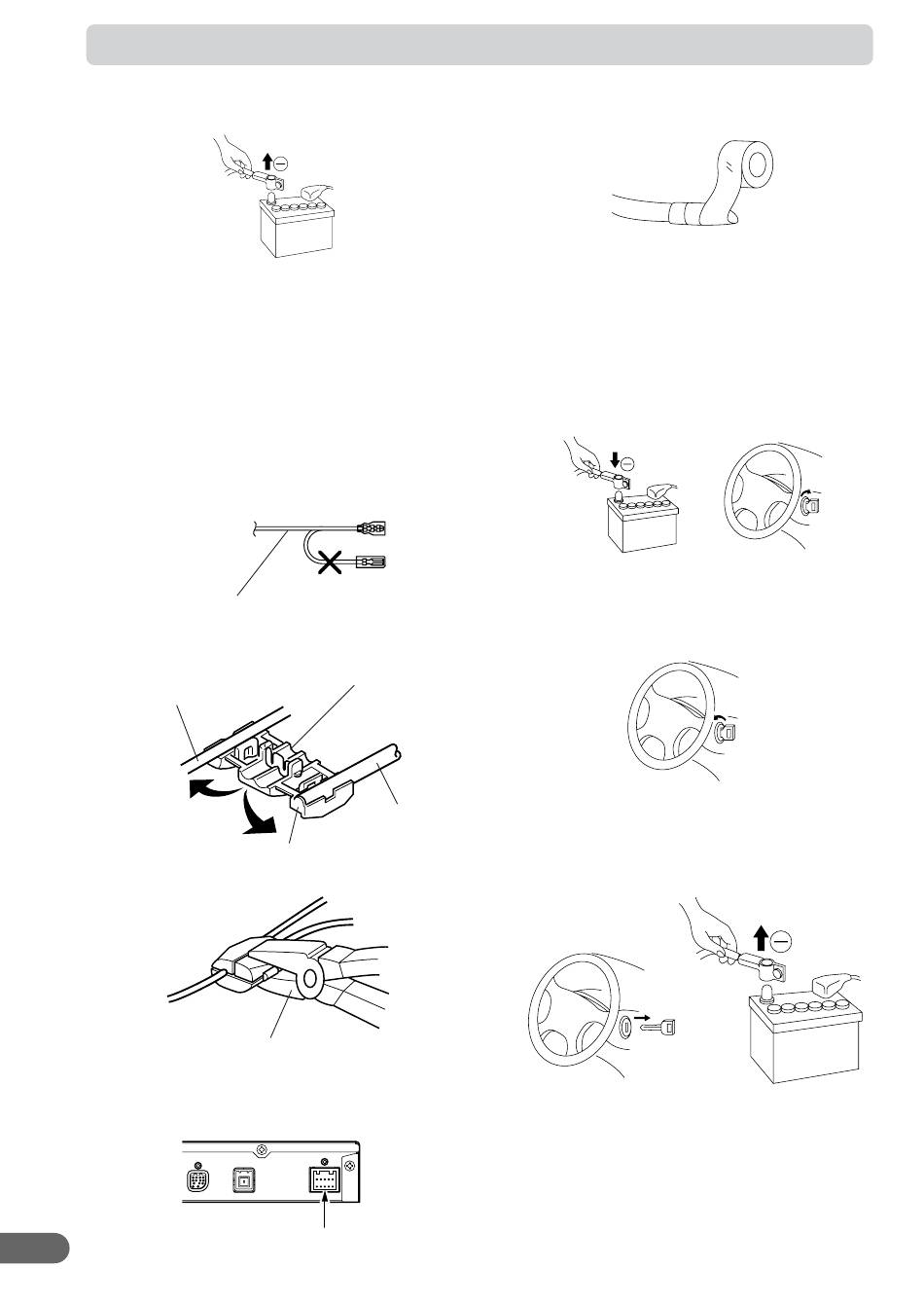

2. Connections

1
Disconnect the battery (–) terminal.
Note:
Some vehicles contain a vehicle control computer etc. in
this case, contents of the computer memory may be
erased when the battery (–) lead is disconnected.
2
Cut terminal leads as required, and attach the
solderless connectors to the leads.
Note:
For leads which need branching to the speed sensor,
dimmer, parking brake, etc., use the solderless
connectors.
Preparation
Navigation side lead
1
Vehicle lead
2
3
Connect the power lead to this unit.
Insert until a click sound is heard.
6
Solderless connector
(supplied with the unit)
Navigation
side lead
Stopper
Pliers
4
Wrap electrical tape around end of leads not
used.
5
Connect the battery (–) terminal and turn the
ignition key to the ACC or ON position. Check
to see if operation can be performed properly.
(Is the power turned on? Is the illumination
turned on?)
You can check the language selection menu with
the monitor. (Refer to the Owner's Manual for
details.) Go to step 6 after checking is completed.
6
Turn the ignition key to the OFF position to
turn off the power after completion of the
check.
7
Pull out the ignition key and remove the
battery terminal (–) again to begin installation
procedure.
