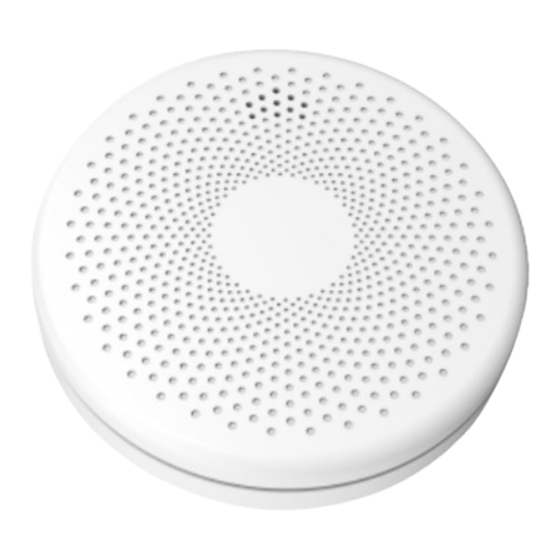

WIFI SMOKE AND CARBON MONOXIDE
Thank you for purchasing our intelligent wifi smoke and carbon monoxide
combination alarm device. Please read this manual carefully to ensure
proper use and store it in a safe place for future reference.
Product Specifications
Power: DC 2*1.5V AA Alkaline (LR6、MN1500)
Operation Current: <15uA (standby); <70mA (alarm)
Alarm Volume: >85 dB(A) at 3 meters
Smoke Sensitivity: 0.09 - 0.17 dB/m
CO sensitivity: 50ppm
Low Battery: 2.6 ± 0.1 V
Silence Time: approx. 10 minutes
Wi-Fi connectivity:802.11 b/g/n @2.4G
Comply to Standard 1: EN14604:2005/AC:2008 (for smoke detector)
Comply to Standard 2: EN50291:2010 (for carbon monoxide detector)
Packing List
1 × smoke and carbon monoxide alarm
1 × Mounting bracket
1 × Screw Kit
1 × User manual
DETECTOR
Quick Reference Guide
CS01W/12-2020/V00
60~90min
100ppm 10~40min
300ppm ≤3min
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TUYA CS01W/12-2020/V00
Summary of Contents for TUYA CS01W/12-2020/V00
- Page 1 WIFI SMOKE AND CARBON MONOXIDE DETECTOR Quick Reference Guide CS01W/12-2020/V00 Thank you for purchasing our intelligent wifi smoke and carbon monoxide combination alarm device. Please read this manual carefully to ensure proper use and store it in a safe place for future reference.
- Page 2 Product profile: Installation Instructions Where to install 1. At first you should install an alarm in the bedroom and walkway. If there are several bedrooms in the house, please install an alarm in every bedroom. 2. Install an alarm above the stairway and on every floor of the house. 3.
- Page 3 Locations to Avoid 1. High-humidity areas such as kitchens, and bathrooms; 2. Next to air outlets, fans and central heating; 3. Dusty, dirty areas or areas with insects; 4. High-temperature and easily polluted places; 5. Places with difficult access, making it difficult to operate the test function;...
- Page 4 LED and Buzzer Indicators 1. Normal status: Green LED Flashes once every 60 seconds. 2. Test status: Two sets of 3 long beeps with Red LED flashes and two sets of 4 quick beeps with Red LED flashes. 3. Smoke alarm: Red LED flashes 4 times synchronized with 4 long beeps 4.
- Page 5 Preparation for use Download and open the app Search for "Tuya Smart" or "Smart Life " in the application market or scan the QR code on the outer packaging/instructions to download and install the App. For the first download and use, please click the "register" button to register an account, if you already have an account, click the "login"...
- Page 6 corner to scan the QR code below; Follow the instruction step by step to complete the paring process. You can choice to paring the network by manual operation at next step: Paring process(EZ Mode): Step1: Open the APP enter into "My Home" ,click "Add Device" ; Step2: Select ”Security &...
