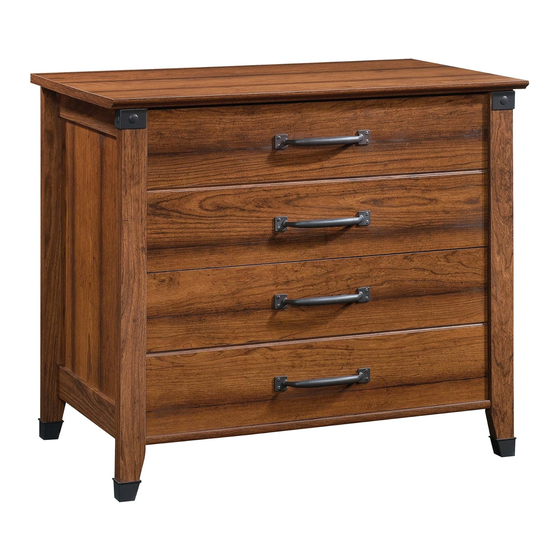

Sauder Lateral File Manual

Hide thumbs Also See for Lateral File:

Advertisement

Quick Links

Download this manual
Lateral File
Share your journey!
When you' r e feeling
nostalgic for paper.
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-28
Français pg 29-32
Español pg 33-36
05/02/19
Purchased: __________________

Advertisement

loading

Related Manuals for Sauder Lateral File

Summary of Contents for Sauder Lateral File

  • Page 1 When you’ r e feeling nostalgic for paper. Lateral File NOTE: THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. English pg 1-28 Français pg 29-32 Español pg 33-36 Share your journey! 05/02/19 Purchased: __________________...
  • Page 2 Table of Contents Assembly Tools Required Part Identifi cation No. 2 Phillips Screwdriver Tip Shown Actual Size Hardware Identifi cation Assembly Steps 6-28 Hammer Not actual size Français 29-32 Español 33-36 Tape Measure Safety 37-38 Warranty Skip the power trip. This time.
  • Page 3 Now you know Part Identifi cation our ABCs. å While not all parts are labeled, some of the parts will have a label or an inked letter on the edge to help distinguish similar parts from each other. Use this part identifi cation to help identify similar parts. RIGHT END (1) LEFT DRAWER SIDE (2) END MOLDING (4)
  • Page 4 ACCENT - 2 ® TWIST-LOCK HIDDEN CAM - 6 CAM DOWEL - 2 CAM SCREW - 4 FASTENER - 12 PULL - 4 20G DRAWER STOP - 2 29G SAFETY STOP - 2 INTERLOCK TRACK - 1 Page 4 422034 www.sauder.com/services...
  • Page 5 Hardware Identifi cation å Screws are shown actual size. You may receive extra hardware with your unit. 3S GOLD 5/16" FLAT HEAD SCREW - 16 BROWN 7/16" LARGE HEAD SCREW - 8 15S SILVER 5/8" MACHINE SCREW - 10 BLACK 2-1/4" FLAT HEAD SCREW - 4 30S BLACK 1-9/16"...
  • Page 6 Look for this icon. It means a Step 1 video assembly tip is available at www.sauder.com/services/tips Assemble your unit on a carpeted fl oor or on the å empty carton to avoid scratching your unit or the fl oor. To begin assembly, push a TWIST-LOCK®...
  • Page 7 Step Step 2 Turn four CAM SCREWS (8F) into the FRONT LEGS (E and F). å Push two HIDDEN CAMS (1F) into the DRAWER BRACES (M63). å Then, insert the metal end of a CAM DOWEL (2F) into each HIDDEN CAM. Arrow Do not tighten the HIDDEN CAMS in this step.
  • Page 8 Step Step 3 Push four HIDDEN CAMS (1F) into the ENDS (A and B). å Arrow Arrow Arrow Hole The arrow in the HIDDEN CAM must point toward the hole in the edge of the board. Page 8...
  • Page 9 Step Step 4 Turn eight BLACK 9/16" FLAT HEAD SCREWS (32S) into the ENDS (A and B) until the å shoulders of the SCREWS rest on the surfaces of the ENDS. NOTE: Do not overtighten the SCREWS. å Slide the END MOLDINGS (J) onto the ENDS (A and B). Line up the grooves in the å...
  • Page 10 Step Step 5 Fasten the CORNER ACCENTS (8E) to the FRONT å LEGS (E and F) exactly as shown. Use two SILVER 5/8" Don't worry. It isn't MACHINE SCREWS (15S). Rome. This can be built in a day. SILVER 5/8" MACHINE SCREW (2 used in this step) Angled edge Page 10...
  • Page 11 Step Step 6 Fasten the RIGHT FRONT LEG (E) to the RIGHT END (A). å Tighten two HIDDEN CAMS. Fasten a REAR LEG (G) to the RIGHT END (A). Use two å BLACK 2-1/4" FLAT HEAD SCREWS (26S). BLACK 2-1/4" FLAT HEAD SCREW (2 used in this step) Angled edge The LEGS will...
  • Page 12 Step Step 7 Fasten the LEFT FRONT LEG (F) to the LEFT END (B). å Tighten two HIDDEN CAMS. Fasten the remaning REAR LEG (G) to the LEFT END (B). å Use two BLACK 2-1/4" FLAT HEAD SCREWS (26S). BLACK 2-1/4" FLAT HEAD SCREW (2 used in this step) Angled edge The LEGS will...
  • Page 13 Step Step 8 å Insert two SAFETY STOPS (29G) exactly as shown into the RIGHT END (A). This pin must insert into the location holes in the RIGHT END (A). Edge with TWIST-LOCK® FASTENERS Page 13...
  • Page 14 Step Step 9 Diagram 1. Measure 1-1/2" from one end of the INTERLOCK TRACK (22G). Position the INTERLOCK TRACK as shown. å SAFETY STOP / TRACK ATTACHMENT: å Diagram 2. Tilt the fi rst edge of the INTERLOCK TRACK (22G) into the SAFETY STOPS (29G). Diagram 3.
  • Page 15 Step Step 10 Separate the EXTENSION SLIDES (40MC) from the EXTENSION å IMPORTANT: After fastening the RAILS (40MA) as shown in the upper diagram below. Be prepared, EXTENSION RAILS to the RIGHT END (A), the parts are greasy. the SAFETY STOPS should touch the top Fasten four EXTENSION RAILS (40MA) to the ENDS (A and B).
  • Page 16 Step Step 11 Fasten the BACKS (K) to the TOP (C). Tighten four å How to use the SAUDER TWIST-LOCK® FASTENER TWIST-LOCK® FASTENERS. 1. Insert the dowel end of the FASTENER into the hole of the adjoining part. NOTE: The dowel end of the FASTENER must remain fully inserted in the hole of the adjoining part while locking the FASTENER.
  • Page 17 Step Step 12 Fasten the RIGHT END (A) to the TOP (C). Tighten two å TWIST-LOCK® FASTENERS. i t h K ® f a c L O C S u r I S T - E R S T E N F A S Page 17...
  • Page 18 Step Step 13 Fasten the BOTTOM (D) to the RIGHT END (A). Tighten å two TWIST-LOCK® FASTENERS. Fasten the BOTTOM (D) to the BACKS (K). Use two å BLACK 1-15/16" FLAT HEAD SCREWS (113S). 113S BLACK 1-15/16" FLAT HEAD SCREW (2 used in this step) Page 18...
  • Page 19 Step Step 14 Fasten the LEFT END (B) to the TOP (C) and BOTTOM (D). å Tighten four TWIST-LOCK® FASTENERS. Hey! It's starting to look like something! i t h o K ® f a c L O C S u r I S T - E R S T E N...
  • Page 20 Step Step 15 With a hammer, gently tap four FEET (10E) onto å the LEGS (E, F, and G). Page 20...
  • Page 21 Step Step 16 VIEW THE T-LOCK BOX VIDEO The tabs should insert freely With the palm of your hand, into the slots. Gently tilt the tap the DRAWER BOTTOM DRAWER SIDES side to side down into the groove. until the tabs slip into the slots. fi...
  • Page 22 Step Step 17 Insert a SLIDE CAM (10A) into the LEFT DRAWER SIDE (D88). å Fasten an EXTENSION SLIDE (40MC) to the LEFT DRAWER SIDE (D88). å Use two GOLD 5/16" FLAT HEAD SCREWS (3S) through holes #1 and #4. NOTE: The screw head in the CAM must be visible through the slotted hole å...
  • Page 23 Step Step 18 Flip the drawer over onto the LEFT DRAWER SIDE (D88). å Insert a SLIDE CAM (10A) into the RIGHT DRAWER SIDE (D87). å Diagram 1. Insert the tabs on a DRAWER STOP (20G) into the slots in an EXTENSION SLIDE (40MC). You may need to å...
  • Page 24 Step Step 19 Fasten a FILE BRACKET (12B) to the DRAWER FRONT (I) å and DRAWER BACK (D61). Use four BROWN 7/16" LARGE HEAD SCREWS (6S). NOTE: Position the BRACKETS exactly as shown. å Repeat this step for the other drawer. å...
  • Page 25 Step Step 20 Press one of the FILE GLIDES (6B) onto the RIGHT DRAWER SIDE (D87) as shown å in the upper diagram. The FILE GLIDES are necessary to hang fi les. Next, slide the FILE RODS (9B) through a FILE BAR (1B), through the holes in the å...
  • Page 26 Step Step 21 Fasten two PULLS (53K) to the DRAWER FRONT (I). Use å four SILVER 5/8" MACHINE SCREWS (15S). Repeat this step for the other drawer. å SILVER 5/8" MACHINE SCREW (8 used for the PULLS) Page 26...
  • Page 27 Step Step 22 Carefully stand your unit upright. å If you're doing this to To insert a drawer into your unit, line up the EXTENSION å help a friend, don't SLIDES on the drawer with the EXTENSION RAILS on the leave without a bite.
  • Page 28 Step Step 23 To make adjustments to the drawers, loosen SCREW #4 in the SLIDES a 1/4 turn, then turn the CAM clockwise å or counter-clockwise. Notice how the drawer raises or lowers as you turn the CAM. The higher the screw in the oblong hole, the higher your drawer front will be.
  • Page 29 EXTRÉMITÉ DROITE ..........1 (ENSEMBLE DE GLISSIÈRE ILLUSTRÉ À PART) pour future référence. 40MA GLISSIÈRE D'EXTENSION ........4 EXTRÉMITÉ GAUCHE ..........1 Pour contacter Sauder en ce qui concerne cet 40MC COULISSE D'EXTENSION ........4 DESSUS ................1 élément, faire référence 10A EXCENTRIQUE DE COULISSE ......4 DESSOUS ................1...
  • Page 30 Fixer un PIED ARRIÈRE (G) à l'EXTRÉMITÉ DROITE (A). Utiliser deux VIS TÊTE PLATE 57 mm NOIRES (26S). Pour commencer l'assemblage, enfoncer une FIXATION TWIST-LOCK® SAUDER (10F) dans les gros trous dans les EXTRÉMITÉS (A et B), le DESSOUS (D) et les ARRIÈRES (K). ÉTAPE 7 Fixer le PIED AVANT GAUCHE (F) à...
  • Page 31 FIXATIONS TWIST-LOCK®. 4 Fixer l'ARRIÈRE DE TIROIR (D61) aux CÔTÉS DE TIROIR (D87 Utilisation de la FIXATION TWIST-LOCK® SAUDER et D88) et à l’ENTRETOISE DE TIROIR (M63). Utiliser cinq VIS TÊTE PLATE 40 mm NOIRES (30S). Répéter cette étape pour 1.
  • Page 32 ÉTAPE 17 ÉTAPE 20 Insérer une EXCENTRIQUE DE COULISSE (10A) dans le CÔTÉ Appuyer l’une des ARMATURES POUR DOSSIERS (6B) GAUCHE DE TIROIR (D88). sur le CÔTÉ DE TIROIR DROIT (D87) comme l'indique le schéma supérieur. Les ARMATURES POUR DOSSIERS sont Fixer une COULISSE D’EXTENSION (40MC) au CÔTÉ...
  • Page 33 Si EXTREMO IZQUIERDO ..........1 10E PATA ..................4 necesita ponerse en PANEL SUPERIOR ............1 EXCÉNTRICO ESCONDIDO .......6 contacto con Sauder en FONDO .................1 PASADOR DE EXCÉNTRICO ......2 cuanto a esta unidad, refi érase al número D61 DORSO DE CAJÓN ...........2 BIELA DE EXCÉNTRICO ........4...
  • Page 34 TORNILLOS NEGROS DE CABEZA PERDIDA de 57 mm (26S). Para comenzar el ensamblaje, empuje un SUJETADOR TWIST-LOCK® SAUDER (10F) dentro de los agujeros grandes de los EXTREMOS (A y B), del FONDO (D) y de los DORSOS (K). PASO 7...
  • Page 35 4 Fije el DORSO DE CAJÓN (D61) a los LADOS DE CAJÓN (D87 SUJETADORES TWIST-LOCK®. y D88) y a la RIOSTRA DE CAJÓN (M63). Utilice cinco Cómo utilizar el SUJETADOR TWIST-LOCK® SAUDER TORNILLOS NEGROS DE CABEZA PERDIDA de 40 mm (30S). Repita este paso para el otro CAJÓN.
  • Page 36 PASO 17 PASO 20 Inserte un EXCÉNTRICO DE CORREDERA (10A) dentro del LADO Presione uno de los CORRIMIENTOS DE ARCHIVERO (6B) sobre IZQUIERDO DE CAJÓN (D88). el LADO DERECHO DE CAJÓN (D87) como se muestra en el diagrama superior. Los CORRIMIENTOS DE ARCHIVERO son Fije una CORREDERA DE EXTENSIÓN (40MC) al LADO IZQUIERDO necesarios para colgar los archivos.
  • Page 37 CAUTION Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items. Carefully read the following chart. Look out for: What can happen: How to avoid the problem: • Overloaded drawers. •...
  • Page 38 PRECAUCIÓN Por favor use el mobiliario correcta y seguramente. El mal uso puede causar riesgos de seguridad o daño a las unidades o artículos domésticos. Cuidadosamente lea la tabla a continuación. Evitar el problema: Esté alerto de: Puede ocurrir: • Cajones sobrecargados. •...
  • Page 39 à compter de la date d'achat la première fois et qui sont signalés à Sauder dans les limites de couverture de la contre tout défaut de matériaux ou de fabrication des composantes de mobilier Sauder.
