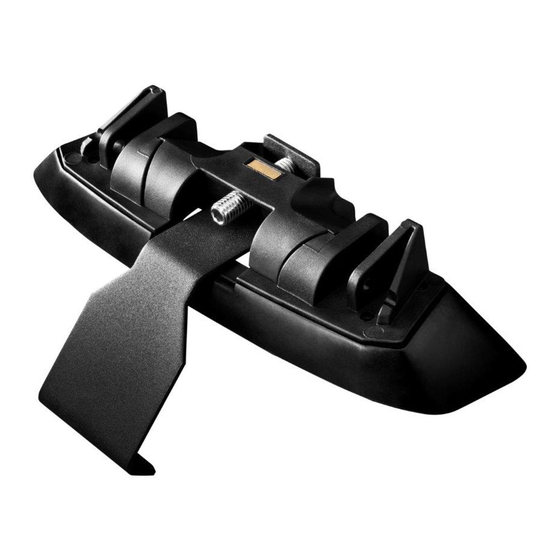

- Page 1 K949W Fitting Kit Fitting Instructions for Basic Carrier Revision No: 4D...

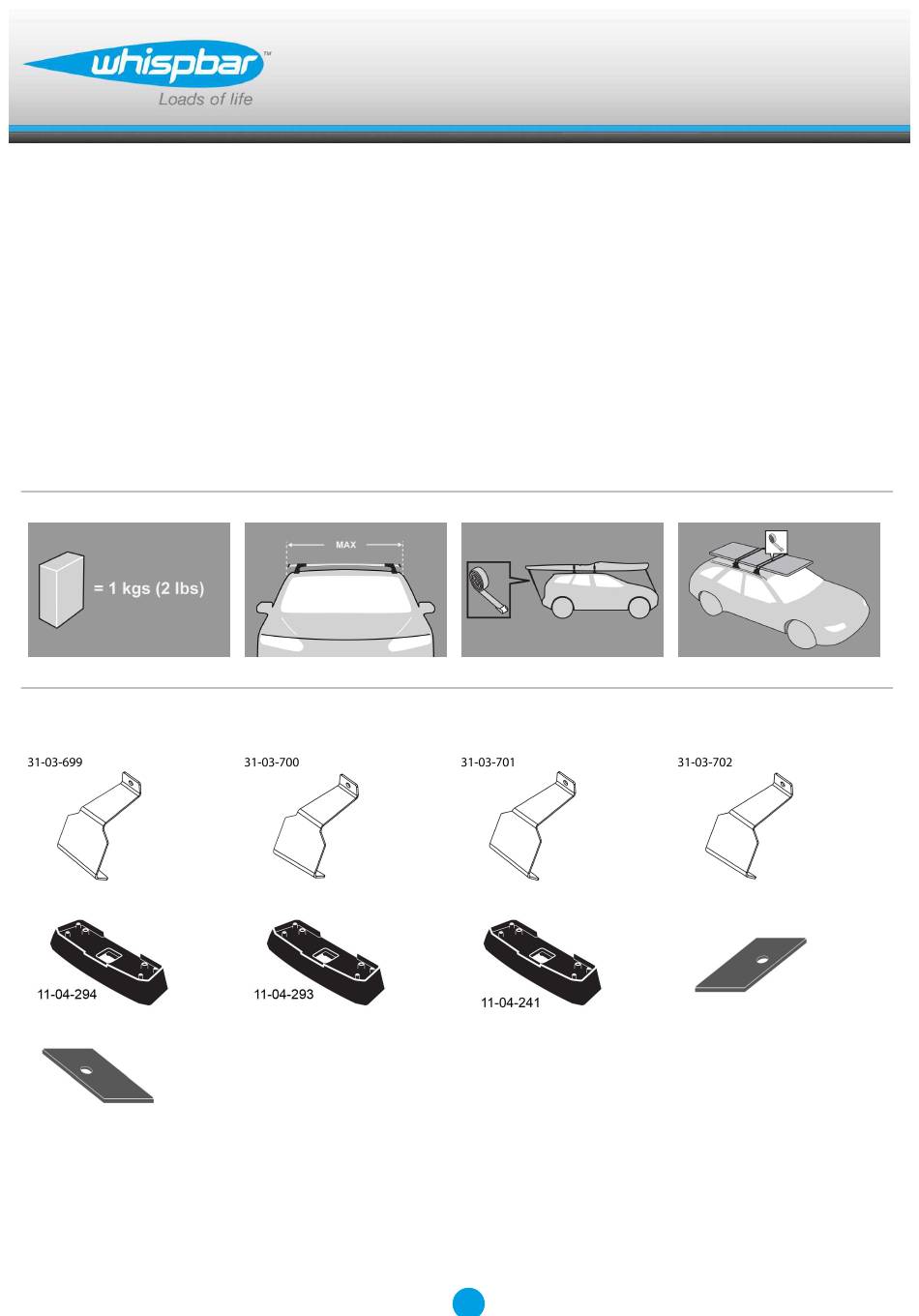

- Page 2 Fitting Kit K949W MAX kgs (lbs) Skoda Superb, 5dr Hatch 15-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Superb, 5dr Hatch 15-+ 75 kgs (165 lbs) 100 kgs (220 lbs) Superb, 5dr Hatch 15-+ 75 kgs (165 lbs) 100 kgs (220 lbs)
- Page 3 Fitting Kit K949W Superb, 5dr Hatch 15-+ (NZ) -325mm 395mm 920mm 890mm -12 -13/16ths" 15 9/16ths" 36 1/4ths" 35 1/16ths" Superb, 5dr Hatch 15-+ (EU) -325mm 395mm 920mm 890mm -12 -13/16ths" 15 9/16ths" 36 1/4ths" 35 1/16ths" Superb, 5dr Hatch 15-+ (CN)
-
Page 4: First Time Installation
Fitting Kit K949W First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 5 Fitting Kit K949W Use keys to remove covers. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is adjusted equally. Remove locking screw.
- Page 6 Fitting Kit K949W Apply protective strip as shown. Trim if required. Refer to the underside of the pad for the part number. Use hex screwdriver to reverse adjusting screw 10 turns.
- Page 7 Fitting Kit K949W It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 11-04-241A B = 11-04-293A C = 11-04-294A Place rubber pads (supplied with fitting kit) on the vehicle roof.
- Page 8 Fitting Kit K949W It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps. Clamp Part Number: A = C700 B = C699 C = C701 D = C702 Attach clamp to each leg.
- Page 9 Fitting Kit K949W Fitment Clamps directly to edge of roof under the doors Please check the front of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 10 Fitting Kit K949W Tighten adjusting screw to 3 Nm (2.2 ft lb) hand tight. Tighten locking screw on both legs evenly, 2.5 Nm (1.8 ft lb). Check crossbar is securely attached to the vehicle.
- Page 11 Fitting Kit K949W Use keys to fit and lock covers CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 12: Maintenance
Fitting Kit K949W Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 13 Fitting Kit K949W Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
