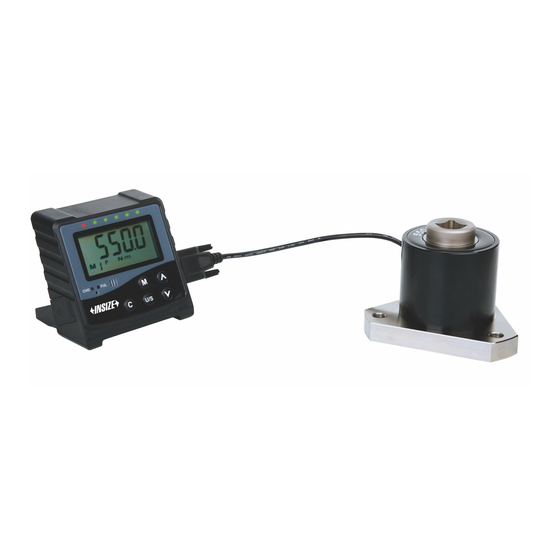

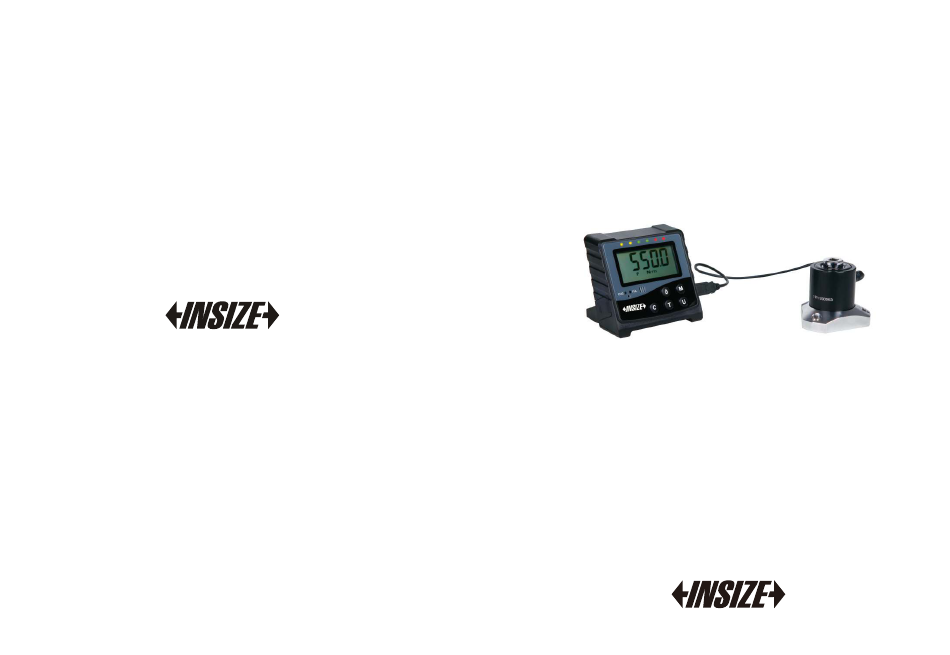

- Page 1 IST-TT SERIES-E www. insize. com IST-TT SERIES DIGITAL TORQUE TESTER OPERATION MANUAL...
-
Page 2: Product Introduction
Attention Product introduction Main features Over-torque (110% of Max. torque range) could cause breakage or With external sensor, to test torque wrenches, torque screwdrivers lose accuracy. and other torque tools Keep work area clean. Clockwise and counter-clockwise operation Peak, first peak and track working modes Do not use the torque transducer with impact or impulse tools. -
Page 3: Menu Setup
Display screen Menu set up Set Torque Value, low and high limits, automatic power off 1. Torque value Press 2. P(Peak hold mode) T(Track mode) 1P(first peak mode) Press to set 3. Battery status icon torque value Basic operations Pre-setting torque value Press Power on and zeroing the torque tester Connect the sensor to the display and connect the USB cable... - Page 4 Measurement mode selection Track mode operation Start (System initial) (set zero) Press Apply torque Press for selection Below tolerance, yellow LED light on Apply torque Unit selection Between tolerance, green LED light on Unit selection Press Apply torque Above tolerance, red LED light on Press Released...
- Page 5 Peak hold mode operation First peak mode operation Start Start (System initial) (System initial) (set zero) (set zero) Apply torque Apply torque Below tolerance, yellow LED light on Apply torque Relax after achieve the first peak torque, The LED light prompted by three segments based on the Between tolerance, torque value.
