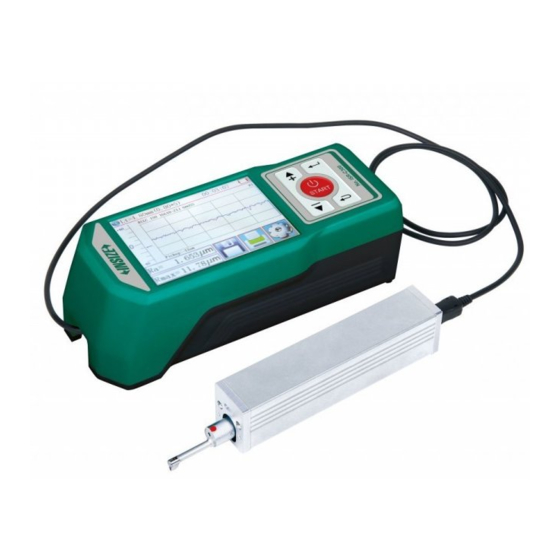

- Page 1 MN-ISR-C300-E www.insize.com ISR-C300 ROUGHNESS TESTER (SEPARABLE TYPE) OPERATION MANUAL...
- Page 2 Metal case design for driver unit, rugged, compact, portable, high Introduction reliability; Can connected to the computer and printer; The surfaces roughness tester is a small handheld instrument, for shop All parameters can be printed or print any of the parameters which set floor use and mobile measure, it operation simple, function overall, by the user;...
- Page 3 Name of each part {┱ 〈 ┆ ■ ┧ Tube Sensor body Socket Sensor 1 Bluetooth Mark；2 Assess length；3 Filter；4 Working Time； 5 Start Touch key area；6 Pickup position；7 Hint information area； 8 Range；9 Master results display；10 Slave results display； 11 Battery level；12 Profile scale；13 Profile display area；...
- Page 4 6 6 6 6 6 6 6 Battery Charging When battery voltage is too low (that is, battery voltage symbol display on screen to prompt low voltage), the instrument should be charged as soon as possible. USB port of the instrument for charging. You can use the built-in power adapter for charging, you can also use computer's USB port for charging.
-
Page 5: Measuring Operation
Measuring Operation Remove method ａ Preparation for Measurement Switch-on to check if battery voltage is normal; Clear the surface of part to be measured; Place the instrument correctly, stably and reliably on the surface to be measured; Trace of the pickup must be vertical to the direction of process line of the measured surface. - Page 6 Start measurement In the main interface display mode, Press the Start key or Start key touch area to start measuring. The measurement can be stopped according to ESC. Measurement result display Print measurement results The instrument can be connected to the printer. The measurement After the measurement, if you need to look at all the measurement results will be printed.
- Page 7 1.Master results display and slave results display 2.BPS rate setting The BPS rate of communication between instrument and printer or System Setting between instrument and APP of mobile phone. Default BPS rate 115.2K 3.Auto shutdown Set to ON instrument for 600 seconds without operation will be automatically shutdown .
- Page 8 7. Rpc Details settings 10.Reset factory settings According to user's demand, Rpc-parameter's calculation can be 11.Format memory selected from "μm" and "%". Data formatting is the deletion of data records. Once formatted, all 8.Date and Time settings data will be emptied. Before the data formatting, the instrument has the confirmation prompt information.
- Page 9 Record Management Click on the corresponding record to see the details of the record. 1. Under normal circumstances, the instrument in the factory have been rigorously tested, showing error is much less than ± 10%, in this case, the user is not showing the value of the calibration frequently used functions.
- Page 10 Mobile APP This instrument supports the wireless Bluetooth function, such as in the high altitude or pipeline operation is inconvenient to directly operate the instrument keys, Bluetooth remote operation function can be used. This mobile phone APP currently supports Android version 6 or more. Use mobile phone APP to control the instrument, please set the Bluetooth mode to data transmission mode, and turn on the Bluetooth power ,the connection password is 1234, It can be used when connect...
-
Page 11: Options And Usage
Dataview of software Options and Usage Dataview of software can easily be waveform analysis and print measurement results uploaded to the PC machine. Use USB cable to connect computer data processing software to set Adjustable height support feet the tester baud rate 921.6 k. When the measured surface of the workpiece is smaller than the bases of the instrument, the adjustable height support feet can be used as an auxiliary support to complete the measurement. - Page 12 Groove Sensor Extra small hole sensor operation method The skid of the extra small hole sensor is behind the stylus. When it The groove sensor is the standard sensor of the roughness meter, and contacts the workpiece, the pickup position is first high and then low. its demension are as follows: The use of extra small hole sensors must be installed on the measuring stand for measurement.
-
Page 13: Technical Parameter And Features
Support for cylindrical surface Technical Parameter and Features It is suitable for measuring the roughness of cylindrical object which can not be measured directly. The nosepiece can protect the sensor effectively. Name Content The Z axis 320μm (-160μm~160μm) / 12600よin (-6300よin~+6300よin) Measurement (vertical) Range... -
Page 14: General Maintenance
Measuring Range The instrument is a precision measuring instrument, should always be handled with care, to avoid the shock. P a ra m e te r M e a s u rin g ra n g e Pay attention to add oil to maintain regularly every year to 0 .0 05 μm 3 2μ... - Page 15 References Terms The instrument calculate parameters on the filter profile and the direct profile , all calculated in line with the GB / T 3505-2000 "Geometrical Product Specification(GPS) —— Surface texture: Profile method——Term,definitions and surface texture parameters." Terms Parameters Definitions Filtered profile: profile signal after primary profile is filtered to remove waviness.
- Page 16 Recommended table of the sampling length 1 1 1 3 Maximum Height of Profile Rz Rz is The sum of height Zp of the highest profile peak from the mean line and depth Zv of the deepest profile valley from the mean line within sampling length。...
