Roughneck 37906 Owner's Manual

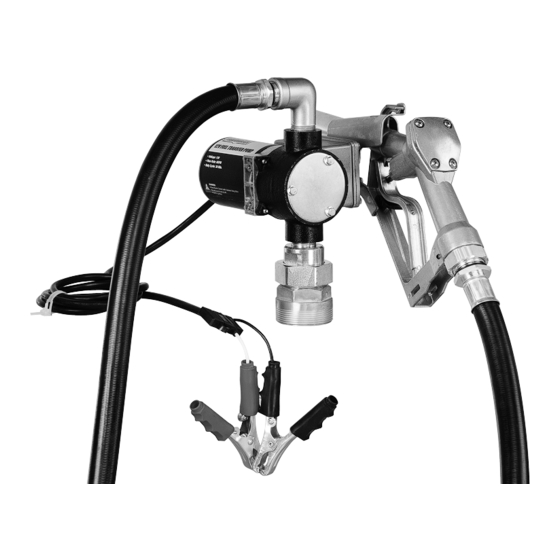

12V DC FUEL TRANSFER PUMP KIT
OWNER'S MANUAL
WARNING:
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other
basic safety precautions may result in serious personal injury.
Item # 37906
12V DC FUEL TRANSFER PUMP KIT OWNER'S MANUAL
Thank you very much for choosing a Roughneck™ Product! For future reference, please complete
the owner's record below:
Model: _______________ Purchase Date: _______________
Save the receipt, warranty and these instructions. It is important that you read the entire manual
to become familiar with this product before you begin using it.
This machine is designed for certain applications only. The distributor cannot be responsible for
issues arising from modification. We strongly recommend this machine is not modified and/or
used for any application other than that for which it was designed. If you have any questions
relative to a particular application, DO NOT use the machine until you have first contacted
distributor to determine if it can or should be performed on the product.
For technical questions, please call 1-800-222-5381.
WARNING:
Read carefully and understand all INSTRUCTIONS before operating.
Failure to follow the safety rules and other basic safety precautions may result in
serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.

INTRODUCTION

These products are positive displacement gear pumps. Depending on installation and viscosity,
these pumps can deliver up to 8 GPM or 30 LPM. Their rugged design makes for a long life of
dependability.

TECHNICAL SPECIFICATIONS

• Inlet: 2in. male on tank adapter, 3/4in. female on pump
• Outlet: 3/4in. female for 8 GPM/ 30LPM
• Built-in bypass valve.
• Furnished with:
• 13-ft./4m delivery hose
• 1-pc. steel suction pipe
• 1-pc. aluminum manual nozzle.
• 1 pc. 2in. quick-change coupling
• Electrical Specifications
ELECTRICAL POWER CURRENT
Model
Current Voltage Maximum (Amp)
37906
DC 12

Fluid compatibility

If in doubt about compatibility of a specific fluid, contact supplier of fluid to check for any
adverse reactions to the wetted materials.
The pump is compatible with the following fluids:
• Diesel, Kerosene, Mineral spirits
Do not use the pump with the following fluids:
• Gasoline, Water, Sulfuric acid, Naphtha, Methanol, Methyl Ethyl ketone (MEK), Acetone,
Ammonia, Benzene, Bleach, Chlorine.
WARNING:
This product should not be used for fluid transfer into aircraft. This
product is not suited for use with fluids for human consumption or fluids containing water.

OPERATING CONDITIONS

Temperature: Minimum -4°F (-20°C) / Maximum 140°F (60°C)
Relative Humidity: Maximum 90%
Flow Rate
(L/min /GPM)
25 30/8
1 of 5
