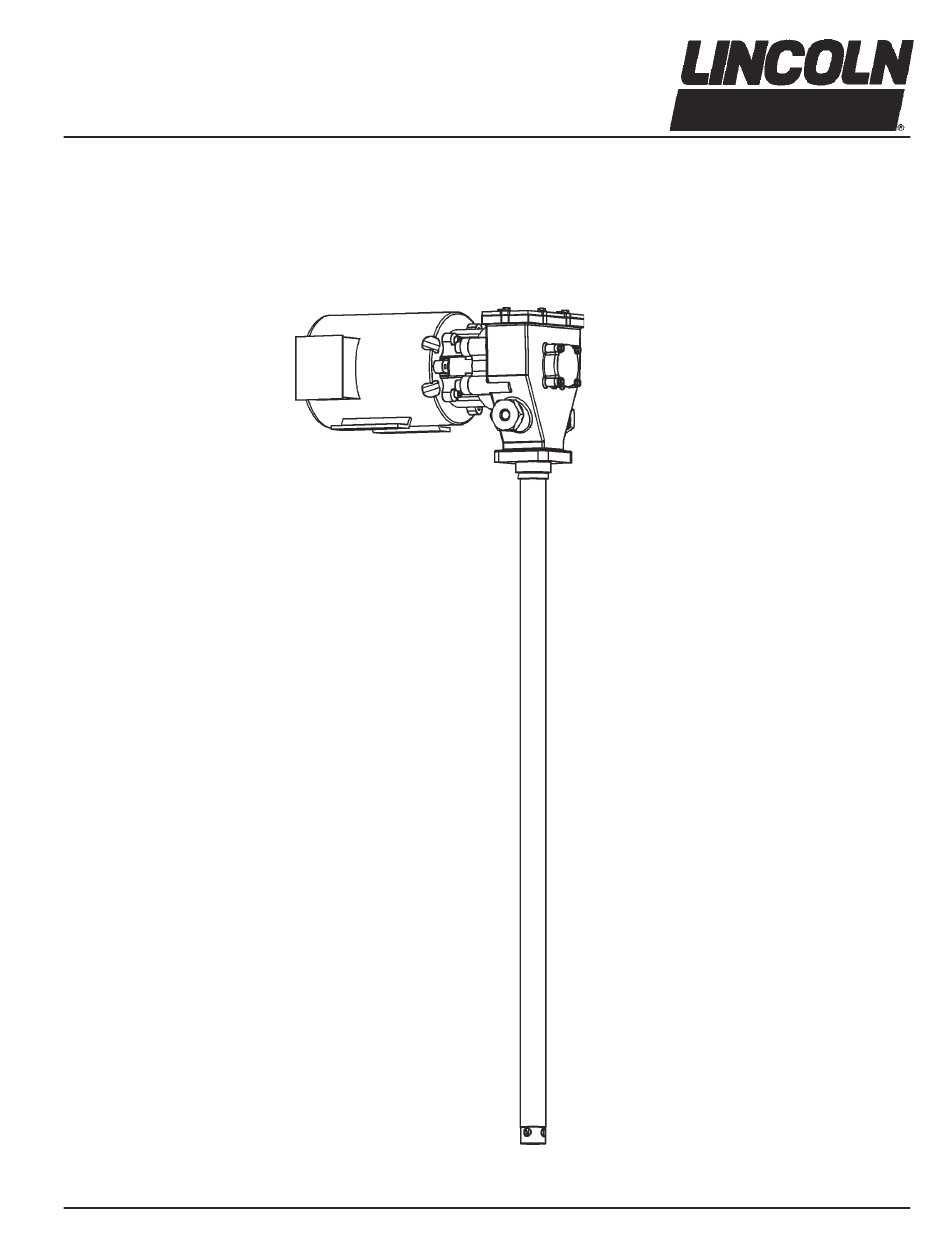

- Page 1 FlowMaster™ Rotary Driven Electric Pump, 120/230 VAC Models: 85588 and 85589 Series “A” U.S. Patent No. 6,102,676 Foreign Patent Pending - 300 - C8 Form 422823 April 2003 Section Page...
-
Page 2: Table Of Contents
Operate this pump only after safety instructions and this General Description service manual are fully understood. The Lincoln Industrial rotary A/C electric pump uses a 120- 230 VAC dual voltage motor and a single stage planetary gear drive. Grease output is proportional to the pump RPM. -
Page 3: Pump Performance And Specifications
Typical installation is shown only as a guide for selecting could result in personal injury and equipment damage. and installing system components. Contact your Lincoln Always install a relief valve in the pump outlet to insure pump Industrial representative for assistance in designing a pressure is below 5,000 PSI. -
Page 4: Operation
Always use Lincoln Industrial parts for service and repair. Crank Case Oil Check the oil after every 100 hours of operation or monthy. - Page 5 FlowMaster™ Rotary Driven Electric Pump 9. Remove the two outlet pin nuts (32) from the housing (68). reciprocating tube (20) is inserted through both 10.Remove the pump subassembly (1 through 27) from the bushings before tightening the housing tube (56). pump housing (68).
- Page 6 FlowMaster™ Rotary Driven Electric Pump MODEL DIM "A" in (mm) DIM "B" in (mm) 85588 34.0 (864) 41.6 (1057) 85589 27.5 (699) 35.1 (892) Illustration #5 Page Number - 6 Form 422823...
- Page 7 FlowMaster™ Rotary Driven Electric Pump Illustration #6 Form 422823 Page Number - 7...
-
Page 8: Repair Parts List
FlowMaster™ Rotary Driven Electric Pump Repair Parts List (Common to all Models) Item No. Qty Description All Models Item No. Qty Description All Models Flat Head Screw Outlet, Pin-Nut 270619 (1/4 x 1-3/4) 270635 O-Ring Counter Weight 272197 Backup Washer Retaining Ring 270609 O-Ring... -
Page 9: Troubleshooting
FlowMaster™ Rotary Driven Electric Pump Troubleshooting Condition Possible Cause Corrective Action Pump does not run. Pump is seized or damaged. Dismantle the pump and repair defective or seized component. See disassembly and assembly procedure. Pump speeds up or runs erratically. Low level of grease or reservoir Refill reservoir. - Page 10 FlowMaster™ Rotary Driven Electric Pump Lincoln Industrial Lincoln Industrial Lincoln GmbH © Copyright 2003 25 International Business Park One Lincoln Way 69190 Walldorf Printed in USA Heinrich-Hertz Strasse 2-8 #01-68 German Centre St. Louis, MO 63120-1578 (+49) 6227 33-0 Singapore 609916...
