Summary of Contents for Element M10T

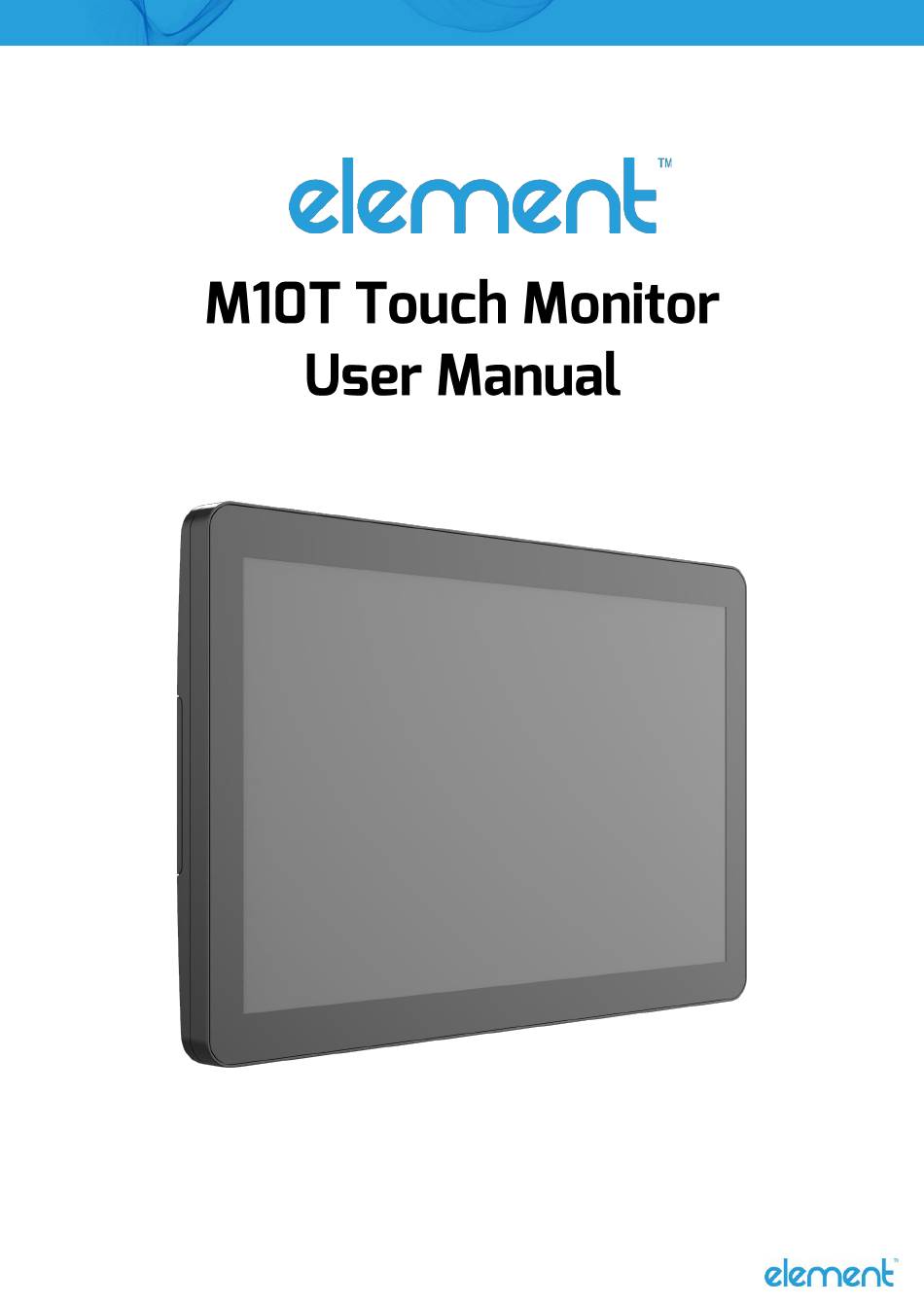

- Page 1 M10T Touch Monitor User Manual I Page 1 of 30...
-
Page 2: Introduction
Element reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Element to notify any person of such revisions or changes. Windows is a registered trademark of Microsoft, Inc. Other brand or product names are trademarks of their respective holders. -
Page 3: Table Of Contents
Connecting a Display Port cable……………………………………………………………………16 Connecting a HDMI cable…………………………………………………………………………..16 Connecting a VGA cable………………………………………………………………………….….17 Connecting a Type-C cab………………………………………………………………………...…17 Mounting…………………………………………………………………………………………….……18 On Wall mount……..…………………………………………………………………………….…...18 Operating the Monitor…………………….……………………………….…………………………19 Setting up the Monitor…………………………………………………………………………….…..19 Adjusting Input Source………….………………………………………………………….………19 M10T Touch Monitor User Manual I Page 3 of 30... - Page 4 O S D M e n u ………………………………………………………………………………………………..………………24 Option Menu………………………………………………….………………………………………………………25 OSD Default Settings…………………………………………..……………………………………………………….26 Supported Timings……………………………………………………………………………………………………27 EDID Data………………………………………………………………………………………………………………27 Dimensions……………………………………………………………………………………………………………..28 Front View…………………………………………………………………………………………………………………28 Side View……………………………………………………………………………………………………………….28 Rear View……………………………………………………………………………………………………………….29 IO Ports View………………………………………………………………………………………………………….29 Regulation……………………………………………………………………………………………………………….30 Compliance Information………………………………………………………………………………………….30 M10T Touch Monitor User Manual I Page 4 of 30...
-
Page 5: Important Safety Instructions
Use only the qualified power adapter that comes with your device. • Disconnect the power plug from AC outlet if the product is not going to be used for an extended period of time. M10T Touch Monitor User Manual I Page 5 of 30... - Page 6 Do not operate the product under the following conditions: Extremely hot, cold, or humid environment. ◦ Areas susceptible to excessive dust and dirt. ◦ Near any appliance generating a strong magnetic field. ◦ M10T Touch Monitor User Manual I Page 6 of 30...
-
Page 7: Warnings
Do not insert the power plug into an outlet other than 100~240V AC. Do not use a damaged power plug or worn outlet. ◦ Do not insert an improper power plug it may cause fire or electric shock. ◦ M10T Touch Monitor User Manual I Page 7 of 30... - Page 8 NOTE: Recommended to use power supply/cable that comes with Element product. • Do not place the monitor on an unstable shelf or surface. • Do not place objects on the monitor. • If the monitor is covered or the vents are blocked, the monitor could overheat and cause a fire.
-
Page 9: Use
• If you encounter a problem during installation, please contact your distributor or Element directly. • Protect and correctly use the power cord/plug. • Use only the qualified power adapter that comes with your device. • Do not pinch the power cord/plug between hard surfaces. -
Page 10: Cleaning
Cleaning the surface of the monitor by wiping it gently with a soft, clean cloth. If the surface requires additional cleaning, lightly moisten the cloth. ◦ Do not clean the monitor with abrasive cleaners, waxes, or solvents, as this ◦ could damage the monitor. M10T Touch Monitor User Manual I Page 10 of 30... -
Page 11: Specifications
Dimension (W x H x 245.5 mm x 170.5 mm x 30.3 mm Size and Weight Net Weight 0.94 kg Gross Weight 9.7 kg Wall Mount (VESA) 75 mm x 75 mm M10T Touch Monitor User Manual I Page 11 of 30... -
Page 12: Package Contents
(optional) 1 • Available accessories in your package may vary from the actual contents and the product supplied for your region. Please contact your distributor or Element for more information. Getting to know your monitor M10T Touch Monitor User Manual I Page 12 of 30... -
Page 13: Front View
Front View Display Screen Rear View Power Key OSD Keypad Input and Output Ports (see ports details on the next page) M10T Touch Monitor User Manual I Page 13 of 30... -
Page 14: Input And Output Ports
(complied with LPS or PS2), Tma = 40 degree C minimum, and the altitude of operation = 3048m minimum. If it needs further assistance with purchasing the power source, please contact to Element for further information. M10T Touch Monitor User Manual I Page 14 of 30... -
Page 15: Making Connections
Connect the audio cable to the Audio In port at the rear of the monitor. Connect the other end of the cable to the audio port on the computer or device. M10T Touch Monitor User Manual I Page 15 of 30... -
Page 16: Connecting A Display Port Cable
Connect the HDMI cable to the HDMI port at the rear of the monitor. Connect the other end of the cable to the HDMI port on the computer or device. M10T Touch Monitor User Manual I Page 16 of 30... -
Page 17: Connecting A Vga Cable
Connect the one end of USB Type-C to the USB-C port at the rear of the monitor. Connect the other end of USB Type-A to the USB port on the computer or device. M10T Touch Monitor User Manual I Page 17 of 30... -
Page 18: Mounting
Mounting On Wall mount The M10T Touch Monitor has a VESA standard mount with 75mm pattern located at the rear of the monitor, allowing the installation of a wall mount bracket for horizontal (output connectors facing down) and vertical (output connectors facing right) orientations. Before starting the installation, please follow the instructions carefully. -
Page 19: Operating The Monitor
(▲▼) to navigate to the desired input source, and press MENU to exit. NOTE: If there is no signal input for a period, a “No signal” message will appear and go into standby mode automatically. M10T Touch Monitor User Manual I Page 19 of 30... -
Page 20: Using The Remote Keypad
Using the Remote Keypad The M10T Touch Monitor provides a remote keypad in the right-rear side of the display. See the following table for the functions: Function Descriptions MENU Activate the main menu Menu / Exit selection Brightness Menu Up / Adjust Up... -
Page 21: Navigating The Osd Menus
NOTE: The OSD menu will automatically close if you have left it idle for a pre-set time. OSD Menu using tips OSD menu options may vary depending on the input sources, functions, and settings. Menu options that are not available will become grayed out. M10T Touch Monitor User Manual I Page 21 of 30... -
Page 22: Picture Menu
Adjust the pixel phase of picture. VGA input only Clock Adjust the horizontal dot of picture. VGA input only Auto Adjust Adjust and fine-tune the image to full screen automatically. VGA input only M10T Touch Monitor User Manual I Page 22 of 30... - Page 23 Adjust the amount of blue in bright content. Sharpness Adjusts the clarity and visibility of picture. NOTE: When the monitor is set in native resolution (1:1), Sharpness setting is unavailable. M10T Touch Monitor User Manual I Page 23 of 30...
-
Page 24: O S D M E N U
Options: Top Left, Bottom Left, Top Right, Bottom Right, Center OSD H-Position Adjust the horizontal position of the OSD menu. OSD V-Position Adjust the vertical position of the OSD menu. M10T Touch Monitor User Manual I Page 24 of 30... -
Page 25: Option Menu
Display the current resolution related information. Volume Adjust the audio volume level. Mute Mute the audio. Factory Enter factory mode This is for maintenance service only. Do not operate this function. M10T Touch Monitor User Manual I Page 25 of 30... -
Page 26: Osd Default Settings
V-Position Phase Clock Auto Adjust Color Temp User Advanced Sharpness OSD Timeout OSD Position User OSD H- Position OSD V- Position Reset Language English Option Source Select Auto Volume Mute M10T Touch Monitor User Manual I Page 26 of 30... -
Page 27: Supported Timings
The monitor assembly shall provide a display communications channel that conforms to VESA DDC2B hardware requirements. This configuration shall contain the 128-byte EDID file as specified by VESA EDID Standard. M10T Touch Monitor User Manual I Page 27 of 30... -
Page 28: Dimensions
Dimensions Front View Side View M10T Touch Monitor User Manual I Page 28 of 30... -
Page 29: Rear View
Rear View IO Ports View M10T Touch Monitor User Manual I Page 29 of 30... -
Page 30: Regulation
For IC (Canada) CAN ICES-003(B)/NMB-003(B) For CE (EU) The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU M10T Touch Monitor User Manual I Page 30 of 30...
