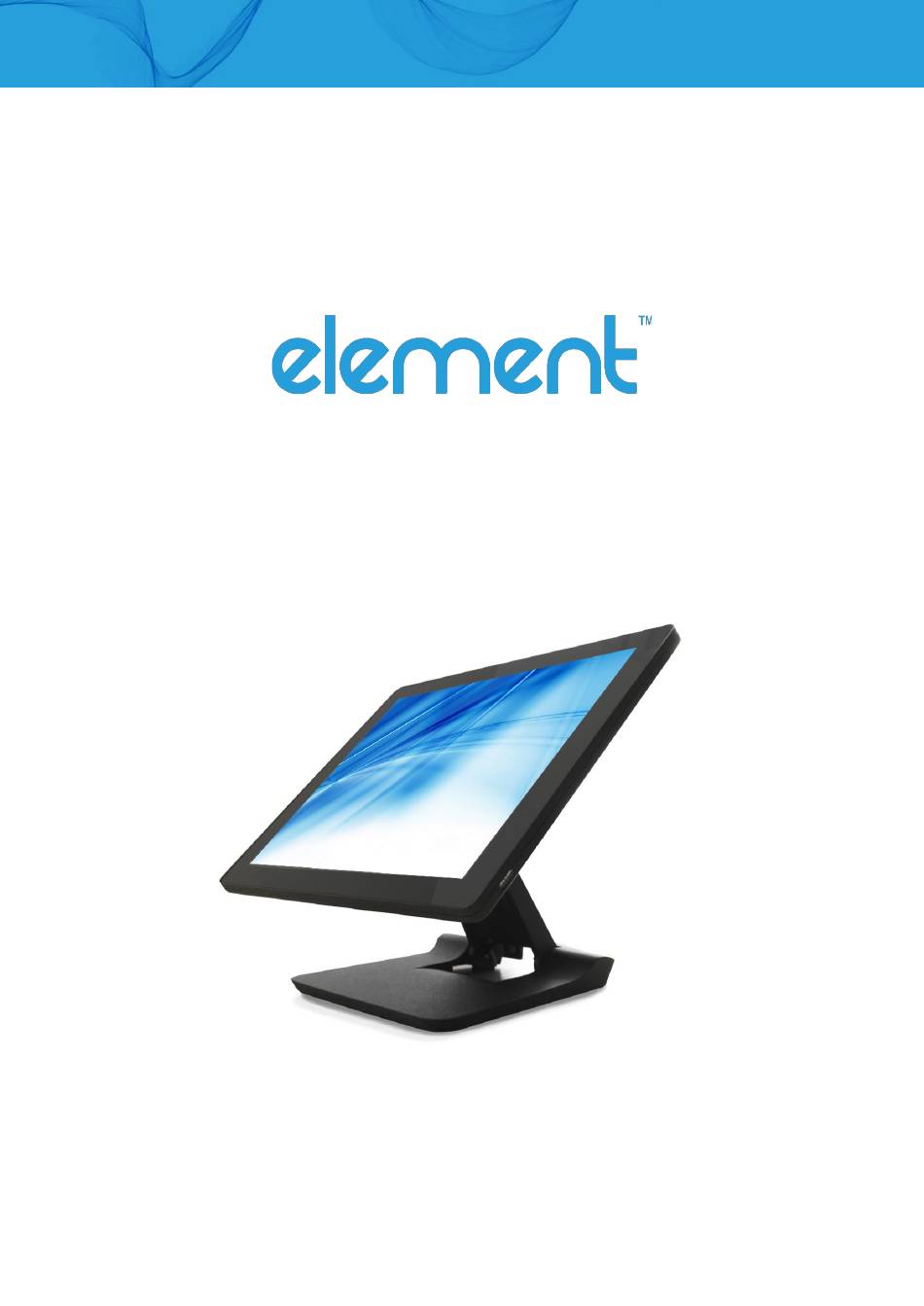

  • Page 1 455W POS Terminal User Manual...
  • Page 2 Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Element 455W User Manua I Page 2 of 32...
  • Page 3 For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1 Element 455W User Manua I Page 3 of 32...
  • Page 4 Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Element 455W User Manua I Page 4 of 32...
  • Page 5 Revision History Changes to the original user manual are listed below: Element 455W User Manua I Page 5 of 32...

  • Page 6: Table Of Contents

    4-3. Install the Second Display ....................16 4-4. Cash Drawer Installation ....................17 5. Specification ..........................19 6. Configuration ..........................21 6.1 F34 Motherboard ......................21 6.2 F64U Motherboard ......................27 Element 455W User Manua I Page 6 of 32...

  • Page 7: Packing List

    1. Packing List 1-1. Standard Accessories System Power adapter Power cord RJ45-DB9 cable (x2) Note: Power cord will be supplied differently according to various region or country. Element 455W User Manua I Page 7 of 32...

  • Page 8: Optional Accessories

    1-2. Optional Accessories MSR module Fingerprint module iButton module Customer display 11.6" 2 display Element 455W User Manua I Page 8 of 32...

  • Page 9: System View

    2. System View 2-1. Front & Side View Description Touch screen Fingerprint (option) MSR (option) Power button Stand Stand front cover 2-2. Rear View Description VESA top cover SSD door Cable cover Element 455W User Manua I Page 9 of 32...

  • Page 10: Io Ports View

    COM x 2 Cash drawer F64U Motherboard Description FeDP (2 display) DC 19V in USB 2.0 x 2 USB Type C x 2 (USB3.0) USB 3.0 x 2 COM x 2 Cash drawer Element 455W User Manua I Page 10 of 32...

  • Page 11: System Dimensions

    2-4. System Dimensions 415 mm 369 mm 201 mm 217 mm Element 455W User Manua I Page 11 of 32...

  • Page 12: System Assembly & Disassembly

    IO panel to release it from the system. Reverse the steps above to attach stand to the system. 3-2. Remove the Cable Cover 1. Pull the cable cover upwards to release it from the system. Element 455W User Manua I Page 12 of 32...

  • Page 13: Install The Power Adapter

    3-1. Remove the screw (x1) to release the SSD dummy cover. Remove the screws (x2) and pull the M.2 SSD cards outwards as shown in the picture. Element 455W User Manua I Page 13 of 32...

  • Page 14: Peripheral Installation

    Remove the dummy cover first. Insert the MSR / Fingerprint / iButton module in place and fasten the screws (x2) on the back to secure the module. Element 455W User Manua I Page 14 of 32...

  • Page 15: Install The Customer Display

    Connect the USB cable to the USB port on the systems IO panel. Make sure the system is powered off. Please note the cable cover and the stand front cover (refer to Chapter 3-2 and 3-3) have to be removed before routing the cable. Element 455W User Manua I Page 15 of 32...

  • Page 16: Install The Second Display

    IO panel. Make sure the system is powered off. Please note the cable cover and the stand front cover (refer to Chapter 3-2 and 3-3) have to be removed before routing the cable. Element 455W User Manua I Page 16 of 32...

  • Page 17: Cash Drawer Installation

    BIT1 BIT0 Reserved Attribute CD1 Out CD1 In Reserved 7 6 5 4 3 2 1 0 Reserved Cash Drawer 1 pin input control Cash Drawer 1 pin output control Reserved Element 455W User Manua I Page 17 of 32...
  • Page 18 Check status ► The I/O address 482h bit3 =1 mean the Cash Drawer is opened or not exist. ► The I/O address 482h bit3 =0 mean the Cash Drawer is closed. Element 455W User Manua I Page 18 of 32...

  • Page 19: Specification

    (2-lane eDP/USB2.0/audio(R-CH)/power button/power) Expansion I/O Powered USB 1x powered USB 12V, 1x powered USB 24V Power Power adapter 65W/19V 120W/19V Peripherals (optional) 1 (USB) (blade type) Fingerprint 1 (USB) (blade type) Element 455W User Manua I Page 19 of 32...
  • Page 20 369 x 201 x 262mm Weight 4.3kg Windows 10 (64-bit), Windows IOT 10(64-bit) OS supported Linux: UbuntuAfter15.10, Fedora After 23, OpenSUSE42.1 no support (Kernel 4.1) * This specification is subject to change without prior notice. Element 455W User Manua I Page 20 of 32...

  • Page 21: Configuration

    6. Configuration 6.1 F34 Motherboard 6-1-1. Motherboard Layout CN1 CN2 FAN1 USB1 CN20 CN10 CN23 CN12 BAT1 CN15 CN16 CN14 CN13 CN17 CN18 JP5 RJ45-1 USB4 USB5 USB3 USB2 FEDP2 USB6 USB7 RJ11-1 FEDP1 COM1 COM2 PWR1 CN19 PWR2...
  • Page 22 USB-C data only connector (USB3.0/2.0) USB7 USB-C data only connector (USB2.0) COM1/COM2 COM port connector COM3 (CN17) Internal COM port connector BAT1 RTC Battery Speaker cable watt setting Audio Line-out setting Cash drawer power setting Element 455W User Manua I Page 22 of 32...
  • Page 23 Speaker Cable Watt Setting Function ▲ L=0.58m L=2.0m Audio Line-out Setting Function ▲Stereo Reserved (line-out) Cash Drawer Power Setting Function ▲ +19V +12V ▲ = Manufacturer Default Setting Jumper open Jumper short Element 455W User Manua I Page 23 of 32...
  • Page 24 1 3 5 7 9 1440 x 900 2 4 6 8 10 CN12 Jumper open 1 3 5 7 9 1920 x 1080 2 4 6 8 10 Jumper short Element 455W User Manua I Page 24 of 32...
  • Page 25 Panel Backlight Current Setting JP1 JP2 LED current 200mA 240mA 280mA 320mA 360mA 400mA CN10 420mA 460mA CN11 500mA CN12 Jumper open Jumper short Element 455W User Manua I Page 25 of 32...
  • Page 26 Select VGA/COM Power Configuration Ports and press <Enter> to go to display the available options. To enable the power, select COM1 ,COM2 Power setting and press <Enter>. Select Power and press <Enter>. Save the change by pressing F10. Element 455W User Manua I Page 26 of 32...

  • Page 27: F64U Motherboard

    6.2 F64U Motherboard 6-2-1. Motherboard Layout SW1/ CN1 CN2 FAN1 USB1 CN20 CN10 CN12 DIMM_A1 CN11 CN13 CN16 CN15 CN18 CN17 USB4 USB5 USB3 USB2 USB6 USB7 RJ11_1 FeDP1 CN19 FeDP2 RJ45_1 PWR1/ COM1 COM2 PWR2...
  • Page 28 USB6 USB-C full function connector USB7 USB-C data only connector COM1/COM2 COM port connector COM3 (CN17) Internal COM port connector Speaker cable watt setting Audio Line-out setting Cash drawer power setting Element 455W User Manua I Page 28 of 32...
  • Page 29 ▲ L=0.46m~2m (2W) M/B (2W) L=0.46m~2m (3W) M/B (3W) Audio Line-out Setting Function ▲Stereo Reserved (line-out) Cash Drawer Power Setting Function ▲ +19V +12V ▲ = Manufacturer Default Setting Jumper open Jumper short Element 455W User Manua I Page 29 of 32...
  • Page 30 1 3 5 7 9 1440 x 900 2 4 6 8 10 CN12 Jumper open 1 3 5 7 9 1920 x 1080 2 4 6 8 10 Jumper short Element 455W User Manua I Page 30 of 32...
  • Page 31 Panel Backlight Current Setting JP1 JP2 LED current 200mA 240mA 280mA 320mA 360mA 400mA CN10 420mA 460mA CN11 500mA CN12 Jumper open Jumper short Element 455W User Manua I Page 31 of 32...
  • Page 32 Select VGA/COM Power Configuration Ports and press <Enter> to go to display the available options. To enable the power, select COM1 ,COM2 Power setting and press <Enter>. Select Power and press <Enter>. Save the change by pressing F10. Element 455W User Manua I Page 32 of 32...
