Element 455W User Manual

Pos terminal
Hide thumbs Also See for 455W:

Advertisement

Quick Links

Download this manual

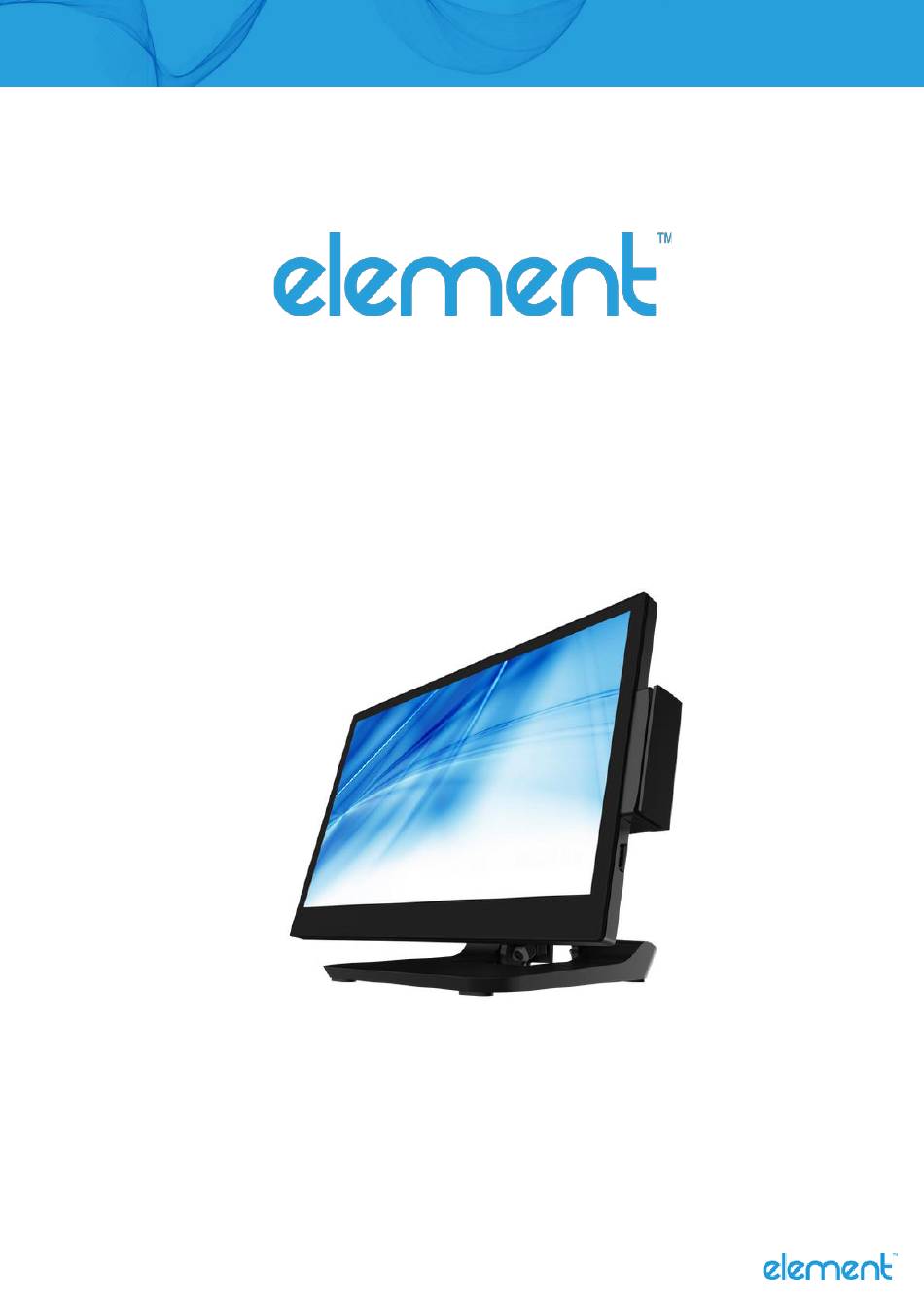

USER MAN
VERSION 1.0 July 2021
455W POS Terminal
User Manual
Element 455W User Manual Page 1 of
34

Advertisement

loading
Need help?

Need help?

Do you have a question about the 455W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Element 455W

Summary of Contents for Element 455W

  • Page 1 USER MAN VERSION 1.0 July 2021 455W POS Terminal User Manual Element 455W User Manual Page 1 of...
  • Page 2 7. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company. Element 455W User Manual Page 2 of...

  • Page 3: Battery Caution

    Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery according to the local disposal instructions. Safety Caution Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related legislation, peripherals shall be 4.7.3.2 “Materials for fire enclosure” compliant. Element 455W User Manual Page 3 of...

  • Page 4: Legislation And Weee Symbol

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Element 455W User Manual Page 4 of...
  • Page 5 Changes to the original user manual are listed below: Revision Description Date • Initial release July 2021 Element 455W User Manual Page 5 of...
  • Page 6 Element 455W User Manual Page 6 of...
  • Page 7 Element 455W User Manual Page 7 of...
  • Page 8 Element 455W User Manual Page 8 of...
  • Page 9 System b. Power adapter c. Power cord Note: Power cord will be supplied differently according to various region or country. Element 455W User Manual Page 9 of...
  • Page 10 MSR module b. Fingerprint module c. iButton module d. Customer display e. 11.6" 2 display Element 455W User Manual Page 10 of...
  • Page 11 Description Touch screen Fingerprint (option) MSR (option) Power button Stand Stand front cover Description VESA top cover SSD door Cable cover Element 455W User Manual Page 11 of...
  • Page 12 Cash drawer F64U Motherboard a b c Description FeDP (2 display) DC 19V in USB 2.0 x 2 USB Type C x 2 (USB3.0) USB 3.0 x 2 COM x 2 Cash drawer Element 455W User Manual Page 12 of...
  • Page 13 415 mm 369 mm 201 mm 217 mm Element 455W User Manual Page 13 of...
  • Page 14 IO panel to release it from the system. 2. Reverse the steps above to attach stand to the system. 1. Pull the cable cover upwards to release it from the system. Element 455W User Manual Page 14 of...
  • Page 15 3-1. 2. Remove the screw (x1) to release the SSD dummy cover. 3. Remove the screws (x2) and pull the M.2 SSD cards outwards as shown in the picture. Element 455W User Manual Page 15 of...
  • Page 16 2. Remove the dummy cover first. 3. Insert the MSR / Fingerprint / iButton module in place and fasten the screws (x2) on the back to secure the module. Element 455W User Manual Page 16 of...
  • Page 17 6. Connect the USB cable to the USB port on the systems IO panel. Make sure the system is powered off. * Please note the cable cover and the stand front cover (refer to Chapter 3-2 and 3-3) have to be removed before routing the cable. Element 455W User Manual Page 17 of...
  • Page 18 Make sure the system is powered off. * Please note the cable cover and the stand front cover (refer to Chapter 3-2 and 3-3) have to be removed before routing the cable. Element 455W User Manual Page 18 of...
  • Page 19 The Cash Drawer Controller use one I/O addresses to control the Cash Drawer. Register Location: 0x482h Attribute: Read / Write Size: 8bit BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0 Reserved Attribute CD1 Out CD1 In Reserved Element 455W User Manual Page 19 of...
  • Page 20 I 482 Check status ► The I/O address 482h bit3 =1 mean the Cash Drawer is opened or not exist. ► The I/O address 482h bit3 =0 mean the Cash Drawer is closed. Element 455W User Manual Page 20 of...
  • Page 21 DC jack 1 (4-pin w/lock) Expansion I/O 1x powered USB 12V, 1x powered USB 24V Powered USB Power Power adapter 65W/19V 120W/19V Peripherals (optional) 1 (USB) (blade type) Fingerprint 1 (USB) (blade type) Element 455W User Manual Page 21 of...
  • Page 22 369 x 201 x 262mm Weight 4.3kg Windows 10 (64-bit), Windows IOT 10(64-bit) OS supported Linux: UbuntuAfter15.10, Fedora After 23, OpenSUSE42.1 no support (Kernel 4.1) * This specification is subject to change without prior notice. Element 455W User Manual Page 22 of...
  • Page 23 DIMM_A1 Element 455W User Manual Page 23 of...
  • Page 24 USB-C data only connector (USB3.0/2.0) USB7 USB-C data only connector (USB2.0) COM1/COM2 COM port connector COM3 (CN17) Internal COM port connector BAT1 RTC Battery Speaker cable watt setting Audio Line-out setting Cash drawer power setting Element 455W User Manual Page 24 of...
  • Page 25 Function ▲ L=0.58m L=2.0m Function ▲Stereo Reserved (line-out) Function ▲ +19V +12V ▲ = Manufacturer Default Setting Jumper open Jumper short Element 455W User Manual Page 25 of...
  • Page 26 2 4 6 8 10 1 3 5 7 9 1440 x 900 2 4 6 8 10 CN12 1 3 5 7 9 1920 x 1080 2 4 6 8 10 Jumper short Jumper open Element 455W User Manual Page 26 of...
  • Page 27 1 3 5 7 420mA CN10 2 4 6 8 1 3 5 7 460mA 2 4 6 8 CN11 1 3 5 7 500mA 2 4 6 8 CN12 Jumper open Jumper short Element 455W User Manual Page 27 of...
  • Page 28 3. Select VGA/COM Power Configuration Ports and press <Enter> to go to display the available options. 4. To enable the power, select COM1, COM2 Power setting and press <Enter>. Select Power and press <Enter>. Save the change by pressing F10. Element 455W User Manual Page 28 of...
  • Page 29 Element 455W User Manual Page 29 of...
  • Page 30 USB3.0 connector USB2/USB3 USB-C full function connector USB6 USB7 USB-C data only connector COM port connector COM1/COM2 COM3 (CN17) Internal COM port connector Speaker cable watt setting Audio Line-out setting Cash drawer power setting Element 455W User Manual Page 30 of...
  • Page 31 ▲ L=0.46m~2m (2W) M/B (2W) L=0.46m~2m (3W) M/B (3W) Audio Line-out Setting Function ▲Stereo Reserved (line-out) Cash Drawer Power Setting Function ▲ +19V +12V ▲ = Manufacturer Default Setting Jumper open Jumper short Element 455W User Manual Page 31 of...
  • Page 32 2 4 6 8 10 1 3 5 7 9 1440 x 900 2 4 6 8 10 CN12 1 3 5 7 9 1920 x 1080 2 4 6 8 10 Jumper short Jumper open Element 455W User Manual Page 32 of...
  • Page 33 1 3 5 7 420mA CN10 2 4 6 8 1 3 5 7 460mA 2 4 6 8 CN11 1 3 5 7 500mA 2 4 6 8 CN12 Jumper open Jumper short Element 455W User Manual Page 33 of...
  • Page 34 3. Select VGA/COM Power Configuration Ports and press <Enter> to go to display the available options. 4. To enable the power, select COM1, COM2 Power setting and press <Enter>. Select Power and press <Enter>. Save the change by pressing F10. Element 455W User Manual Page 34 of...
