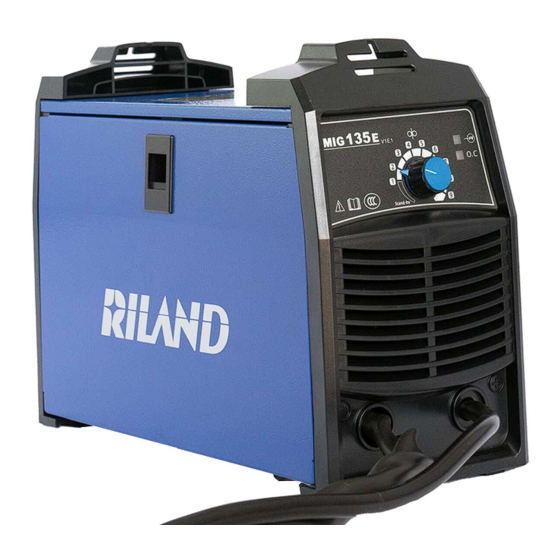

- Page 1 INVERTER WELDER MIG 135E WELDING MACHINE USER MANUAL...
- Page 2 Welcome to a better way of welding! For your own and other people’s safety, please read the manual carefully before operating. And the user manual must always be available near the welding machine. Disclaimer and Warning Thank you for purchasing our products. The content mentioned in this article concerns your safety and legitimate rights and responsibilities.
-
Page 3: Table Of Contents
CONTENTS 1 Safety Guidelines and Precautions ......................4 2 Overview ..............................8 2.1 Product Introduction ........................8 2.2 Technical Specifications ....................... 9 3 Installation ............................. 10 3.1 Install the Output Cable ......................10 3.2 Install Accessories - braces (optional) ..................10 4 Operating Functions .......................... -
Page 4: Safety Guidelines And Precautions
1 Safety Guidelines and Precautions Security Definitions It indicates that ignoring safety warnings could result in a major accident, or even death or serious injury. It indicates that ignoring safety warnings could result in minor injuries or property damage. It indicates that ignoring safety warnings could result in equipment failure or damage. - Page 5 Operational Safety Guidelines Electrical Shock ◆ Grounded all working materials. ◆ Never touch ‘live’ electrical parts. ◆ Always repair or replace worn or damaged parts. ◆ Wearing dry insulated boots, and dry leather gloves. ◆ Disconnect power source before performing any maintenance or service. ◆...
- Page 6 Welding sparks can cause fire or explosion ◆ Do not carry out welding operations in degreasing, cleaning and spraying areas. ◆ Do not weld/cut gas-filled pipes, sealing grooves (boxes) and other devices, otherwise explosions or fires are likely to occur. ◆...
- Page 7 Noise produced during welding can easily cause hearing loss ◆ In order to avoid the harm of noise to you and others, please wear the prescribed protective equipment. Matters needing attention in hoisting ◆ The power source with strap or hand is prohibited from using strap or hand for lifting.
-
Page 8: Overview
2 Overview Product Introduction The welding machine applies the most advanced inversion technology in the world. The principle of inversion is to transform the power frequency of 50Hz/60Hz into direct current and invert it into high frequency through high-power device, then perform voltage-drop and commutation with the output high-power D.C power supply via Pulse Width Modulation (PWM). -
Page 9: Technical Specifications
Technical Specifications Type MIG 135E Item 1 phases 1 phases 1 phases 1 phases Power supply（V） 120V±15% 220V±15% 230V±15% 240V±15% Frequency（Hz） 50/60 50/60 50/60 50/60 No-load voltage(V) Rated input current(A) 21.4 13.4 Output current range (A) 45 - 90 45-90... -
Page 10: Installation
3 Installation Install the Output Cable The machine is flux-cored welding. The torch and earth clamp are already fixed well in the machine. The welding equipment is equipped with power voltage compensation device. It keeps the machine work normally when power voltage fluctuating ±15% of rated voltage. When using long cable, in order to reduce voltage drop, big section cable is suggested. -
Page 11: Operating Functions
4 Operating Functions Control Panel and label The panel components are described in the following table. Icons Name Description Used to adjust welding current. The power source is synergic designed, After the current is configured, the machine automatically matches the Adjusting Knob feeding speed. -
Page 12: Input/Output Panel
Input/Output Panel Output Terminals Name Negative output terminal Positive output terminal Input Cable The I determines the input cable, correct plug and input current required for each 1eff machine. Max. effective supply current (I ) Input cable size 1eff ≤10 A 1.5-2.5 mm 1eff ≤16 A... -
Page 13: Operation
5 Operation Instructions of Operation Steps Steps Description After connecting the power supply, the machine is in standby state when 1 Connect the power the pointer points to “stand-by”, and the power indicator lights on when supply the pointer is adjusted to 1 or more. The welding machine is installed with internal wire feeder. -
Page 14: Environment And Problems
6 Environment and Problems Environment Note: The power source should not be used in rain or snow environment. The recommended external environment for welding is as follows: ◼ Please place the power source in a horizontal position. The inclination of the power source shall not exceed 10°. -
Page 15: Problems During Welding
Problems During Welding Fittings, welding materials, environment factor, supply powers maybe have something to do with welding. User must try to improve welding environment. Problems Solutions 1. Examine whether grounding wire clamp contacts with the work pieces well. Arc starting is difficult and easy to break. -
Page 16: Daily Maintenance And Checking
7 Daily Maintenance and Checking Daily Maintenance In maintenance of the unit, take into consideration the rate of use and the environment it is used in. When the unit is used properly and serviced regularly you will avoid unnecessary disturbances in use and production. ◼... - Page 17 WELDING TORCH unstable arc, please change. ➢ Block caused by dirt in the Reason of poor wire sending and tube, and the remains of the unstable arc, (use kerosene to wipe or wire plating lay. change new one.) 1.Pyrocondensation tube broken, ➢...
-
Page 18: Trouble Shooting
8 Trouble Shooting IMPORTANT: Only authorised repair agents with valid certifications should carry out repairs and internal servicing. Fault symptom Remedy 1. Make sure the power cord is connected. 2. Check if electric wire net is in work. 3. Some of heat-variable resistors(four) of power panel is damaged, when it happen, general DC14V relay is open or connectors are poor contact. - Page 19 Fault symptom Remedy again: 1) If abnormal indicator is still lit, some of fieldistor of IGBT board are damaged, find out and replace them with same model. 2) If abnormal indicator is not lit: a. Maybe transformer of middle board is damaged, measure inductance volume and Q volume of main transformer by inductance bridge.
-
Page 20: Appendix A Circuit Diagram
4.7nF/AC250V +150V AC100V 60V65 STTH2002CT 1nF/1KV 4.7UF/400V 35A/600V 4.7nF/AC250V STTH2002CT C132 AC100V 4.7nF/AC250V 475/400V +15V OUT + 1uF/275VAC ： 4.7nF/AC250V EE-25-2 200:1 DC12V 60V65 D2 SUF4007 2.2nF/3KV 10nF/AC250V 1nF/1KV VGND 1nF/1KV 10nF/AC250V OUT - CON3 20uH * 1nF/1KV 2.2nF/3KV RN0107-01A_Power.sch VGND VGND POWER EN... - Page 21 ⚫ MIG 135E (120V)
- Page 22 ⚫ MIG 135E (230V/240V)
