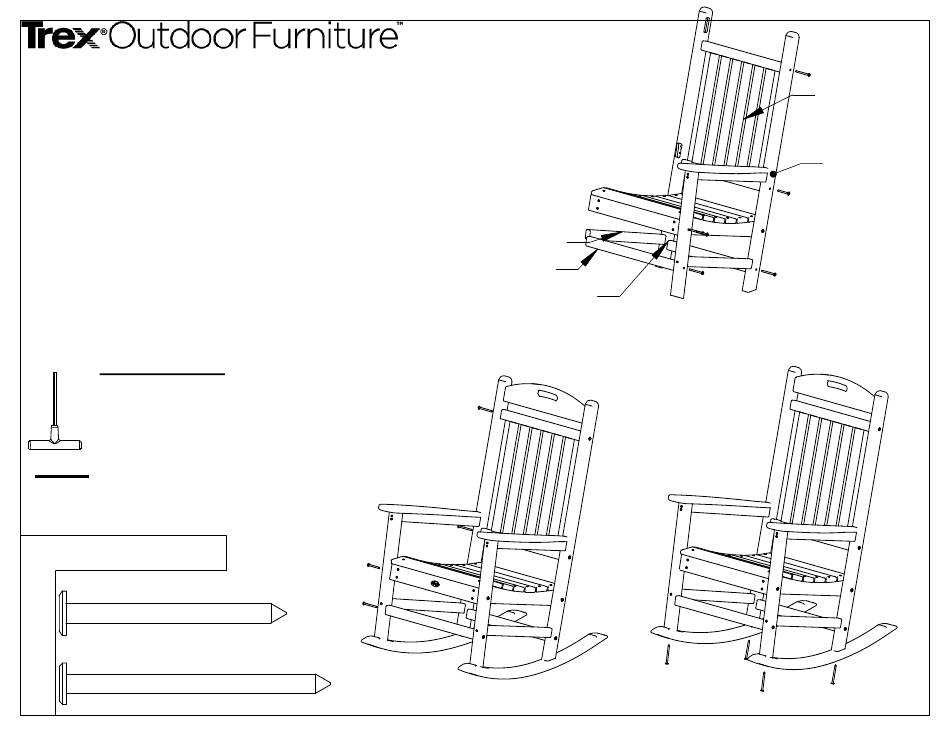

Assembly Instructions
Model: TXR100
__(1) Hardware pack
__(2) Sideframes
__(2) Rocker bottoms
__(1) Back
__(1) Seat
__(1) Long brace
__(1) Short brace
__(1) Head piece
TOOLS NEEDED
4mm T-handle: INCLUDED
4mm hex, straight,
for drill : INCLUDED
Qty.
Description
A - .27 X 2-1/2 SOCKET WAFER A
4
B - .27 X 3 SOCKET WAFER A
12
Step 1
Attach long brace, short brace and back
using (4) 14x3" screws.
Attach Seat using (2) 14x2 1/2" screws
Note: front of seat is wider
Step 2
Insert head piece into top of post
Repeat step 1 on other side
ALL HARDWARE IS COATED STAINLESS STEEL
Seat frame
Long brace
Short brace
Step 3
Attach rocker bottomwith (4) 14x3" screws
Head piece
B
Back frame
Side frame
B
A
A
B
B
2/21/2012
