TREX Deck Lighting Site Preparation And Planning

TREX DECKLIGHTING™
®
Site Preparation and Planning
Parts
A
B
x2 x2
x2 x2
Post Cap deck rail
light light

tools Needed

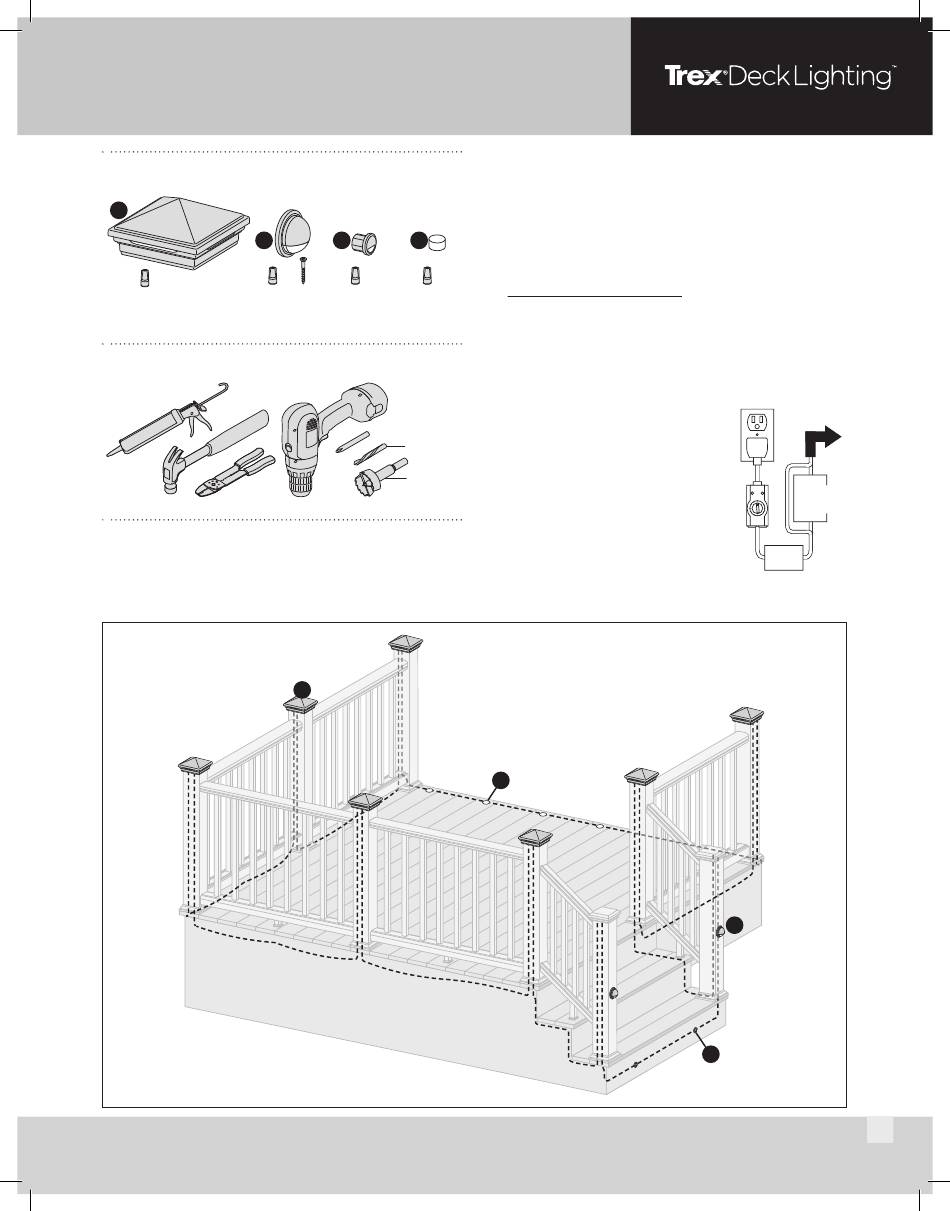

Lighting and Wiring Overview
Note: It is recommended to install
wiring before decking and railing have been installed.
Do Not run wires between joists and deck boards.
Have Questions?
1–800–BUY–TREX
C D
x2 x2 x2 x2 x2 x2
riser recessed
light deck light
1/4"
(0.6 cm)
1"
(2.5 cm)
A
Note: Construction methods are always improving. Please ensure you
have the most up-to-date installation instructions by visiting:

General Information

» alWaYs consult local codes before beginning a project.
» A maximum of 60 lights can be powered by one 60W
transformer. If your project requires more than 60
lights, contact 1-800-BUY-TREX for transformer sizing.
» Straight runs over 100' (30.5 m) may require larger wire
such as 16 or 14 gauge.
» Use trex transformer only. Use of any other
transformer voids warranty.

Planning

Note: When designing your deck, plan locations of lights,
power supply, timer, and dimmer. These should be accessible
for service.
1. The dimmer remote will work
in a 30' (9 m) radius of the unit.
2. The dimmer must be installed
in a dry location. Keep dimmer
remote ID # in a safe place in
case a replacement remote is
needed.
3. The timer must be installed vertically
with the receptacle facing downwards
and not reaching ground level.
The timer must be in view of the sun
to use the dusk/dawn feature.
Note: Avoid railing brackets and locations for
deck rail lights when running wires up posts.
D
trex.com
To Lights
GFCI
Outlet
Dimmer
Timer
(Optional)
Transformer
B
C
1
TDL-1110
